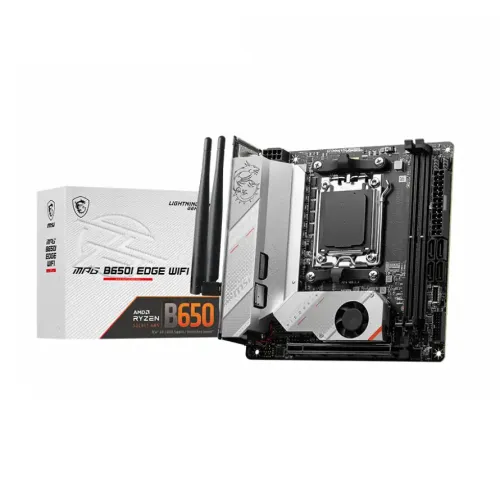

MSI MPG B650I EDGE WIFI DDR5 AMD AM5 Mini-ITX Motherboard

Motherboard • Brand: MSI • Aggregating live prices from leading computer stores in Bangladesh.

Status
In Stock
3 listings tracked
Lowest Deal 30,000 Best Deal
Price Range Single price listing
MSI MPG B650I EDGE WIFI DDR5 AMD AM5 Mini-ITX Motherboard

Product Description

Engineered by MSI, this motherboard is designed for **AM5** socket processors, featuring a **Mini-ITX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. You can buy this component starting from **30,000 ৳**, compared dynamically across 3 major computer shops.
Part ID: #CAN-01366 Last Updated: 2 days ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech MSI MPG B650I EDGE WIFI DDR5 AMD AM5 Mini-ITX Motherboard
In Stock Call for Price 3 hours ago
PC House MSI MPG B650I EDGE WIFI DDR5 AMD AM5 Mini-ITX Motherboard
In Stock Call for Price 2 hours ago
UCC MSI MPG B650I EDGE WIFI AM5 Mini-ITX Motherboard
Check Stock 30,000 3 hours ago

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset AMD B650
Form Factor Mini-ITX 170mmx170mm
Audio Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel

Expansion Slots

PCI 1x PCI-E x16 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU)

Memory

Type DDR5
Slots 2 DIMMs
Supported Memory Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max. speed up to 6600+ MHz • 1DPC 2R Max. speed up to 6000+ MHz Support Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Maximum Memory 64GB

Graphics

Graphics 1x HDMI Support HDMI 2.1 FRL, maximum resolution of 4K 120Hz

Connector & Ports

HDMI 1x HDMI
USB (s) 2x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s) Realtek RTL8125BG 2.5Gbps LAN
Wireless Communication module AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2
Supported Storage 2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G port
RAID Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio Audio Connectors
Internal I/O Ports 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 2x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C

Others

Special Features 4x EZ Debug LED

Warranty Information

Manufacturing Warranty 3 Years

Key Features

Model MPG B650I EDGE WIFI
Supported CPU Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM 2x DDR5, up to 6600+(OC) MHz
Graphics Output 1x HDMI
Features 2.5G LAN and AMD Wi-Fi 6E Solution
Part ID: #CAN-01366 Last Updated: 2 days ago
The MSI MPG B650I EDGE WIFI Motherboard supports AMD's Ryzen 8000 & 7000-series processors with up to 16 Zen 4 cores as well as two dual-channel DDR5 memory, with a Maximum Memory Capacity of up to 64GB and a bus speed of up to 6600+(OC) MHz. It comes with four SATA and two M.2 interfaces that allow you to create an array of storage drives for your games, media, and other important applications. It is equipped with a single PCIe 4.0 x16 slot. The back panel provides you with ample connectivity options, giving you two USB-A 3.2 Gen 1 and three USB-A 3.2 Gen 2 ports with data transfer speeds up to 5 and 10 Gb/s, respectfully, suitable for a wide range of peripherals such as capture cards, microphones, and more. The motherboard is made of a 10-layer PCB made of 2oz thickened copper and server-grade level material. The rear I/O panel now offers easy ways of directly entering the safe boot, a one-click toggle for all RGB lights, and directly activating Turbo mode. The MSI MPG B650I EDGE WIFI offers you ample connectivity options, giving you seven USB-A 3.2 Gen 1 and 2 ports with data transfer speeds up to 5 and 10 Gb/s, respectfully, suitable for a wide range of peripherals such as capture cards, microphones, and more. A single USB-C 3.2 Gen 2x2 port offers up to 20 Gb/s speeds, suitable for audio arrays. The MAG B650 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C. The MSI MPG B650I EDGE WIFI comes with 3 years of warranty.
