Product Description

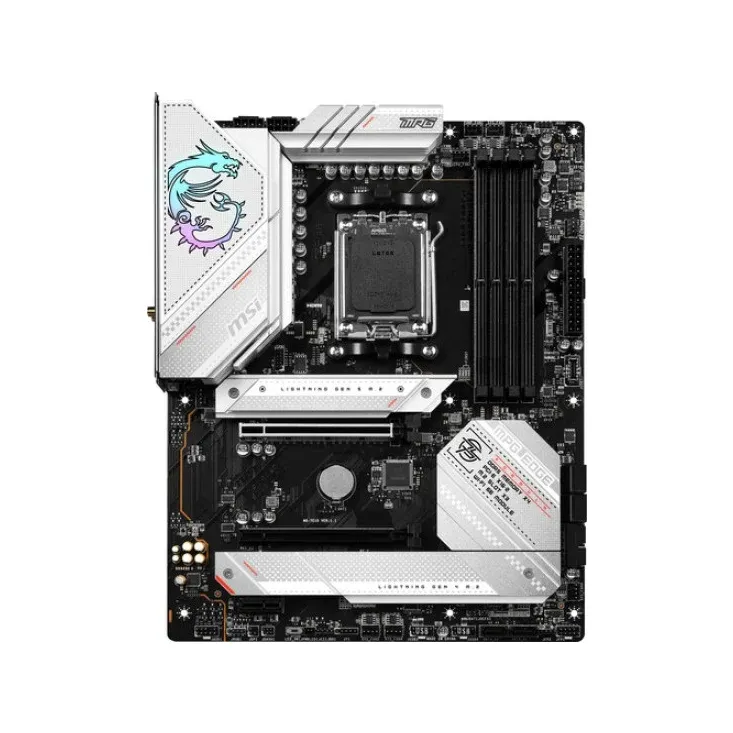

Engineered by MSI, this motherboard is designed for **AM5** socket processors, built on the **B650** chipset, featuring a **ATX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **33,210 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01829
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek® RTL8125BG 2.5Gbps LAN
SKU
MPG B650 EDGE WIFI
USB
2x USB 2.0 (Rear)<br>
4x USB 2.0 (Front)<br>
4x USB 5Gbps Type A (Rear)<br>
2x USB 5Gbps Type A (Front)<br>
3x USB 10Gbps Type A (Rear)<br>
1x USB 10Gbps Type C (Front)<br>
1x USB 20Gbps Type C (Rear)
HDMI
1x HDMI™<br>
Support HDMI™ 2.1 HDR, maximum resolution of 4K 60Hz*<br>
1x DisplayPort<br>
Audio
Realtek® ALC4080 Codec<br>
7.1-Channel USB High Performance Audio<br>
Supports up to 32-Bit/384 kHz playback on front panel
Brand
MSI
Model
MPG B650 EDGE WIFI
PCI-E
2x PCI-E x16 slot<br>
• Supports x16/x2 (For Ryzen™ 9000/ 7000 Series processors)<br>
• Supports x8/x2 (For Ryzen™ 8700/ 8600/ 8400 Series processors)<br>
• Supports x4/x2 (For Ryzen™ 8500/ 8300 Series processors)<br>
1x PCI-E x1 slot<br>
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)<br>
PCI_E2 Gen PCIe 4.0 supports up to x2 (From Chipset)<br>
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)<br>
Slots
3x M.2<br>
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices<br>
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices<br>
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices<br>
6x SATA 6G<br>
• The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor
2x PCI-E x16 slot<br>
• Supports x16/x2 (For Ryzen™ 9000/ 7000 Series processors)<br>
• Supports x8/x2 (For Ryzen™ 8700/ 8600/ 8400 Series processors)<br>
• Supports x4/x2 (For Ryzen™ 8500/ 8300 Series processors)<br>
1x PCI-E x1 slot<br>
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)<br>
PCI_E2 Gen PCIe 4.0 supports up to x2 (From Chipset)<br>
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)<br>
Stock
In Stock
Wi-Fi
AMD Wi-Fi 6E<br>
The Wireless module is pre-installed in the M.2 (Key-E) slot<br>
Supports MU-MIMO TX/RX<br>
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands<br>
Supports 802.11 a/ b/ g/ n/ ac/ ax<br>
<br>
Supports Bluetooth® 5.3**<br>
<br>
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.<br>
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Socket
Socket AM5
Chipset
AMD B650
Warranty
3 Years
Form Factor
ATX
Memory Type
DDR5
Display Port
Support DP 1.4 HBR3, maximum resolution of 8K 60Hz*<br>
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Supported CPU
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Memory Capacity
256GB
Supported Memory
4x DDR5, Maximum Memory Capacity 256GB <br>
Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz <br>
Max. overclocking frequency: <br>
• 1DPC 1R Max speed up to 7800+ MHz <br>
• 1DPC 2R Max speed up to 6400+ MHz <br>
• 2DPC 1R Max speed up to 6400+ MHz <br>
• 2DPC 2R Max speed up to 5400+ MHz <br>
Supports Dual-Channel mode <br>
Supports non-ECC, un-buffered memory <br>
Supports AMD EXPO™
Internal I/O Ports
1x Power Connector(ATX_PWR)<br>
2x Power Connector(CPU_PWR)<br>
1x CPU Fan<br>
1x Pump Fan<br>
6x System Fan<br>
2x Front Panel (JFP)<br>
1x Chassis Intrusion (JCI)<br>
1x Front Audio (JAUD)<br>
1x Tuning Controller connector(JDASH)<br>
2x Addressable V2 RGB LED connector (JARGB_V2)<br>
2x RGB LED connector(JRGB)<br>
1x TPM pin header(Support TPM 2.0)<br>
4x USB 2.0 ports<br>
2x USB 5Gbps Type A ports<br>
1x USB 10Gbps Type C ports<br>
