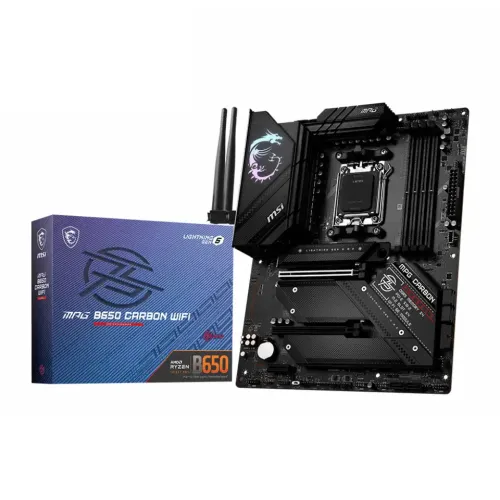

MSI MPG B650 CARBON WIFI DDR5 AMD AM5 ATX Motherboard

Product Description

Unlock Your Gaming Potential with the MSI MPG B650 CARBON WIFI Motherboard

Designed for the most demanding gamers and content creators, the MSI MPG B650 CARBON WIFI motherboard is built to deliver lightning-fast performance and seamless connectivity. With its support for AMD Ryzen 8000 & 7000 Series processors and up to 16 Zen 4 cores, you can tackle even the most complex tasks with ease.

Key Features and Benefits

  • Supports AMD Ryzen 8000 & 7000 Series processors with up to 16 Zen 4 cores
  • 4x DDR5 slots with a maximum memory capacity of up to 128GB and bus speed of up to 6600+(OC) MHz
  • 2x PCIe 4.0 x16 slots for graphics cards and high-speed storage
  • Realtek ALC4080 codec for high-quality 7.1-channel audio
  • 2.5G LAN and AMD Wi-Fi 6E solution for fast and reliable networking
  • 4x M.2 slots for high-speed storage and SSDs

Advanced Technologies for Enhanced Performance

The MSI MPG B650 CARBON WIFI motherboard features several advanced technologies designed to enhance performance and cooling. The motherboard's 6-layer PCB is made of 2oz thickened copper and server-grade level material, delivering a stable and efficient power delivery system. The M.2 Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster. Additionally, the motherboard's Core Boost technology combines MSI's premium layout and optimized power design for faster and undistorted current delivery to the CPU.

Part ID: #CAN-01192 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech MSI MPG B650 CARBON WIFI DDR5 AMD AM5 ATX Motherboard
In Stock Call for Price 1 week ago
Creatus Computer MSI MPG B650 CARBON WIFI DDR5 AMD AM5 ATX Motherboard
In Stock Call for Price 5 hours ago
PC House MSI MPG B650 CARBON WIFI DDR5 AMD AM5 ATX Motherboard
In Stock Call for Price 1 month ago

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Supports AMD Ryzen 8000 & 7000 Series Desktop Processors Socket AM5
Chipset AMD B650
Form Factor ATX 243.84mmx304.8mm
Audio Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel

Expansion Slots

PCI 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 4.0 supports up to x4 (From CPU) PCI_E3 PCIe 3.0 supports up to x1 (From Chipset)

Memory

Type DDR5
Slots 4 DIMMs
Supported Memory Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max. speed up to 6600+ MHz • 1DPC 2R Max. speed up to 6000+ MHz • 2DPC 1R Max. speed up to 6400+ MHz • 2DPC 2R Max. speed up to 4000+ MHz Support Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Maximum Memory 128GB

Graphics

Graphics 1x HDMI 1x DisplayPort Support HDMI 2.1, maximum resolution of 4K 60Hz Supports DP1.4, maximum resolution of 4K 60Hz

Connector & Ports

HDMI 1x HDMI
Display Port (s) 1x DisplayPort
USB (s) 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 7x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s) Realtek RTL8125 2.5Gbps LAN
Wireless Communication module AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2
Supported Storage 4x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices 6x SATA 6G port
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio Audio Connectors
Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)

Others

Special Features 4x EZ Debug LED 1x EZ LED Control switch

Warranty Information

Manufacturing Warranty 3 Years

Key Features

Model MPG B650 CARBON WIFI
Supported CPU Ryzen 8000/ 7000 Series Processors for Socket AM5
Supported RAM 4x DDR5, up to 6600+(OC) MHz
Graphics Output 1x HDMI, 1x Display Port
Features 2.5G LAN and AMD Wi-Fi 6E Solution
