Product Description

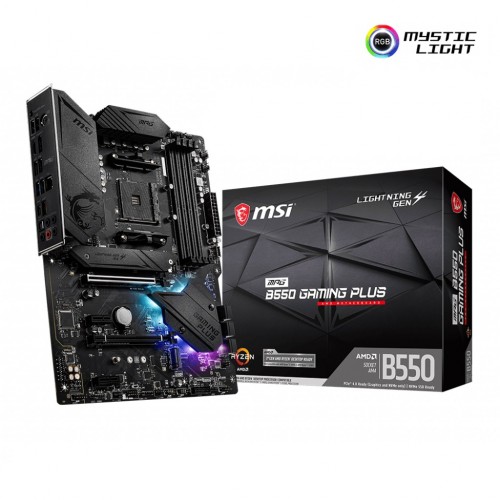

Unleash Your Gaming Potential with the MSI MPG B550 Gaming Plus Motherboard
Designed for serious gamers and PC enthusiasts, the MSI MPG B550 Gaming Plus motherboard delivers exceptional performance, cutting-edge features, and sleek design. With its robust build and advanced technologies, this motherboard is the perfect choice for those seeking to upgrade their gaming rig and take their gaming experience to the next level.
Key Features and Benefits
- Supports AMD Ryzen 5000/4000G Series and Ryzen 3rd Generation Processors
- 1x PCIe 4.0/3.0 x16 slot and 2x PCIe 3.0 x1 slots for expanded graphics and storage capabilities
- Dual-channel memory architecture with 4x DDR4 memory slots and support for up to 128GB of memory
- 2x M.2 slots (Key M) for ultra-fast storage and 6x SATA 6Gb/s ports for additional storage options
- Realtek 8111H Gigabit LAN and Realtek ALC892 Codec 7.1-Channel High Definition Audio
- Supports 2-Way AMD CrossFire Technology and 2x USB 3.2 Gen 2 10Gbps ports for fast data transfer
Advanced Technologies and Cooling Features
The MSI MPG B550 Gaming Plus motherboard boasts several advanced technologies and cooling features that enhance performance and stability. With its robust power delivery system, extended PWM heatsink, and enhanced circuit design, this motherboard is capable of handling even the most demanding workloads. Additionally, the motherboard features the latest Lightning Gen 4 M.2, which provides up to 64 Gb/s transfer speed, making it an ideal solution for demanding users.
Part ID: #CAN-01273
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
MSI MPG B550 Gaming Plus AM4 ATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
Computer Village
MSI MPG B550 Gaming Plus AM4 ATX Motherboard
|
In Stock | 17,000 | 4 hours ago | |
|
Sell Tech
MSI MPG B550 Gaming Plus AM4 ATX Motherboard
|
Check Stock | Call for Price | 4 hours ago | |
|
Creatus Computer
MSI MPG B550 Gaming Plus AM4 ATX Motherboard
|
Check Stock | 15,600 | 4 hours ago | |
|
PC House
MSI MPG B550 Gaming Plus AM4 ATX Motherboard
|
Check Stock | 16,500 | 4 hours ago | |
|
TechLand BD
MSI MPG B550 GAMING PLUS MOTHERBOARD
|
Check Stock | 17,000 | 4 hours ago | |
|
UCC
MSI MPG B550 GAMING PLUS MOTHERBOARD
|
Check Stock | 17,500 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset
AMD B550 Chipset
Form Factor
ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Expansion Slots
PCI
1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2x PCIe 3.0 x1 slots
M.2 Socket
2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
Memory
Type
Dual channel memory architecture
Slots
4 x DDR4 memory slots
Supported Memory
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733 / 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHz 1DPC 2R max speed 3866 MHz 2DPC 1R max speed 4000 MHz 2DPC 2R max speed 3600 MHz Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Maximum Memory
128GB
Graphics
Graphics
1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz Supports 2-Way AMD CrossFire Technology
Max Shared Memory
16 GB
Connector & Ports
HDMI
1x HDMI maximum resolution of 4096x2160 @24Hz
Display Port (s)
1x DisplayPort maximum resolution of 4096x2160 @60Hz
USB (s)
AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s)
1x Realtek 8111H Gigabit LAN controller
Supported Storage
AMD B550 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
Audio
Realtek ALC892 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Internal I/O Ports
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper
TPM (Trusted Platform Module )
1xTPM module connector
Warranty Information
Manufacturing Warranty
03 Years Warranty
Key Features
Model
MSI MPG B550 Gaming Plus
Part ID: #CAN-01273
Last Updated: 1 month ago
