Product Description

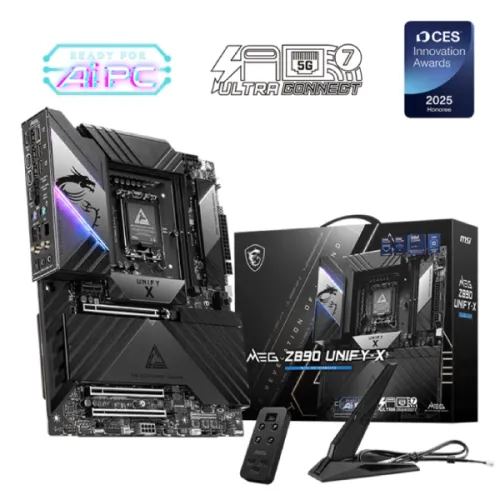

MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard
Unlock Unparalleled Performance for Demanding Applications
The MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard is designed for power users who demand cutting-edge performance and seamless connectivity. With its robust feature set and exceptional build quality, this motherboard is ideal for high-end gaming, multimedia production, and professional applications.
Key Features and Benefits
- Supports Intel Core Ultra Processors (Series 2) and Intel Z890 chipset
- DDR5 memory with a maximum capacity of 128GB and speeds up to 9600 MT/s (OC)
- Multiple PCIe slots, including three PCIe x16 slots (Gen 5.0 and Gen 4.0), one PCIe x1, and six M.2 slots
- Two Type-C DisplayPort with Thunderbolt 4 connectors for 8K monitors and high-resolution output at up to 120Hz
- Intel Killer E5000B 5G LAN and pre-installed Intel Killer BE1750x Wi-Fi 7 module for fast networking
Proprietary Technologies and Advanced Features
The MSI MEG Z890 UNIFY-X Motherboard features several advanced technologies and features, including:
Realtek ALC4080 Codec supports 7.1-channel USB High-Performance Audio at 32-bit/384 kHz
Intel XMP 3.0 and memory overclocking for enhanced memory performance
RAID Support for both SATA and M.2 NVMe devices, ideal for high-capacity storage and data transfer
Intel Killer E5000B 5G LAN and Intel Killer BE1750x Wi-Fi 7 module for fast and reliable networking
Part ID: #CAN-01176
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Ultra Technology
MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard
|
In Stock | 85,000 | 4 hours ago | |
|
Skyland BD
MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard
|
In Stock | 85,000 | 4 hours ago | |
|
Star Tech
MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard
|
In Stock | 86,500 | 1 week ago | |
|
PC House
MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard
|
In Stock | 86,990 | 5 hours ago | |
|
Nexus Computer
MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard
|
In Stock | 87,000 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports Intel Core Ultra Processors (Series 2)
Chipset
INTEL Z890
Form Factor
ATX (243.84mmx304.8mm)
Audio
Realtek ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Expansion Slots
PCI
3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) * PCI_E2 slot will run at x8 speed and PCI_E3 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in M2_4 slot. ** PCI_E4 will be unavailable when installing M.2 SSD in the M2_3 slot.
M.2 Socket
6x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_6 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices * M2_4 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment. ** SATA3 will be unavailable when installing M.2 SATA SSD in the M2_5 slot. *** Please refer to the manual for M.2 SSD heatsink restrictions.
Memory
Type
DDR5
Slots
2x DDR5 UDIMM, Maximum Memory
Supported Memory
Support 9600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9600+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s
Maximum Memory
128GB
Graphics
Graphics
2x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* * Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Connector & Ports
Display Port (s)
2x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
USB (s)
4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 8x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) * To achieve USB PD 60W fast charging for JUSBC1, the PD_PWR1 connector needs to be connected to the power supply unit.
LAN Port (s)
1x Intel® Killer E5000B 5G LAN
Wireless Communication module
Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
Supported Storage
6x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_6 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices 6x SATA 6G * M2_4 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment. ** SATA3 will be unavailable when installing M.2 SATA SSD in the M2_5 slot. *** Please refer to the manual for M.2 SSD heatsink restrictions.
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio
1x Front Audio (JAUD)
Internal I/O Ports
1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) V-check point 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
LED FEATURE 4x EZ Debug LED 1x EZ Digit Debug LED
Warranty Information
Manufacturing Warranty
3 year warranty
Key Features
Model
MEG Z890 UNIFY-X
Supported CPU
Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM
2x DDR5, Max 128GB 9600 - 6400 (OC) MT/s
Graphics Output
2x Type-C DisplayPort
Features
6x M.2, Intel Wi-Fi 7
