Product Description
Engineered by MSI, this motherboard is featuring a **E-ATX** form factor and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. This item is currently out of stock or unavailable at our tracked local computer stores in Bangladesh.
Part ID: #CAN-02184
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Basic Information
Chipset
INTEL Z890
Type
Memory Type: DDR5
BASIC INFORMATION
Supported CPU
Supports Intel Core Ultra Processors (Series 2)
Graphics
2x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* * Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Form Factor
E-ATX (277mmx304.8mm)
Audio
1x Front Audio (JAUD)
Other Features
Special Features
LED FEATURE 1x Dynamic Dashboard III 1x EZ Digit Debug LED 1x EZ LED Control switch
Expansion Slots
PCI
2x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) * PCI_E1 slot will run at x8 speed and PCI_E2 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in M2_6 slot. ** PCI_E3 will be unavailable when installing M.2 SSD in the M2_5 slot.
M.2 Socket
8x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_6 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 2280/2242 devices M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices
Memory
Slots
4x DDR5 UDIMM, Maximum Memory
Supported Memory
Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s
Maximum Memory
256GB
Connector & Ports
Display Port
2x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
Wireless Communication module
Intel® Killer BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM
LAN Port (s)
1x Marvell® AQC113CS 10Gbps LAN 1x Intel® Killer™ E5000B 5G LAN
USB (s)
4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 8x USB 10Gbps Type A (Rear) 5x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) * To achieve USB PD 60W fast charging for JUSBC2, the PD_PWR1 connector needs to be connected to the power supply unit.
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Supported Storage
8x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_6 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 2280/2242 devices 4x SATA 6G M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices * Supports onboard 6x M.2 slots and additional 2x M.2 slots via M.2 card. ** M.2_6 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment. *** PCI_E1 slot will run at x8 speed and PCI_E2 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in the M2_6 slot. **** Please refer to the manual for M.2 SSD heatsink restrictions.
Internal I/O Ports
1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Combo Fan (Pump_Sys Fan) 7x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) V-check point 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
WARRANTY INFORMATION
Manufacturing Warranty
3 year warranty
Part ID: #CAN-02184
Last Updated: 2 days ago

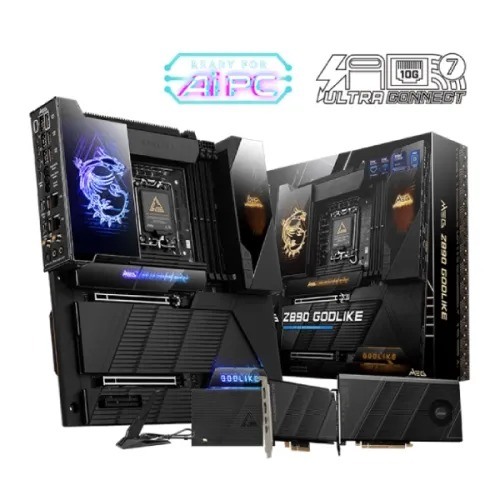

MSI MEG Z890 GODLIKE LGA 1851 E-ATX MotherboardThe MSI MEG Z890 GODLIKE is a premium E-ATX motherboard engineered for enthusiasts seeking unparalleled performance and cutting-edge features. Designed to support Intel's latest Core Ultra Processors (Series 2) with the LGA 1851 socket, it offers a comprehensive suite of advanced technologies.Key Features:Processor Support: Compatible with Intel® Core™ Ultra Processors (Series 2) utilizing the LGA 1851 socket. Memory: Features four DDR5 DIMM slots, supporting up to 192GB of memory, with overclocking capabilities reaching speeds up to 8800+ MHz. Power Delivery: Equipped with a robust 24-phase Duet Rail Power System, ensuring stable and efficient power delivery for high-performance computing. Expansion Slots:Three PCIe 5.0 x16 slots.One PCIe 5.0 x1 slot. Storage Options: Offers five M.2 slots for high-speed NVMe SSDs and six SATA III ports for additional storage devices. Connectivity:Networking: Integrated Wi-Fi 7 (802.11be) for high-speed wireless connectivity and dual Ethernet ports, including 10GbE and 5GbE, ensuring fast and reliable networking. USB Ports: Provides a comprehensive array of USB ports, including Thunderbolt 4, USB 3.2 Gen 2x2, and USB 3.2 Gen 2, offering versatile and high-speed peripheral connectivity. Cooling and Design: Incorporates advanced cooling solutions with enlarged heatsinks, heat-pipes, and M.2 Shield Frozr to maintain optimal temperatures during intensive tasks. The motherboard's aesthetic features a dark black heatsink with embedded crystal-cut tempered glass and a stereoscopic dragon design, complemented by the Dynamic Dashboard III for real-time system monitoring. User-Friendly Features: Includes EZ DIY features such as EZ PCIe Release, EZ M.2 Shield Frozr II, and EZ Debug LED, simplifying the building and upgrading process.Performance and Reviews:The MEG Z890 GODLIKE has been lauded for its extensive feature set and exceptional performance capabilities. A recent review highlighted its robust build quality, comprehensive connectivity options, and advanced cooling solutions, noting that it met and exceeded expectations. However, the premium price point, around $1,099.99, positions it as a high-end option for those seeking top-tier features. Conclusion:The MSI MEG Z890 GODLIKE stands as a flagship motherboard offering a blend of cutting-edge technology, robust performance, and aesthetic appeal. Its comprehensive feature set makes it a compelling choice for enthusiasts and professionals aiming to build a high-performance system.
