Product Description

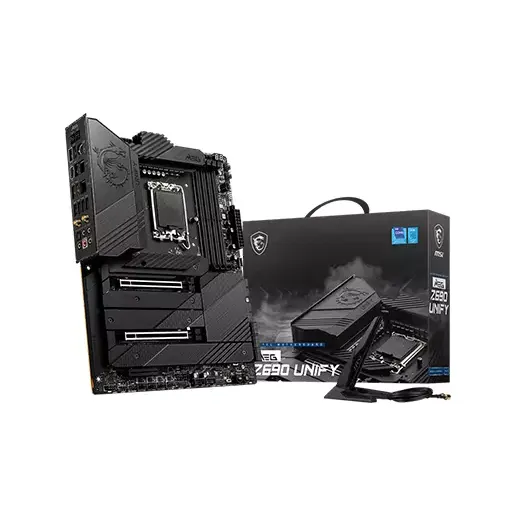

Unleash Unmatched Gaming Performance with the MSI MEG Z690 UNIFY
The MSI MEG Z690 UNIFY motherboard is designed for enthusiasts who demand the best gaming experience. With its exceptional performance and sleek design, this motherboard is perfect for those who want to take their gaming to the next level.
Key Features and Benefits
- Supports 12th Gen Intel Core / Pentium Celeron processors for LGA 1700 socket and DDR5 Memory, Dual Channel DDR5-6666+MHz (OC)
- Dual Thunderbolt 4 ports with true 40 Gb/s speeds, 8K display support, Daisy-Chaining, and Multi-Port Accessory Architecture
- Quintuple M.2 Connectors with onboard 5x M.2 connectors for maximum storage performance with quad Lightning Gen 4 solution
- Onboard dual 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz
- 8 Layer PCB with 2oz Thickened Copper for higher performance and long-lasting system stability
Proprietary Technologies for Enhanced Performance
Advanced Cooling and Memory Performance
The MSI MEG Z690 UNIFY features a dedicated SMT welding process and MSI Memory Boost technology, ensuring world-class memory performance. The motherboard also boasts a Double-sided Shield Frozr, which keeps M.2 SSDs safe while preventing throttling, making them run faster. Additionally, the motherboard has an Outstanding Cooling Solution, designed with Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M.2 Shield Frozr, and Aluminum Backplate to ensure extreme performance with low temperature.
Part ID: #CAN-01661
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Nexus Computer
MSI MEG Z690 UNIFY 12th Gen ATX Motherboard
|
In Stock | 57,300 | 4 hours ago | |
|
Creatus Computer
MSI MEG Z690 UNIFY 12th Gen ATX Motherboard
|
Check Stock | 55,300 | 1 week ago | |
|
TechLand BD
MSI MEG Z690 UNIFY LGA 1700 ATX Gaming 12th Gen Intel Motherboard
|
Check Stock | 57,100 | 4 hours ago | |
|
PC House
MSI MEG Z690 UNIFY 12th Gen ATX Motherboard
|
Check Stock | 57,800 | 4 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
2x Intel® I225-V 2.5Gbps LAN controllers
USB
Intel® Z690 Chipset 2x USB 3.2 Gen2x2 20Gbps ports ( 1 Type-C port on the back panel, 1 Type-C internal connector) 3x USB 3.2 Gen2 10Gbps Type-A ports on the back panel 2x USB 2.0 Type-A port on the back panel Hub GL3590 4x USB 3.2 Gen2 10Gbps ports on the back panel Hub ASM1074 4x USB 3.2 Gen1 5Gbps ports available through internal USB connectors Hub GL850G 4x USB 2.0 ports available through internal USB connectors
WiFi
The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2
Audio
Realtek® ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Slots
2x PCIe x16 slots (From CPU) Support PCIe 5.0 Support x16/ x0, x8/ x8 1x PCIe x4 slot (From Z690 Chipset) Supports PCIe 3.0 x4
Memory
4x DDR5 memory slots, support up to 128GB Supports 1R 4800 MHz (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 6666+ MHz 1DPC 2R Max speed up to 5600+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Intel® XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Chipset
Intel Z690 Chipset
Warranty
2 years
Bluetooth
Supports Bluetooth® 5.2 , FIPS, FISMA
Dimension
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Multi-GPU
Supports AMD® CrossFire™ Technology Supports NVIDIA® SLI™ Technology
Form Factor
ATX Form Factor
Supported CPU
Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors Processor socket LGA1700
Supported Storage
6x SATA 6Gb/s ports SATA5~8 (From Z690 Chipset) SATAA~B (From ASMedia ASM1061) 5x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2260/ 2280 storage devices M2_2 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports 2260/ 2280 storage devices M2_3 slot (From Z690 Chipset) Supports PCIe 4.0x4 Supports SATA 6Gb/s Supports 2260/ 2280/ 22110 storage devices M2_4 slot (From Z690 Chipset) Supports PCIe 3.0x4 Supports 2260/ 2280 storage devices M2_5 slot (From Z690 Chipset) Supports PCIe 4.0x4 Supports 2260/ 2280 storage devices M2_2~5 supports Intel® Optane™ Memory Supports Intel® Smart Response Technology for Intel Core™ processors
External I/O Ports
Clear CMOS Button PS/2 Keyboard / Mouse Port 2.5G LAN 2.5G LAN USB 3.2 Gen 2 10Gbps (Type-A) Wi-Fi / Bluetooth HD Audio Connectors Flash BIOS Button USB 2.0 USB 3.2 Gen 2x2 20Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-A) Optical S/PDIF-Out
Internal I/O Ports
1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 5x M.2 slots (M-Key) 1x USB 3.2 Gen 2x2 20Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connector (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 2-pin Thermal Sensors connector 1x Water flow connector 1x V-check point 1x TPM module connector 1x Tuning controller connector 1x Debug port connector 1x TBT connector (Supports RTD3)
Part ID: #CAN-01661
Last Updated: 1 month ago
