Product Description
Engineered by MSI, this motherboard is designed for **LGA1700** socket processors, built on the **Z690** chipset, featuring a **E-ATX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. This item is currently out of stock or unavailable at our tracked local computer stores in Bangladesh.
Part ID: #CAN-02159
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Main Features
Wired/Wireless
Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMA
Motherboard Basic Info
Supported CPU
Support for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package
Chipset
Intel Z690 Chipset
Form Factor
12 in. x 12 in. (30.5 cm x 31.0 cm) E-ATX Form Factor
Expansion Slots
PCI
3x PCIe x16 slots Supports x16/x0/x4, x8/x8/x4 PCI_E1 & PCI_E2 slots (From CPU) PCI_E1 supports up to PCIe 5.0 x16 PCI_E2 supports up to PCIe 5.0 x8 PCI_E3 (From Z690 chipset) ▫Supports up to PCIe 4.0 x4
Memory Specifications
Type
DDR5
Motherboard Memory Info
Slots
4x DDR5 memory slots
Supported Memory
Supports 1R 4800 MHz (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 6666+ MHz 1DPC 2R Max speed up to 5600+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Intel XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory
supporting up to 128GB
Motherboard Graphics Info
Graphics
Supports AMD CrossFire Technology Supports NVIDIA SLI Technology
Connector & Ports (MB)
USB (s)
Intel Z690 Chipset 2x USB 3.2 Gen 2x2 20Gbps Type-C internal connectors 4x USB 3.2 Gen 2 10Gbps ports on the back panel Hub-GL3590 4x USB 3.2 Gen 2 10Gbps ports on the back panel ASM1074 4x USB 3.2 Gen 1 5Gbps ports through internal USB connectors Hub-GL850G 4x USB 2.0 ports through internal USB connectors Intel JHL8540 Thunderbolt 4 Controller 2x Thunderbolt™ 4 (USB-C) ports on the back panel Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel)
LAN Port (s)
1x Aquantia AQC113CS 10Gbps LAN controller 1x Intel I225-V 2.5Gbps LAN controller
Audio
Realtek ALC4082 Codec + ES9218PQ Combo DAC/HPA 7.1-Channel High Definition Audio Supports S/PDIF output
Internal I/O Ports
1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 6x M.2 slots (M-Key) 2x USB 3.2 Gen 2x2 20Gbps Type-C ports 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 8x 4-pin system fan connectors 1x Water Flow meter connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 2-pin Thermal Sensors connectors 1x Tuning Controller connector
Supported Storage
6x SATA 6Gb/s ports (From Z690 chipset) SATA5~8 (From Z690 chipset) SATAA~B (From ASM1061) 6x M.2 slots (Key M) M2_1 slot (From CPU) Supports up to PCIe 4.0 x4 Supports 2260/ 2280/ 22110 storage devices M2_2 slot (From Z690 chipset) Supports up to PCIe 4.0 x4 Supports 2260/ 2280 storage devices M2_3 slot (From CPU) Supports up to PCIe 5.0 x4 Supports 2260/ 2280/ 22110 storage devices M2_4 slot (From Z690 chipset) Supports up to PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2260/ 2280 storage devices M2_5 slot (From Z690 chipset) Supports up to PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2260/ 2280 storage devices M2_6 slot (From Z690 chipset) Supports up to PCIe 3.0 x4 Supports 2260/ 2280/ 22110 storage devices M2_2, M2_4, M2_5, and M2_6 slots support Intel Optane Memory Supports Intel Smart Response Technology for Intel Core processors Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5, and RAID 10 for M.2 NVMe storage devices
Warranty Information
Manufacturing Warranty
3 years
Part ID: #CAN-02159
Last Updated: 2 days ago

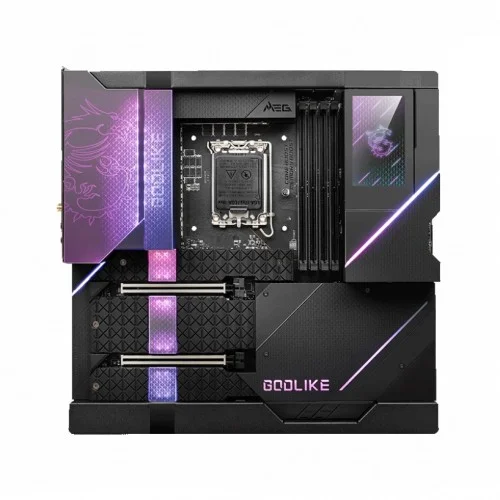

MSI MEG Z690 GODLIKE 12th Gen E-ATX Motherboard The MSI MEG Z690 GODLIKE Motherboard comes with LGA 1700 socket and is supported with 12th Gen Intel Core/ Pentium Celeron processors. It supports DDR5 Memory, Dual Channel DDR5-6666+MHz (OC). The motherboard comes with direct 20+2 phases with 105A Smart Power Stage, Titanium Choke III, and dual CPU power connectors to unleash the maximum performance. It features an extreme power design and premium thermal module. It is equipped with a wavy fin design, Cross Heat-pipe, 7W/mK thermal pads, and Double-Sided M.2 Shield Frozr to ensure extreme performance with low temperature. This motherboard features the ultimate audio solution with the latest premium ALC4082 audio processor combining ESS audio DAC and amplifier delivering a breathtaking experience. The revolutionary magnetic cover and Chest Plate allow you showing off your PC building without messy cable when installing great amount of devices. Industry's first built-in Touch Panel LCD display on motherboard The MSI MEG Z690 GODLIKE Motherboard comes with an M-Vision Dashboard. It features the industry's first built-in touchable LCD on the motherboard, which not only indicates the status of your gaming rig but also allows system tuning with touch control. It has a 3.5-inch IPS full-color display with full touch control. It has a speaker function and it offers a magnetic connection. It is also customizable with software. The touch panel allows you to control multi-application with one finger. The panel offers a detachable mode that brings a new way of operation. It comes with PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Dual Front USB 3.2 Gen 2x2 20G. The 8 Layer PCB with 2oz Thickened Copper provides higher performance and long-lasting system stability without any compromise. Onboard 10G Super LAN and 2.5G LAN The MSI MEG Z690 GODLIKE motherboard features onboard 10G Super LAN, Intel 2.5G LAN, and the latest Wi-Fi 6E solution to deliver the best online experience without lag. The latest Wi-Fi 6E solution supports 6GHz spectrum, MU-MIMO, and BSS color technology, delivering speeds up to 2400Mbps.Dual Thunderbolt 4 portsThe MSI MEG Z690 GODLIKE is equipped with Thunderbolt 4 brings USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining, and Multi-Port Accessory Architecture to provide reliable connectivity and a better user experience. Onboard 6x M.2 connectors The MSI MEG Z690 GODLIKE 12th Gen Motherboard comes with Sextuple M.2 Connectors. It offers onboard 6x M.2 connectors for maximum storage performance with one Lightning Gen 5 solution. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster. The Latest MSI MEG Z690 GODLIKE has 03 years warranty.
