Status
In Stock
5 stores
Lowest Deal
78,400 BDT
Best Deal
Price Range
Single price listing
Product Description
Unlock Unparalleled Performance

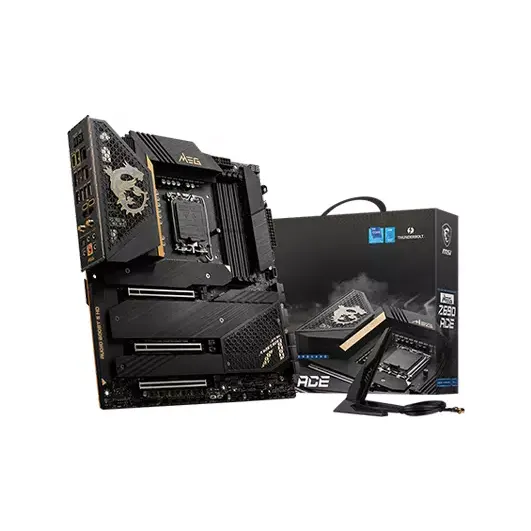

Designed for enthusiasts and professionals seeking the ultimate gaming and content creation experience, the MSI MEG Z690 ACE motherboard is engineered to deliver exceptional performance, cutting-edge features, and robust connectivity. Unlock the full potential of your 12th Gen Intel Core processor with this premium motherboard.
Key Features and Performance Highlights
Outstanding Performance:
- Supports 12th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1700 socket
- Quad-channel DDR5 memory support with speeds up to 6666+ MHz (OC)
- Five M.2 slots for maximum storage performance with quad Lightning Gen 4 solution
- Dual Thunderbolt 4 ports with true 40 Gb/s speeds, 8K display support, and Daisy-Chaining
- Onboard dual 2.5G LAN with LAN manager and latest Wi-Fi 6E solution supporting 6GHz
Proprietary Technologies and Cooling Solutions
MSI Memory Boost and Enhanced Cooling:
Combining MSI's dedicated SMT welding process and MSI Memory Boost technology, the MEG Z690 ACE motherboard is designed to deliver world-class memory performance. Additionally, the motherboard features a robust cooling solution, including a Double-sided Shield Frozr, which keeps M.2 SSDs safe while preventing throttling, making them run faster. This comprehensive cooling system, paired with an aluminum cover, VRM heat-pipe, and 7W/mK thermal pads, ensures extreme performance with low temperatures.
Part ID: #CAN-01686
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Computer Village
MSI MEG Z690 ACE 12th Gen E-ATX Intel Motherboard
|
In Stock | 78,400 | 4 hours ago | |
|
Nexus Computer
MSI MEG Z690 ACE Gaming Motherboard
|
In Stock | 78,400 | 3 hours ago | |
|
Creatus Computer
MSI MEG Z690 ACE 12th Gen ATX Motherboard
|
Check Stock | 75,200 | 1 week ago | |
|
PC House
MSI MEG Z690 ACE 12th Gen E-ATX Motherboard
|
Check Stock | 78,300 | 1 month ago | |
|
TechLand BD
MSI MEG Z690 ACE 12TH GEN E-ATX INTEL MOTHERBOARD
|
Check Stock | 78,400 | 4 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
2x Intel I225V 2.5Gbps LAN controllers
USB
Intel® Z690 Chipset 2x USB3.2 Gen2x2 20Gbps ports (2 Type-C internal connectors) 4x USB 3.2 Gen 2 10Gbps ports (1 Type-C port on the back panel, 3 Type-A ports on the back panel) Hub-GL3590 4x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel ASM1074 4x USB 3.2 Gen 1 5Gbps Type-A ports available through the internal connector Hub-GL850G 4x USB 2.0 Type-A ports available through the internal connectors
WiFi
Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2 2, FIPS, FISMA
Audio
Realtek ALC4082 Codec + ESS SABRE9018Q2C Combo DAC/HPA 7.1-Channel High Definition Audio Supports S/PDIF output
Slots
3x PCIe x16 slots Supports x16/x0/x4, x8/x8/x4 PCI_E1 & PCI_E2 slots (From CPU) PCI_E1 supports up to PCIe 5.0 x16 PCI_E2 supports up to PCIe 5.0 x8 PCI_E3 1 (From Z690 chipset) ▫Supports up to PCIe 4.0 x4
Memory
4x DDR5 memory slots, supporting up to 128GB 1 Supports 1R 4800 MHz (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 6666+ MHz 1DPC 2R Max speed up to 5600+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Intel® XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Chipset
Intel Z690 Chipset
Graphics
1x Type-C Display port, supporting a maximum resolution of 4K 60Hz
Warranty
3 years
Dimension
12 in. x 9.6 in. (30.5 cm x 27.7 cm)
Multi-GPU
Supports AMD® CrossFire™ Technology
Form Factor
E-ATX Form Factor
Supported CPU
Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors 1 Processor socket LGA1700
Supported Storage
6x SATA 6Gb/s ports (From Z690 chipset) SATA5~8 (From Z690 chipset) SATAA~B (From ASM1061) 5x M.2 slots (Key M) M2_1 slot (From CPU) Supports up to PCIe 4.0 x4 Supports 2260/ 2280/ 22110 storage devices M2_2 & M2_3 slots (From Z690 chipset) M2_2 slot supports up to PCIe 4.0 x4 M2_3 slot supports up to PCIe 3.0 x4 Supports 2260/ 2280 storage devices M2_4 & M2_5 1 slots (From Z690 chipset) Supports up to PCIe 4.0 x4 Supports up to SATA 6Gb/s M2_4 slot supports 2280/ 22110 storage devices M2_5 slot supports 2260/ 2280 storage devices M2_2~5 slots support Intel® Optane™ Memory Supports Intel® Smart Response Technology for Intel Core™ processors
External I/O Ports
Clear CMOS Button 2.5G LAN 2.5G LAN USB 3.2 Gen 2 10Gbps (Type-A) Thunderbolt 4 40Gbps (Type-C) Wi-Fi / Bluetooth HD Audio Connectors Flash BIOS Button USB 3.2 Gen 2 10Gbps (Type-C Display port) USB 3.2 Gen 2 10Gbps (Type-A) Mini DisplayPort Input (for Thunderbolt passthrough) Optical S/PDIF-Out
Internal I/O Ports
1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 5x M.2 slots (M-Key) 2x USB 3.2 Gen 2x2 20Gbps Type-C ports 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 3-pin Water Flow connector 2x 2-pin Thermal sensor connectors 1x TPM module connector 1x Tuning Controller connector
Part ID: #CAN-01686
Last Updated: 1 month ago
