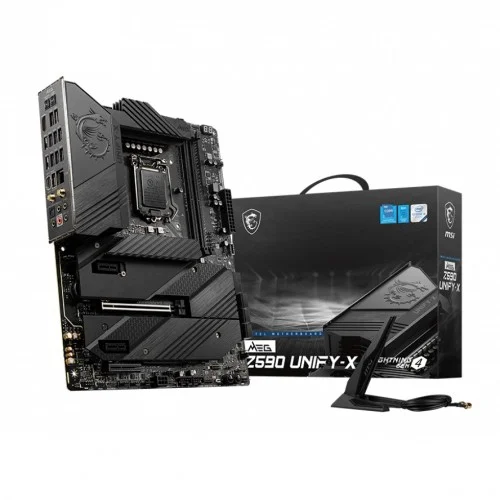

MSI MEG Z590 UNIFY-X 10th and 11th Gen ATX Motherboard

Status
Check Stores
2 stores
Lowest Out of Stock
Price Range Single price listing
MSI MEG Z590 UNIFY-X 10th and 11th Gen ATX Motherboard

Product Description

MSI MEG Z590 UNIFY-X 10th and 11th Gen ATX Motherboard

This motherboard is designed for power users, content creators, and PC enthusiasts who demand exceptional performance, advanced features, and high-quality components. The MSI MEG Z590 UNIFY-X motherboard offers a perfect blend of cutting-edge technology and sleek design, making it an ideal choice for building a high-performance gaming PC or a content creation workstation.

Key Features and Specifications

Key Specifications:

  • Supports 10th and 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors
  • Quad-channel DDR4 memory support with speeds up to 5600 MHz
  • Four M.2 slots with PCIe 4.0 x4 and SATA 6Gb/s support
  • Intel Z590 Chipset with 16+2+1 phases power delivery and 90A Smart Power Stage
  • Intel I225-V 2.5Gbps LAN controller and Intel WiFi 6E AX210 with MU-MIMO and 6GHz support

Advanced Technologies and Features

Exclusive Technologies:

The MSI MEG Z590 UNIFY-X motherboard features several advanced technologies that enhance performance, cooling, and convenience. The Shield Frozr design keeps M.2 SSDs safe and prevents throttling, while the M.2 Shield Frozr and MOSFET Baseplate ensure extreme performance with low temperatures. The motherboard also features an Outstanding Cooling Solution with an Aluminum Cover, VRM Heat-pipe, and 7W/mK thermal pads. Additionally, the Smart Button provides one-click access to Reset Computer, Safe Boot, Turbo Fan, and EZ LED control functions.

Part ID: #CAN-02078 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Creatus Computer MSI MEG Z590 UNIFY-X 10th and 11th Gen ATX Motherboard
Check Stock Call for Price 5 hours ago
Buy Now
PC House MSI MEG Z590 UNIFY-X 10th and 11th Gen ATX Motherboard
Check Stock Call for Price 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1200
Chipset Intel Z590 Chipset
Form Factor ATX Form Factor
Audio Realtek ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output

Expansion Slots

PCI 1x PCIe x16 slot (PCI_E2, from CPU) Supports up to PCIe 4.0 x16 with11th Gen CPU Supports up to PCIe 3.0 x16 with10th Gen CPU 1x PCIe 3.0 x4 slot (PCI_E4, from Z590 chipset) 2x PCIe 3.0 x1 slots (from Z590 chipset)
M.2 Socket 4x M.2 slots (Key M) M2_1 (from CPU) Available only on 11th Gen Intel CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_21, M2_32 slots Support up to PCIe 3.0 x4 and SATA 6Gb/s (from Z590 chipset, default) Support up to PCIe 4.0 x4 (from CPU, by BIOS selection) M2_2 supports 2242/ 2260/ 2280 storage devices,M2_3 supports 2242/ 2260/ 2280/ 22110 storage devices,M2_4 slot (from Z590 chipset) Supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices

Memory

Type DDR4
Slots 2x DDR4 memory slots
Supported Memory Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5600 MHz 1DPC 2R Max speed up to 4800+ MHz Supports Dual-Channel mode,Supports non-ECC, un-buffered memory,Supports Intel Extreme Memory Profile (XMP)
Maximum Memory Support up to 64GB

Graphics

Graphics 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz Supports 2-Way AMD CrossFire Technology

Connector & Ports

HDMI 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
USB (s) Intel Z590 Chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel 2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port on the back panel and 1 Type-C internal connector) 10x USB 3.2 Gen 1 5Gbps ports (8 Type-A ports on the back panel, 2 ports are available through internal USB 3.2 Gen 1 connector) 2x USB 2.0 ports on the back panel Hub-GL850G 4x USB 2.0 ports through internal USB 2.0 connector
LAN Port (s) 1x Intel I225-V 2.5Gbps LAN controller
Wireless Communication module Intel WiFi 6E AX210 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax,Supports Bluetooth 5.2, FIPS, FISMA
Supported Storage 6x SATA 6Gb/s ports (from Z590 chipset) 4x M.2 slots (Key M) M2_1 (from CPU) Available only on 11th Gen Intel CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2, M2_3 slots Support up to PCIe 3.0 x4 and SATA 6Gb/s (from Z590 chipset, default) Support up to PCIe 4.0 x4 (from CPU, by BIOS selection) M2_2 supports 2242/ 2260/ 2280 storage devices,M2_3 supports 2242/ 2260/ 2280/ 22110 storage devices,M2_4 slot (from Z590 chipset) Supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Supports Intel Smart Response Technology for Intel Core processors
Audio 1x Front panel audio connector
Internal I/O Ports 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x 6-pin ATX PCIE power connector 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector,1x 2-pin Thermal Sensors connector 1x Tuning Controller connector,1x TBT connector (Supports RTD3)
TPM (Trusted Platform Module ) 1xTPM module connector

Warranty Information

Manufacturing Warranty 03 years warranty
Part ID: #CAN-02078 Last Updated: 1 month ago
