Product Description

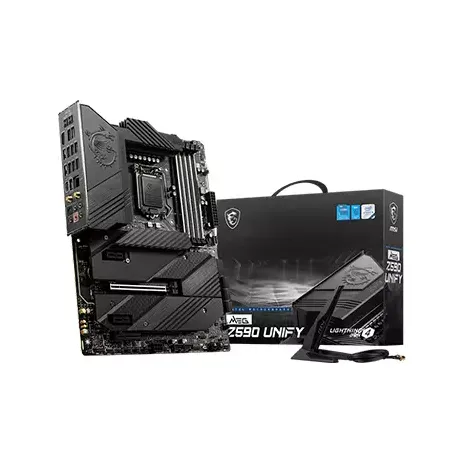

Upgrade Your Gaming Experience with the MSI MEG Z590 UNIFY
Designed for serious gamers and power users, the MSI MEG Z590 UNIFY is a high-performance motherboard that supports the latest 10th and 11th Gen Intel Core processors. With its cutting-edge features and robust design, this motherboard delivers exceptional performance, reliability, and scalability for demanding applications.
Key Features and Benefits
Technical Specifications:
- Supports 10th and 11th Gen Intel Core Processors: Enjoy seamless performance and compatibility with the latest CPU generations.
- DDR4 Memory Support: Upgrade to 128GB of DDR4 RAM for enhanced multitasking and gaming performance.
- Wi-Fi 6 (802.11ax) and Bluetooth 5.0: Stay connected with lightning-fast Wi-Fi and seamless Bluetooth connectivity.
- Thunderbolt 4 and Quad M.2 Ports: Experience ultra-fast storage and connectivity with Thunderbolt 4 and four M.2 ports.
- Shield Frozr Design and Aluminum Backplate: Enjoy exceptional cooling and durability with the MSI MEG Z590 UNIFY's advanced thermal design.
Advanced Technologies and Performance Features
MSI's Proprietary Technologies:
The MSI MEG Z590 UNIFY boasts several innovative technologies that deliver exceptional performance and reliability, including:
Extreme Performance Design: With 16+2+1 phase power delivery and a 90A Smart Power Stage, this motherboard unleashes the true power of your processors.
Audio Boost and Wi-Fi 6 (802.11ax): Enjoy immersive audio and seamless connectivity with the latest premium audio processor and Wi-Fi 6 technology.
Part ID: #CAN-01728
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Nexus Computer
MSI MEG Z590 UNIFY Wi-Fi Gaming Motherboard
|
In Stock | 22,500 | 4 hours ago | |
|
Creatus Computer
MSI MEG Z590 UNIFY 10th Gen And 11th Gen ATX WIFI Motherboard
|
Check Stock | Call for Price | 4 hours ago | |
|
TechLand BD
MSI MEG Z590 UNIFY 10th Gen And 11th Gen ATX WIFI Motherboard
|
Check Stock | 22,500 | 4 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
Intel I225-V 2.5Gbps LAN controller
USB
Intel Z590 Chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel 2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port on the back panel and 1 Type-C internal connector) 10x USB 3.2 Gen 1 5Gbps ports (8 Type-A ports on the back panel, 2 ports are available through internal USB 3.2 Gen 1 connector) 2x USB 2.0 ports on the back panel Hub-GL850G 4x USB 2.0 ports through internal USB 2.0 connector
WiFi
Intel WiFi 6E AX210 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz1 (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.22, FIPS, FISMA
Audio
Realtek ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Slots
1x PCIe x16 slot (PCI_E2, from CPU) Supports up to PCIe 4.0 x16 with11th Gen CPU1 Supports up to PCIe 3.0 x16 with10th Gen CPU1 1x PCIe 3.0 x4 slot (PCI_E4, from Z590 chipset)2 2x PCIe 3.0 x1 slots (from Z590 chipset)
Memory
4x DDR4 memory slots, support up to 128GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)1 Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)1 Max overclocking frequency: 1DPC 1R Max speed up to 5600 MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC mode, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Chipset
Intel Z590 Chipset
Graphics
HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
Warranty
03 Years
Multi-GPU
Supports 2-Way AMD CrossFire Technology
Form Factor
ATX Form Factor
Supported CPU
Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors1 Processor socket LGA1200
Supported Storage
6x SATA 6Gb/s ports (from Z590 chipset) 4x M.2 slots (Key M) M2_1 (from CPU) Available only on 11th Gen Intel CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_21, M2_32 slots Support up to PCIe 3.0 x4 and SATA 6Gb/s (from Z590 chipset, default)3 Support up to PCIe 4.0 x4 (from CPU, by BIOS selection)4 M2_2 supports 2242/ 2260/ 2280 storage devices M2_3 supports 2242/ 2260/ 2280/ 22110 storage devices M2_4 slot (from Z590 chipset) 3 5 Supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Supports Intel Smart Response Technology for Intel Core processors SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.SATA5 & SATA6 will be unavailable when installing M.2 SATA/ PCIe SSD in the M2_3 slot.Intel Optane Memory Ready. Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.PCIe 4.0 specification is available only on 11th Gen Intel CPU
External I/O Ports
Clear CMOS Button USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth HD Audio Connectors Flash BIOS Button HDMI USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C) Optical S/PDIF-Out
Internal I/O Ports
1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x 6-pin ATX PCIE power connector 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 2-pin Thermal Sensors connector 1xTPM module connector 1x Tuning Controller connector 1x TBT connector (Supports RTD3)
