Product Description
Engineered by MSI, this motherboard is designed for **LGA1200** socket processors and featuring a **ATX** form factor, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **53,300 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-02174
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Computer Village

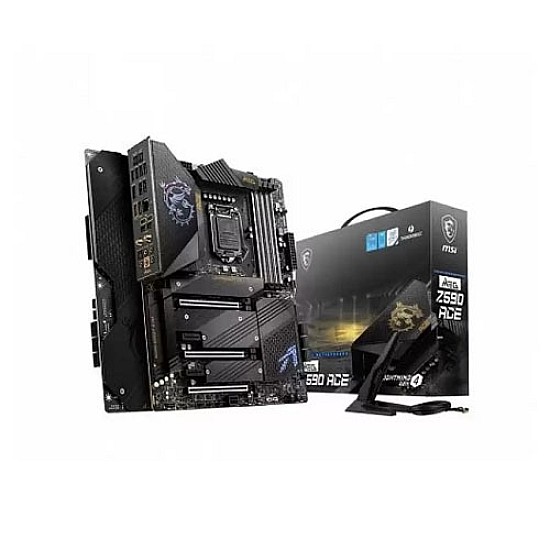

MSI MEG Z590 ACE Gaming Intel 10th Gen and 11th Gen ATX Motherboard
|
In Stock | 53,300 | 2 hours ago | |
|
PC House
MSI MEG Z590 ACE Gaming Intel 10th Gen and 11th Gen ATX Motherboard
|
Check Stock | 53,290 | 2 hours ago | |
|
Nexus Computer
MSI MEG Z590 ACE 10th Gen and 11th Gen ATX Motherboard
|
Check Stock | 53,300 | 2 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron® Processors Processor socket LGA1200
Chipset
Intel Z590 Chipset
Form Factor
ATX Form Factor
Audio
7.1-Channel High Definition AudioSupports S/PDIF output
Expansion Slots
M.2 Socket
4x M.2 slots (Key M)
PCI
3x PCIe x16 slots Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4 PCI_E1 & PCI_E3 slots (From CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPUPCI_E5 slot (From Z590 chipset) Supports up to PCIe 3.02x PCIe 3.0 x1 slots (From Z590 chipset)
Memory
Supported Memory
Type DDR4,4x DDR4 memory slots, Max 128GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)1 Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)1 Max overclocking frequency: 1DPC 1R Max speed up to 5600 MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Graphics
Graphics
Graphics1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
Ports, Connectors & Slots
Supported Storage
6x SATA 6Gb/s ports (from Z590 chipset) 4x M.2 slots (Key M) M2_2, M2_3, M2_4 slots (from Z590 chipset)
USB (s)
3x USB 3.2 Gen 2 10Gbps ports (2 Type-A port on the back panel, 1 Type-C internal connector) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel, 2 ports available through internal USB connector) 2x USB 2.0 Type-A ports on the back panelHub-GL850G 4x USB 2.0 ports through internal USB connectors
Warranty
Manufacturing Warranty
3 Year
Other Features
Others
Multi-GPU: Supports 2-Way NVIDIA® SLI™ Technology Supports 3-Way AMD® CrossFire™ Technology Wifi & Bluetooth: Intel® Wi-Fi 6E AX210 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.22, FIPS, FISMA
Part ID: #CAN-02174
Last Updated: 2 days ago
MSI MEG Z590 ACE Gaming Intel 10th Gen and 11th Gen ATX MotherboardMSI MEG Z590 ACE Gaming Motherboard Supports 11th and 10th Gen Intel Core Pentium Celeron processors for LGA 1200 socket, DDR4 Memory, up to 5600(OC) MHz, The motherboard has Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience. The Motherboard comes with Extreme Power Design, that INTERSIL digital PWM, 16+2+1 phases with 90A Smart Power Stage, dual CPU power connectors and exclusive Mirrored Power Arrangement to unleash the true power of your processors. The Motherboard has Outstanding Cooling Solution, that Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp. It has 2.5G LAN with latest Wi-Fi 6E Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience. The Motherboard has One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click. It is also featured with 8 Layer PCB with 2oz Thickened Copper, that Provides higher performance and long-lasting system stability without any compromise. Here, the Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience. This latest MSI MEG Z590 ACE Gaming Intel 10th Gen and 11th Gen ATX Motherboard has 03 years warranty.Features:Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socketSupports DDR4 Memory, up to 5600(OC) MHzDual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with one Lightning Gen 4 solution. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.Extreme Power Design: INTERSIL digital PWM, 16+2+1 phases with 90A Smart Power Stage, dual CPU power connectors and exclusive Mirrored Power Arrangement to unleash the true power of your processors.Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp.2.5G LAN with latest Wi-Fi 6E: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.Smart Button: One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click.8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.MSI MEG Z590 ACE Gaming Intel 10th Gen and 11th Gen ATX Motherboard Review:
