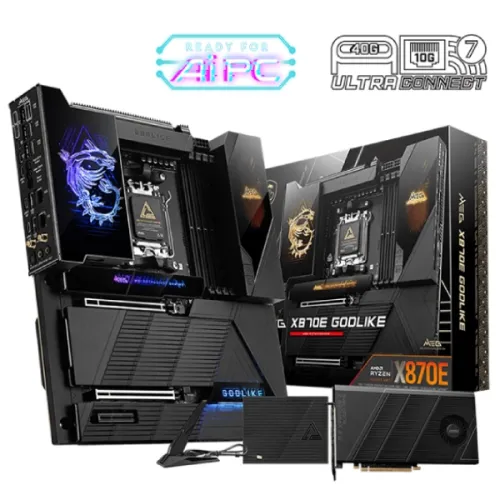

MSI MEG X870E GODLIKE WiFi 7 AMD AM5 E-ATX Motherboard

Product Description

Upgrade Your PC Experience with the MSI MEG X870E GODLIKE Motherboard

The MSI MEG X870E GODLIKE E-ATX Motherboard is designed for power users and enthusiasts who demand exceptional performance and advanced features. With its cutting-edge technology and robust design, this motherboard is the perfect choice for building a powerful and feature-rich PC.

Key Features and Benefits

The MSI MEG X870E GODLIKE Motherboard boasts a range of impressive features, including:

  • Support for AMD Ryzen 9000, 8000, and 7000 Series desktop processors
  • Quad-channel DDR5 memory support with speeds up to DDR5 9000 MT/s
  • Two Type-C DisplayPort USB4 connections with a maximum resolution of 4K@60Hz
  • Seven M.2 slots for fast storage options and PCIe 5.0 and 4.0 support
  • Wi-Fi 7 and Bluetooth 5.4 compatibility for seamless wireless connectivity
  • Advanced cooling features, including the Double-Sided M.2 Shield Frozr and Direct Touch Cross Heat-pipe
Advanced Technologies and Features

The MSI MEG X870E GODLIKE Motherboard also features several innovative technologies and features, including:

Dynamic Dashboard III

The 3.99-inch full-color LCD on the MSI MEG X870E GODLIKE Motherboard provides real-time hardware monitoring, troubleshooting, BIOS update status, clock display, and customization choices. This advanced feature greatly improves the user experience and provides a convenient way to monitor system performance and make adjustments as needed.

Exclusive Cooling Features

The MSI MEG X870E GODLIKE Motherboard features a range of advanced cooling technologies, including the Double-Sided M.2 Shield Frozr, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK thermal pads, and Wavy fin design. These features work together to provide exceptional cooling performance and ensure that the motherboard operates at optimal temperatures even under heavy loads.

Part ID: #CAN-01183 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech MSI MEG X870E GODLIKE WiFi 7 AMD AM5 E-ATX Motherboard
In Stock 173,999 1 week ago
Buy Now
Skyland BD MSI MEG X870E GODLIKE WiFi 7 AMD AM5 E-ATX Motherboard
In Stock 174,499 4 hours ago
Buy Now
Sell Tech MSI MEG X870E GODLIKE WiFi 7 AMD AM5 E-ATX Motherboard
In Stock 179,000 5 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset AMD X870E
Form Factor E-ATX 304.8mmx277mm
Audio Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel

Expansion Slots

PCI 2x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 & PCI_E2 slots • Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™9000/ 7000 Series processors) • Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors) PCI_E3 slot • Supports up to PCIe 4.0 x4
M.2 Socket 7x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_1: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors. M2_4: PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot.

Memory

Type DDR5
Slots 4x UDIMM
Supported Memory Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only
Maximum Memory 256GB

Graphics

Graphics Supports NVIDIA SLI Technology Supports AMD MULTI-GPU

Connector & Ports

Display Port (s) 2x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz
USB (s) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 8x USB 10Gbps Type A (Rear) 5x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear)
LAN Port (s) 1x Marvell® AQC113CS 10Gbps LAN 1x Realtek® 8126 5Gbps LAN
Wireless Communication module Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM
Supported Storage 7x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_1: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors. M2_4: PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot.
RAID Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices Supports RAID 0, RAID 1 and Raid 10 for M.2 NVMe storage devices
Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Combo Fan (Pump_Sys Fan) 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 1x Addressable V2 RGB LED connector (JARGB_V2) V-check point 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports 1x USB 20Gbps Type C ports

Others

Special Features LED FEATURE 1x Dynamic Dashboard III 1x EZ Digit Debug LED 1x EZ LED Control switch

Warranty Information

Manufacturing Warranty 3 Years

Key Features

Model MEG X870E GODLIKE
Supported CPU AMD Ryzen 9000/ 8000/ 7000 Series for Socket AM5
Supported RAM 4x UDIMM, Dual Channel DDR5 8400+MT/s (OC), Max 256GB
Graphics Output 2x Type-C DisplayPort, 3.99-inch LCD Dynamic Dashboard III
Features 7x M.2 Slot, 1x 10Gbps LAN, 1x 5Gbps LAN, Wi-Fi 7
