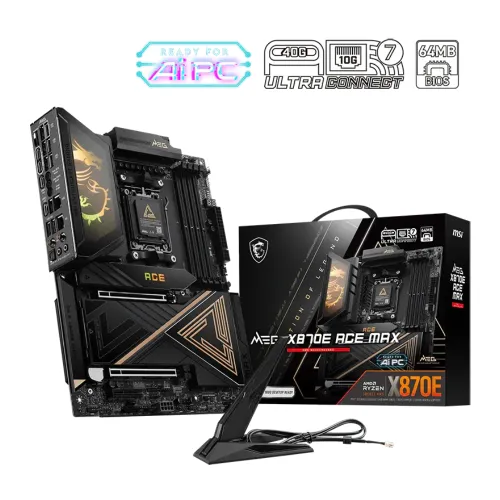

MSI MEG X870E ACE MAX AMD AM5 ATX Motherboard

Product Description

Unlock Unparalleled Performance with the MSI MEG X870E ACE MAX

Designed for gaming enthusiasts and content creators, the MSI MEG X870E ACE MAX AMD AM5 ATX Motherboard offers an unparalleled blend of performance, future-readiness, and reliability. This high-end motherboard is built to deliver lightning-fast responsiveness, support for next-gen graphics cards, and cutting-edge connectivity.

Key Features and Benefits

Main Highlights:

  • Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
  • Up to 256GB DDR5 memory with speeds reaching 8400+ MT/s via AMD EXPO
  • Five M.2 slots, including two PCIe 5.0 NVMe SSD slots
  • Advanced connectivity with 13 rear USB ports, Wi-Fi 7, and 10G LAN
  • 110A SPS VRM design, 64MB BIOS ROM, and robust heatsinks for stable overclocking

Advanced Technologies and Features

MSI's Signature Aesthetics and Advanced Technologies:

The MSI MEG X870E ACE MAX features an integrated AMP/DAC audio system, delivering studio-quality sound. Additionally, the motherboard boasts robust heatsinks, a 110A SPS VRM design, and a 64MB BIOS ROM, ensuring stable overclocking and long-term durability.

Part ID: #CAN-01177 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech MSI MEG X870E ACE MAX AMD AM5 ATX Motherboard
In Stock 97,000 1 week ago
Buy Now
Skyland BD MSI MEG X870E ACE MAX AMD AM5 ATX Motherboard
In Stock 97,000 3 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset AMD X870E
Form Factor ATX 243.84mmx304.8mm
Audio Realtek ALC4082 Codec + ESS9219Q Combo DAC/HPA 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel

Expansion Slots

PCI 2x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 5.0 supports up to x4 (From CPU) PCI_E1 & PCI_E2 slots • Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors)
M.2 Socket 5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices

Memory

Type DDR5
Slots 4x UDIMM
Supported Memory Maximum Memory Capacity 256GB Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6400+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
Maximum Memory 256GB

Graphics

Graphics 1x HDMI Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@120Hz*

Connector & Ports

HDMI 1x HDMI Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz*
Display Port (s) 2x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@120Hz*
USB (s) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 9x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear)
LAN Port (s) 1x Marvell AQC113CS 10Gbps LAN 1x Realtek 8126 5Gbps LAN
Wireless Communication module Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM
Supported Storage 5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G M.2_1: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors) * The M2_2 slot will be unavailable when using Ryzen 8500/ 8300 Series processors.
RAID Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices Supports RAID 0, RAID 1 and Raid 10 for M.2 NVMe storage devices
Internal I/O Ports Internal IO: 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) V-check point 2x Direct OC Jumper (JBCLK) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)

Others

Special Features 1x EZ Digi-Debug LED 4x EZ Debug LED 1x EZ Memory Detection LED 1x EZ LED Control switch

Warranty Information

Manufacturing Warranty 3 Years

Key Features

Model MEG X870E ACE MAX
Supported CPU AMD Ryzen 9000/ 8000/ 7000 Series for Socket AM5
Supported RAM 4x DDR5 UDIMM, 8400+MT/s (OC), Max 256GB
Graphics Output 2x Type-C, 1 x HDMI
Features 5 x M.2 Slot, 1x 10Gbps LAN, 1x 5Gbps LAN, Wi-Fi 7, Bluetooth 5.4
