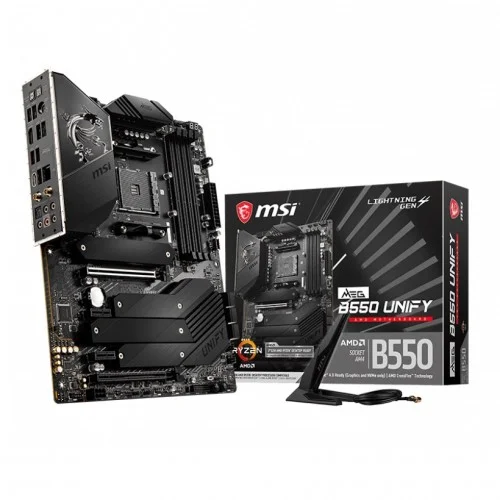

MSI MEG B550 UNIFY AM4 ATX AMD Motherboard

Status
In Stock
3 stores
Lowest Out of Stock
Price Range Single price listing
MSI MEG B550 UNIFY AM4 ATX AMD Motherboard

Product Description

Unlock Peak Performance with the MSI MEG B550 UNIFY

The MSI MEG B550 UNIFY is designed for serious gamers and enthusiasts who demand the best performance from their systems. With its robust feature set and cutting-edge technology, this motherboard offers unparalleled power and flexibility, making it the perfect choice for those who want to take their gaming experience to the next level.

Key Features and Benefits

Unmatched Performance

  • Supports AMD Ryzen 5000 & 3000 Series Desktop Processors for exceptional processing power and efficiency.
  • AMD B550 Chipset for high-speed connectivity and data transfer.
  • 4x DDR4 Memory Slots supporting up to 128GB of dual-channel memory for seamless multitasking.
  • 4x M.2 Slots for ultra-fast storage and maximum bandwidth.
  • Intel Wi-Fi 6 AX200 for lightning-fast wireless connectivity and MU-MIMO technology for efficient network management.

Exclusive MSI Technologies

Experience the future of gaming with MSI's proprietary technologies:

Double Side M.2 Shield Frozr for optimal M.2 SSD cooling and performance.

Lightning Gen 4 M.2 for the fastest onboard storage solution on the market.

Total Fan Control for customizable fan speeds and temperatures for all system and CPU fans.

MEG B550 UNIFY Series motherboard features exclusive onboard quadruple M.2 connectors for maximum storage performance.

Connectivity and Expansion

The MSI MEG B550 UNIFY offers a wide range of connectivity options, including:

1x HDMI 2.1 port, supporting a maximum resolution of 4096x2160 @120 Hz.

4x USB 3.2 Gen 2 10Gbps ports on the back panel.

2x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connector.

4x USB 2.0 ports on the back channel.

1x Realtek RTL8125B 2.5Gbps LAN controller.

6x SATA 6Gb/s ports and 4x M.2 slots for ultra-fast storage expansion.

Design and Build Quality

The MSI MEG B550 UNIFY boasts a robust design and high-quality build, featuring:

ATX Form Factor 12 in. x 9.6 in. (30.4 cm x 24.4 cm) for optimal compatibility and flexibility.

6x 4-pin system fan connectors for customizable fan control.

1x 4-pin CPU fan connector and 1x 4-pin water-pump fan connector for optimal cooling.

1x Front panel audio connector and 2x System panel connectors for seamless system integration.

Part ID: #CAN-02068 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
PC House MSI MEG B550 UNIFY AM4 ATX AMD Motherboard
In Stock Call for Price 1 month ago
Buy Now
Creatus Computer MSI MEG B550 UNIFY AM4 ATX AMD Motherboard
Check Stock Call for Price 4 hours ago
Buy Now
Sell Tech MSI MEG B550 UNIFY AM4 ATX AMD Motherboard
Check Stock Call for Price 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Key Features

Form Factor ATX

Basic Information

Supported CPU Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
Chipset AMD B550 Chipset
Form Factor ATX Form Factor 12 in. x 9.6 in. (30.4 cm x 24.4 cm)

Memory

Ram Type DDR4
Type Dual channel memory architecture
Slots 4x DDR4 memory slots
Supported Memory Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC AMD Ryzen 4000 G-Series processors support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4866/ 5000/ 5100+ (Max. 5600) MHz by A-XMP OC MODE 3rd Gen AMD Ryzen processors supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4866/ 5000/ 5100+ MHz by A-XMP OC MODE AMD Ryzen 4000 G-Series processors 1DPC 1R max speed 5100 MHz (QVL), Max. 5600 MHz 1DPC 2R max speed 4266 MHz 2DPC 1R max speed 4400 MHz 2DPC 2R max speed 3600 MHz 3rd Gen AMD Ryzen processors 1DPC 1R max speed 5100 MHz 1DPC 2R max speed 4000 MHz 2DPC 1R max speed 4000 MHz 2DPC 2R max speed 3600 MHz non-ECC UDIMM memory ECC UDIMM memory (non-ECC mode) un-buffered memory
Maximum Memory 128GB

Expansion Slots

PCI AMD Processor 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) AMD B550 Chipset 1x PCIe 3.0 x16 slot (PCI_E4), supports x4 speed 2x PCIe 3.0 x1 slots (PCI_E2 & PCI_E3)
M.2 Socket 4x M.2 slots (Key M)

Graphics

Graphics 1 x HDMI 2.1 port, supporting a maximum resolution of 4096x2160 @120 Hz Supports 2-Way AMD CrossFire Technology
Max Shared Memory 16GB

Connector & Ports

HDMI 1 x HDMI 2.1 port, supporting a maximum resolution of 4096x2160 @120 Hz
USB (s) AMD Processor 4x USB 3.2 Gen 2 10Gbps ports(3 Type-A ports and 1 Type-C port) on the back panel AMD B550 Chipset 1x USB 3.2 Gen 2 10Gbps Type-C internal connector 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 4x USB 2.0 ports on the back channel AMD B550 chipset + USB 2.0 Hubs 4x USB 2.0 ports are available through the internal USB 2.0 connectors
LAN Port (s) 1x Realtek RTL8125B 2.5Gbps LAN controller
Supported Storage 6x SATA 6Gb/s ports 4x M.2 slots (Key M) M2_1 slot (from CPU) PCIe 4.0/ 3.0 x4 SATA 6Gb/s 2280/ 22110 storage devices M2_2 slot Chipset support mode (default, from Chipset ) - supports PCIe 3.0 x2 CPU support mode (From CPU) - supports PCIe 4.0/ 3.0 x4 Supports 2280 storage devices M2_3 slot Chipset support mode (default, from Chipset ) - supports PCIe 3.0 x2 CPU support mode (From CPU) - supports PCIe 4.0/ 3.0 x4 M2_4 slot Supports PCIe 3.0 x4 Supports 2280 storage devices
Audio Realtek ALC1220P Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Internal I/O Ports 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connector 1x 6-pin PCIE power connector 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR LED connector, 1x Clear CMOS jumper 1x Power button, 1x Reset button
TPM (Trusted Platform Module ) 1x TPM module connector

Warranty Information

Manufacturing Warranty 3 Years

Others

Special Features WIRELESS LAN & BLUETOOTH Intel Wi-Fi 6 AX200 The Wireless module is pre-installed in the M2_WIFI1 (Key-E) slot MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps 802.11 a/ b/ g/ n/ ac/ ax Bluetooth 5.1
Part ID: #CAN-02068 Last Updated: 1 month ago
