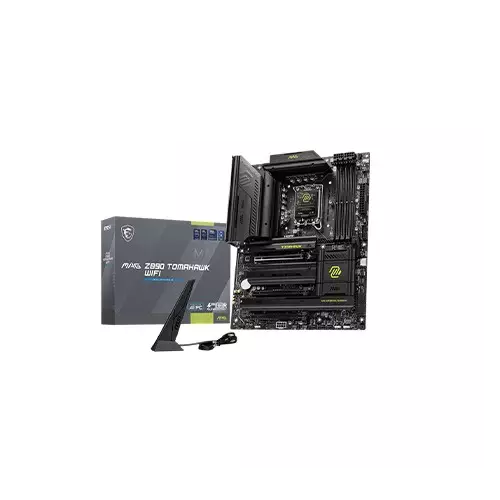

MSI MAG Z890 TOMAHAWK WIFI LGA 1851 Intel Motherboard

Status
In Stock
2 stores
Lowest 48,500 BDT
Price Range 48,500 to 49,499 BDT Save 2%
MSI MAG Z890 TOMAHAWK WIFI LGA 1851 Intel Motherboard

Product Description

Engineered by MSI, this motherboard is designed for **AM4** socket processors, featuring a **ATX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **48,500 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-10463 Last Updated: 6 hours ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
PC House MSI MAG Z890 TOMAHAWK WIFI LGA 1851 Intel Motherboard
In Stock 48,500 7 hours ago
Creatus Computer MSI MAG Z890 TOMAHAWK WIFI LGA 1851 ATX Motherboard
In Stock 49,499 7 hours ago

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Supports Intel Core Ultra Processors (Series 2) LGA 1851
Chipset INTEL Z890
BIOS Flash BIOS Button
Form Factor ATX

Expansion Slots

PCI 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
M.2 Socket 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G

Memory

Type DDR5
Slots 4x DDR5 UDIMM
Supported Memory Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Maximum Memory 256GB

Graphics

Graphics 1x HDMI™ Support HDMI™ 2.1 with FRL, maximum resolution of 4K 120Hz* 2x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 1.4 over USB Type-C®, with a maximum resolution of 4K 120Hz / 8K 60Hz*

Connector & Ports

HDMI 1x HDMI 2.1
USB (s) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1 USB 10Gbps Type-A USB 5Gbps Type-A USB 10Gbps Type-C USB 5Gbps Type-A
LAN Port (s) Intel Killer E5000 5Gbps LAN
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio Audio Connectors
Internal I/O Ports 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
Wireless Communication module Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM

Others

Special Features 4x EZ Debug LED 1x EZ Digit Debug LED

Warranty Information

Warranty 3 Year
Part ID: #CAN-10463 Last Updated: 6 hours ago
About MSI MAG Z890 TOMAHAWK WIFIThe MSI MAG Z890 TOMAHAWK WIFI is a high-tier ATX motherboard designed to serve as a rugged, high-performance backbone for Intel’s LGA 1851 socket. Specifically engineered for Intel Core Ultra processors (Series 2), this board carries forward the legendary TOMAHAWK legacy, combining a sleek, stealth-black military aesthetic with cutting-edge engineering meant for intense gaming, content creation, and heavy multitasking.Power delivery is a major strength of this motherboard. It features a massive digital power phase design, cooled by heavy-duty extended VRM heatsinks and high-quality thermal pads to guarantee absolute system stability under sustained workloads. In the memory department, it supports four dual-channel DDR5 DIMM slots, utilizing an optimized routing layout to achieve incredibly fast overclocked memory speeds, allowing users to unlock the full potential of next-gen high-bandwidth RAM.When it comes to graphics and storage, the Z890 TOMAHAWK is thoroughly future-proof. It boasts a primary PCIe 5.0 x16 slot with heavy-duty Steel Armor to easily support and protect massive modern graphics cards. For ultra-fast storage, it offers multiple M.2 slots, led by a premier PCIe 5.0 x4 M.2 slot directly linked to the CPU. All storage slots are covered by MSI’s M.2 Shield Frozr to keep high-speed NVMe SSDs running cool and prevent thermal throttling.Connectivity is arguably the board's most impressive upgrade. The rear I/O features dual Thunderbolt 4 / USB4 Type-C ports capable of blistering 40Gbps speeds, alongside a wealth of high-speed USB ports, HDMI 2.1, and DisplayPort 1.4. Networking is equally elite, sporting cutting-edge Wi-Fi 7 with an ultra-wide frequency range and a blazing-fast 5Gbps LAN port for lag-free gaming. Tool-less EZ M.2 clips and EZ Debug LEDs round out this premium, reliable, and performance-driven package.
