Product Description

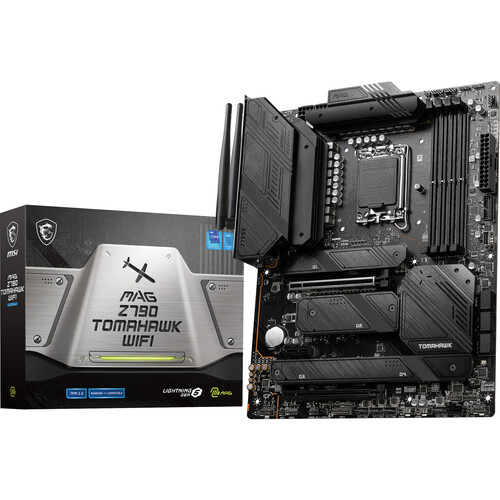

High-Performance Gaming and Content Creation with the MSI MAG Z790 TOMAHAWK WIFI DDR4 ATX Motherboard
Designed for enthusiasts and professionals, the MSI MAG Z790 TOMAHAWK WIFI DDR4 ATX Motherboard offers a robust platform for 14th/13th/12th Gen Intel Core Processors, delivering exceptional performance and seamless connectivity for gaming, content creation, and other demanding applications.
Key Features and Technical Specifications
Technical Highlights:
- Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold, and Celeron Processors with LGA 1700 socket
- Four DDR4 RAM slots with speeds up to 5333 MHz and maximum capacity of 128GB
- Seven SATA III ports and four M.2 connections for ample storage options
- PCIe 5.0 x16, PCIe 4.0 x16, and PCIe 3.0 x1 slots for versatile expansion card support
- 2.5 GbE Intel LAN and Wi-Fi 6E with Bluetooth 5.2 for reliable and fast networking
Proprietary Technologies and Features
Advanced Features:
The MSI MAG Z790 TOMAHAWK WIFI DDR4 ATX Motherboard boasts a range of innovative features, including the Realtek ALC4080 audio codec for immersive 7.1 channel surround sound, and ample USB ports for connecting peripherals. Additionally, the motherboard supports various RGB lighting options and includes a TPM module for enhanced security.
Part ID: #CAN-01379
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
MSI MAG Z790 TOMAHAWK WIFI DDR4 ATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
Computer Village
MSI MAG Z790 TOMAHAWK WIFI DDR4 12th and 13th Gen ATX Motherboard
|
In Stock | 38,500 | 4 hours ago | |
|
PC House
MSI MAG Z790 TOMAHAWK WIFI DDR4 Intel 12th and 13th Gen ATX Motherboard
|
In Stock | 38,500 | 4 hours ago | |
|
TechLand BD
MSI MAG Z790 TOMAHAWK WIFI DDR4 INTEL 12TH AND 13TH GEN ATX MOTHERBOARD
|
In Stock | 39,500 | 4 hours ago | |
|
Nexus Computer
MSI MAG Z790 TOMAHAWK WiFi DDR4 13th & 12th Gen ATX Motherboard
|
Check Stock | Call for Price | 3 hours ago | |
|
Creatus Computer
MSI MAG Z790 TOMAHAWK WIFI DDR4 Intel 12th and 13th Gen ATX Motherboard
|
Check Stock | 33,000 | 1 week ago | |
|
UCC
MSI MAG Z790 TOMAHAWK WIFI DDR4 13th Gen ATX Motherboard
|
Check Stock | 39,900 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA1700
Chipset
Intel Z690 Chipset
Form Factor
ATX Form Factor 243.84mmx304.8mm
Audio
Realtek ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on the front panel
Expansion Slots
PCI
2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From the Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
M.2 Socket
4x M.2 slots
Memory
Type
DDR4
Slots
4 x DIMM
Supported Memory
4x DDR4, Maximum Memory Capacity 128GB Max. overclocking frequency: 1DPC 1R Max speed up to 5333+ MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile
Maximum Memory
128GB
Graphics
Graphics
1x HDMI 1x DisplayPort Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, the maximum resolution of 8K 60Hz
Connector & Ports
HDMI
1x HDMI 2.1
Display Port (s)
1x DisplayPort 1.4
USB (s)
4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)
Intel 2.5Gbps LAN
Wireless Communication module
Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMA
Supported Storage
4x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices 7x SATA 6G port
Audio
1x Front Audio (JAUD)
Internal I/O Ports
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
LED FEATURE: 4x EZ Debug LED
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
MAG Z790 TOMAHAWK WIFI DDR4
Supported CPU
14th/13th/12th Gen Core, Pentium Gold & Celeron Processor (LGA 1700)
Supported RAM
4x DDR4, 5333+MHz (OC), Max 128GB
Graphics Output
1x HDMI, 1x DisplayPort
Features
2.5G LAN with Wi-Fi 6E Solution
Part ID: #CAN-01379
Last Updated: 1 month ago
