Product Description

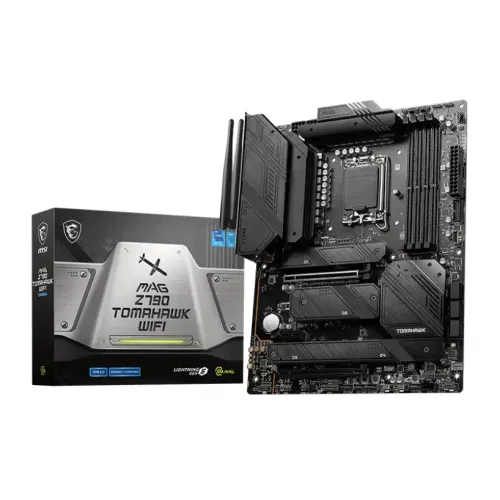

Engineered by MSI, this motherboard is designed for **LGA1700** socket processors, built on the **Z790** chipset, featuring a **ATX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **39,700 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01139
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Creatus Computer
MSI MAG Z790 TOMAHAWK WIFI 12th and 13th Gen ATX Motherboard
|
In Stock | 39,000 | 2 hours ago | |
|
Star Tech
MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard
|
In Stock | 39,700 | 2 hours ago | |
|
UCC
MSI MAG Z790 TOMAHAWK WIFI 13th Gen ATX Motherboard
|
In Stock | 39,900 | 2 hours ago | |
|
PC House
MSI MAG Z790 TOMAHAWK WIFI 12th and 13th Gen ATX Motherboard
|
Check Stock | 42,000 | 2 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA1700
Chipset
Intel Z690 Chipset
Form Factor
ATX 243.84mmx304.8mm
Audio
Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Expansion Slots
PCI
2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
M.2 Socket
4x M.2 slots
Memory
Type
DDR5
Slots
4 x DIMM
Supported Memory
Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory
192GB
Graphics
Graphics
1x HDMI Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz*
Connector & Ports
HDMI
1x HDMI 2.1
Display Port (s)
1x DisplayPort 1.4
USB (s)
4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)
Intel 2.5Gbps LAN
Wireless Communication module
Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA
Supported Storage
4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 7x SATA 6G
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio
1x Front Audio (JAUD)
Internal I/O Ports
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
LED FEATURE: 4x EZ Debug LED
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
MAG Z790 TOMAHAWK WIFI
Supported CPU
14th/13th/12th Gen Core, Pentium Gold & Celeron Processor (LGA 1700)
Supported RAM
4x DDR5, 7200+(OC), Max 192GB
Graphics Output
1x HDMI, 1x DisplayPort
Features
2.5G LAN with Wi-Fi 6E Solution
Part ID: #CAN-01139
Last Updated: 2 days ago
MSI MAG Z790 TOMAHAWK WIFI 14th Gen Motherboard is equipped with an Intel Z790 chipset and LGA 1700 socket. This 14th-generation motherboard has four DDR5 RAM slots supporting dual channel memory and speeds up to 7200 MHz when overclocked. Seven SATA III and four M.2 interfaces provide ample room for storage and support RAID 0, 1, 5, and 10. Install GPUs or other adapter cards via PCIe 5.0 x16, PCIe 4.0 x16, and PCIe 3.0 x1 slots. Take advantage of fast networking with a 2.5 GbE Intel LAN and Wi-Fi 6E; connect to wireless peripherals with ease using Bluetooth 5.2. The Realtek ALC4080 audio codec supports 7.1 channel surround sound, while rear ports allow for analog or digital output. Connect wired peripherals via four USB 3.2 Gen 1 and four Gen 2 Type-A ports, or via USB 3.2 Gen 2 and 2x2 Type-C ports. Output video via DisplayPort and HDMI. The rear I/O panel also sports Clear CMOS and Flash BIOS buttons. Internal headers provide support for front-panel USB 3.2 Gen 2 Type-C and USB 3.2 Gen 1 and 2.0 Type-A ports, RGB connectors, chassis intrusion, a TPM module, and more. Wi-Fi 6E supports the 6 GHz spectrum, MU-MIMO, and BSS color technology and delivers speeds up to 2400 Mb/s.Buy MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard from Star TechIn Bangladesh, you can get original MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard From Star Tech. We have a large collection of latest MSI Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The MSI MAG Z790 TOMAHAWK WIFI Motherboard comes with 3 years warranty.
