Product Description

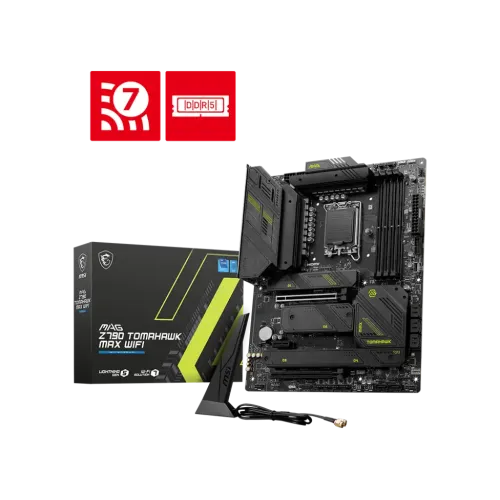

MSI MAG Z790 TOMAHAWK MAX WIFI Motherboard
The MSI MAG Z790 TOMAHAWK MAX WIFI Motherboard is designed for gamers and enthusiasts who demand high-performance and cutting-edge technology. This motherboard delivers a lightning-fast gaming experience with its advanced features and premium components.
Key Features and Performance Highlights- Supports Intel Core 14th/13th/12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
- Up to 7800+(OC) DDR5 memory overclocking for lightning-fast data access and system performance
- PCIe 5.0 slot and Lightning Gen 5 M.2 for speedy data transfer
- USB 3.2 Gen 2x2 for high-speed networking
- Supports Wi-Fi 7 and 2.5Gbps LAN for fast and reliable networking
The MSI MAG Z790 TOMAHAWK MAX WIFI Motherboard features a range of advanced technologies and features that enhance its performance and usability. These include:
AUDIO BOOST 5 for studio-grade sound quality, ensuring an immersive audio experience for gaming and multimedia.
Premium Thermal Solution with an expanded heatsink design and M.2 Shield Frozr, effectively dispersing heat and avoiding thermal throttling during intense workloads.
6-layer PCB manufactured from 2oz thicker copper and server-grade components, ensuring endurance and reliability.
Upgrade your gaming rig with the MSI MAG Z790 TOMAHAWK MAX WIFI Motherboard and experience unparalleled performance and features.
Part ID: #CAN-01391
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
MSI MAG Z790 TOMAHAWK MAX WIFI ATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
Ultra Technology
MSI MAG Z790 TOMAHAWK MAX WIFI 13th Gen ATX Motherboard
|
In Stock | 41,500 | 4 hours ago | |
|
Computer Village
MSI MAG Z790 TOMAHAWK MAX WIFI ATX Motherboard
|
In Stock | 41,700 | 4 hours ago | |
|
Skyland BD
MSI MAG Z790 TOMAHAWK MAX WIFI ATX Motherboard
|
In Stock | 42,000 | 4 hours ago | |
|
PC House
MSI MAG Z790 TOMAHAWK MAX WIFI ATX Motherboard
|
Check Stock | 41,500 | 4 hours ago | |
|
UCC
MSI MAG Z790 TOMAHAWK MAX WIFI 13th Gen ATX Motherboard
|
Check Stock | 42,500 | 5 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Chipset
Intel Z790 Chipset
Form Factor
ATX 243.84mmx304.8mm
Audio
Realtek ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-Bit/384 kHz playback on the front panel
Expansion Slots
PCI
2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
M.2 Socket
4x M.2 slots
Memory
Type
DDR5
Slots
4 x DIMM
Supported Memory
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory
192GB
Graphics
Graphics
1x HDMI Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz*
Connector & Ports
HDMI
1x HDMI 2.1
Display Port (s)
1x DisplayPort 1.4
USB (s)
4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)
Intel 2.5Gbps LAN
Wireless Communication module
Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM
Supported Storage
4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 8x SATA 6G
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio
Audio Connectors
Internal I/O Ports
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3)
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
LED FEATURE: 4x EZ Debug LED
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
MAG Z790 TOMAHAWK MAX WIFI
Supported CPU
14th/13th/12th Gen Core, Pentium Gold & Celeron Processor (LGA 1700)
Supported RAM
4x DDR5, 7800+(OC), Max 192GB
Graphics Output
1x HDMI, 1x DisplayPort
Features
2.5Gbps LAN with Wi-Fi 7 Solution
Part ID: #CAN-01391
Last Updated: 1 month ago
