Status
In Stock
5 listings tracked
Lowest Deal
25,500
Best Deal
Price Range
Single price listing
Product Description
Engineered by MSI, this motherboard is supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. You can buy this component starting from **25,500 ৳**, compared dynamically across 5 major computer shops.
Part ID: #CAN-01660
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Creatus Computer

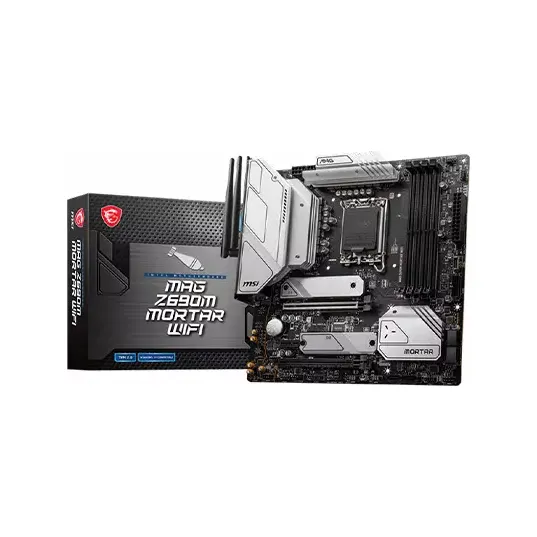

MSI MAG Z690M MORTAR WIFI 12th Gen Micro-ATX Motherboard
|
In Stock | Call for Price | 2 hours ago | |
|
Nexus Computer
MSI MAG Z690M MORTAR WIFI 12th Gen Motherboard
|
In Stock | 25,500 | 2 hours ago | |
|
Sell Tech
MSI MAG Z690M MORTAR WIFI 12th Gen Micro-ATX Motherboard
|
Check Stock | Call for Price | 2 hours ago | |
|
TechLand BD
MSI MAG Z690M MORTAR WIFI 12TH GEN INTEL MOTHERBOARD
|
Check Stock | 25,500 | 2 hours ago | |
|
PC House
MSI MAG Z690M MORTAR WIFI 12TH GEN INTEL MOTHERBOARD
|
Check Stock | 25,550 | 2 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
1x Realtek® 8125BG 2.5Gbps LAN controller
USB
1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector 4x USB 2.0 ports on the back panel USB Hub-GL3590 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel USB Hub-GL850G 4x USB 2.0 ports available through internal connectors
WiFi
The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax
Audio
Realtek® ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Slots
2x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIe 4.0 x16 PCI_E3 slot (From Z690 Chipset) Supports PCIe 3.0 x4 1x PCIe 3.0 x1 slot
Memory
4x DDR5 memory slots, support up to 128GB Supports 1R 4800 MHz (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 6200+ MHz 1DPC 2R Max speed up to 5200+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Intel® XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Chipset
Intel Z690 Chipset
Graphics
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
Warranty
3 years
Bluetooth
Supports Bluetooth® 5.2 , FIPS, FISMA
Dimension
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Multi-GPU
Supports 2-Way AMD® CrossFire™ Technology
Form Factor
Micro-ATX Form Factor
Supported CPU
Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors Processor socket LGA1700
Supported Storage
4x SATA 6Gb/s ports (SATA5~8, from Z690 Chipset) 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel® Optane™ Memory
External I/O Ports
USB 2.0 Port DisplayPort 1.4 USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI 2.1 Port USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT
Internal I/O Ports
1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connector
Part ID: #CAN-01660
Last Updated: 2 days ago
MSI MAG Z690M MORTAR WIFI 12th Gen Micro-ATX Motherboard The MSI MAG Z690M MORTAR WIFI Motherboard supports 12th Gen Intel Core/ Pentium Celeron processors for LGA 1700 socket. It supports DDR5 Memory, up to 6666+(OC) MHz. A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with a dedicated SMT welding process and MSI Memory Boost technology, MAG Z690M MORTAR WIFI is ready to deliver world-class memory performance. It delivers a Lightning Fast Game experience with PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2. It comes with an Enhanced Power Design. Direct 18+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost. It is equipped with an enlarged heatsink with heat pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads, and M.2 Shield Frozr are built for a high-performance system and non-stop gaming experience. 16.8 million colors / fancy lighting effects can be controlled in one click. MYSTIC LIGHT SYNC supports RGB, RAINBOW(ARGB), Corsair LED strips, and Ambient devices. The MSI MAG Z690M MORTAR WIFI comes with a 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution. Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. It has an 8-layer PCB made of 2oz thickened copper and server-grade level material. The MSI MAG Z690M MORTAR WIFI comes with 3 years of warranty.
