Product Description

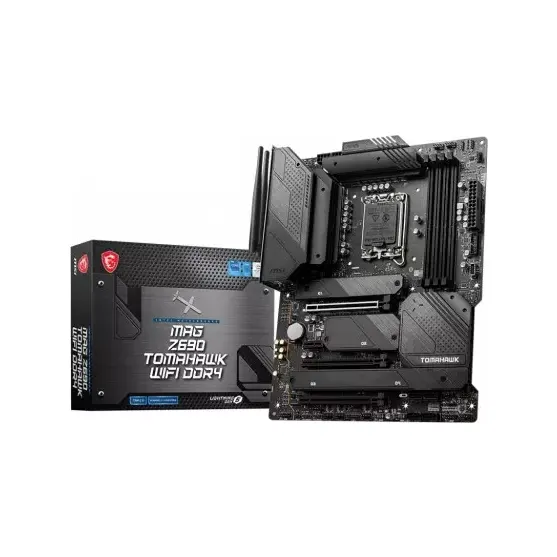

Upgrade Your Gaming Experience with the MSI MAG Z690 TOMAHAWK WIFI DDR4
Take your gaming to the next level with the MSI MAG Z690 TOMAHAWK WIFI DDR4 motherboard, designed for enthusiasts and professionals who demand extreme performance and reliability. This powerful ATX motherboard is engineered to deliver exceptional speed, stability, and features to meet the needs of 12th Gen Intel Core processors.
Key Features and BenefitsThis motherboard boasts an impressive array of features, including:
- Support for 12th Gen Intel Core, Pentium Gold, and Celeron Processors - LGA 1700 socket ensures seamless compatibility and upgradeability.
- DDR4 Memory Up to 5200 MHz - Take advantage of high-speed memory to boost system performance.
- 2.5G LAN and Intel Wi-Fi Solution - Enjoy fast and secure networking with 2.5Gbps LAN and Wi-Fi 6 connectivity.
- Lightning M.2 and USB 3.2 Gen 2x2 - Maximize storage and peripheral performance with PCIe Gen 5 and 20Gbps USB 3.2 Gen 2x2.
- AUDIO BOOST 5 and Multi-GPU Support - Experience immersive gaming audio and unleash the power of multi-GPU configurations.
The MSI MAG Z690 TOMAHAWK WIFI DDR4 motherboard features several proprietary technologies designed to enhance performance and reliability, including:
Extended Heatsink Design and M.2 Shield Frozr - A robust cooling system ensures stable operation and prolonged lifespan.
Lightning USB 20G and AUDIO BOOST 5 - Accelerate data transfer and audio processing with high-speed USB and advanced audio codecs.
8-Layer PCB and Server-Grade Materials - A robust and reliable PCB ensures stable operation and long-term durability.
Part ID: #CAN-01699
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Sell Tech
MSI MAG Z690 TOMAHAWK WIFI DDR4 12th Gen ATX Motherboard
|
Check Stock | Call for Price | 5 hours ago | |
|
Sell Tech
MSI MAG Z690 TOMAHAWK WIFI 12th Gen ATX Motherboard
|
Check Stock | Call for Price | 5 hours ago | |
|
Creatus Computer
MSI MAG Z690 TOMAHAWK WIFI DDR4 12th Gen ATX Motherboard
|
Check Stock | 34,800 | 1 week ago | |
|
PC House
MSI MAG Z690 TOMAHAWK WIFI DDR4 12th Gen ATX Motherboard
|
Check Stock | 36,250 | 5 hours ago | |
|
TechLand BD
MSI MAG Z690 TOMAHAWK WIFI DDR4 12th Gen ATX Motherboard
|
Check Stock | 36,300 | 5 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
1x Intel I225V 2.5Gbps LAN controller
USB
Intel Z690 Chipset: 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel 4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector, 3 Type-A ports on the back panel) 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal connector) 1x USB 2.0 Type-A port on the back panel Hub-GL850G: 5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors)
Audio
Realtek ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Slots
3x PCIe x16 slots PCI_E1 (From CPU) Support up to PCIe 5.0 x16 PCI_E3 (From Z690 chipset) Support up to PCIe 3.0 x4 PCI_E4 (From Z690 chipset) Support up to PCIe 3.0 x1 1x PCIe 3.0 x1 slot (From Z690 chipset) 4x M.2 slots (Key M)
Memory
Type: DDR4 Slots: 4 x DIMM Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5200+ MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) Maximum Memory: 128GB
Chipset
Intel Z690 Chipset
Graphics
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz Supports AMD CrossFire Technology
Warranty
03 Years
Form Factor
ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Supported CPU
Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1700
Supported Storage
6x SATA 6Gb/s ports (From Z690 chipset) 4x M.2 slots (Key M) M2_1 slot (From CPU) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (From Z690 chipset) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_3 slot (From Z690 chipset) Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_4 slot (From Z690 chipset) Supports up to PCIe 4.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready for M.2 slots from Z690 Chipset Supports Intel Smart Response Technology for Intel Core processors RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
External I/O Ports
HDMI: 1x HDMI 2.1 Display Port (s): 1x DisplayPort 1.4
Internal I/O Ports
1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Tuning Controller connector
