Product Description
Cutting-Edge Performance for Power Users

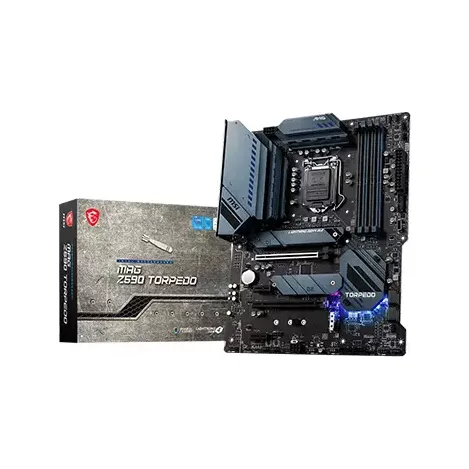

The MSI MAG Z590 TORPEDO is designed for serious gamers and content creators who demand exceptional performance and reliability. With its robust feature set and support for 10th Gen and 11th Gen Intel Core processors, this ATX motherboard sets the stage for unparalleled computing experiences.
Key Features and Benefits- High-bandwidth and low-latency 2.5G plus Gigabit LAN for lightning-fast data transfer speeds
- Onboard 2.5Gbps connectivity for incredible data transfer speed, faster than ever before
- Support for 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket
- DDR4 Memory support, up to 5333(OC) MHz for seamless multitasking and content creation
- Lightning M.2, running at PCIe Gen4 x4, maximizes performance for NVMe based SSDs
- Lightning USB 20G, powered by USB 3.2 Gen2x2 controller, offering unprecedented USB speeds up to 20Gb/s
Thermal and Power Solutions - Extended Heatsink Design and M.2 Shield Frozr ensure even high-end Intel CPUs run at full speed. MSI's extended PWM heatsink and enhanced circuit design guarantee optimal thermal and power management.
Network and Storage Solutions - The onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag. Lightning M.2 storage solution offers up to 64 Gb/s transfer speeds, while Lightning USB 20G enables USB speeds up to 20Gb/s.
Part ID: #CAN-01725
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
PC House
MSI MAG Z590 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard
|
In Stock | Call for Price | 4 hours ago | |
|
Sell Tech
MSI MAG Z590 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard
|
Check Stock | Call for Price | 4 hours ago | |
|
TechLand BD
MSI MAG Z590 TORPEDO 10th Gen and 11th Gen ATX Motherboard
|
Check Stock | 22,300 | 4 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
1x Intel I225-V 2.5Gbps LAN controller 1x Intel I219-V 1Gbps LAN controller
USB
Intel Z590 Chipset 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector) 1x USB 2.0 Type-A port on the back panel Hub-GL850G 5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors)
HDMI
HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
Audio
Realtek ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Slots
2x PCIe x16 slots 1x PCIe 3.0 x16 slot (from CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU PCI_E3 (From Z590 chipset) Support up to PCIe 3.0 x4 2x PCIe 3.0 x1 slots (From Z590 chipset)
Memory
4x DDR4 memory slots, support up to 128GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5333 MHz 1DPC 2R Max speed up to 4700+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Chipset
Intel Z590 Chipset
Graphics
HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Warranty
3 Year
Dimension
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Multi-GPU
Supports 2-Way AMD CrossFire Technology
Form Factor
ATX
Supported CPU
Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA1200
Supported Storage
6x SATA 6Gb/s ports (From Z590 chipset) 1 3x M.2 slots (Key M) M2_1 slot (From CPU) Available only on 11th Gen Intel CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_21 & M2_3 2 slot (From Z590 chipset) Supports up to PCIe 3.0 x4 Supports SATA up to 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready 3 Supports Intel Smart Response Technology for Intel Core processors
External I/O Ports
DisplayPort USB 2.0 Gigabit LAN Port 2.5G LAN Port HD Audio Connectors HDMI Flash BIOS Button USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2 10Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT
Internal I/O Ports
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 1x 6-pin PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Tuning Controller connector
