Product Description

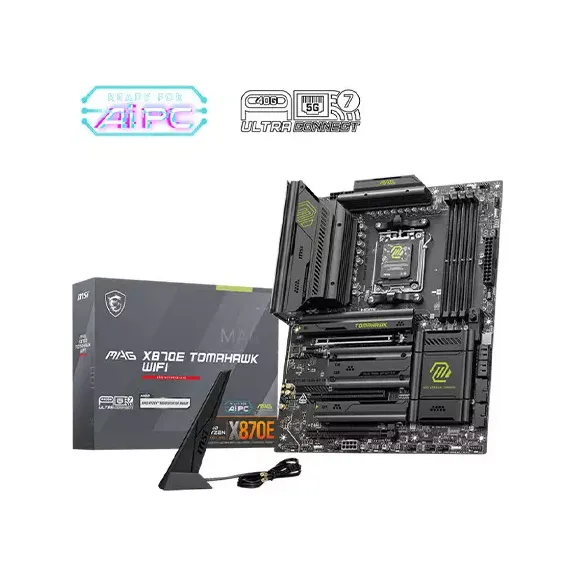

Engineered by MSI, this motherboard is designed for **AM5** socket processors, featuring a **ATX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. Currently, the lowest price in Bangladesh for this item is **47,500 ৳**, with active inventory listings tracked from TechLand BD, UCC.
Part ID: #CAN-01467
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
CPU
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5
LAN
1x Realtek 8126 5G LAN
USB
4x USB 2.0 (Rear)4x USB 2.0 (Front)3x USB 5Gbps Type A (Rear)4x USB 5Gbps Type A (Front)2x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Rear)1x USB 20Gbps Type C (Front)2x USB 40Gbps Type C (Rear)
Audio
Realtek ALC4080 Codec7.1-Channel USB High Performance AudioSupports up to 32-bit/384kHz playback on front panelSupports S/PDIF output
Wi-Fi
The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ be
Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GBMemory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/sRyzen™ 9000 Series Processors max. overclocking frequency:• 1DPC 1R Max speed up to 8400+ MT/s• 1DPC 2R Max speed up to 6400+ MT/s• 2DPC 1R Max speed up to 6400+ MT/s• 2DPC 2R Max speed up to 6400+ MT/sSupports AMD POR Speed and JEDEC SpeedSupports Memory Overclocking and AMD EXPO™Supports Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM, Clock Driver bypass mode only*
Chipset
AMD X870E
Storage
4x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devicesM.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices4x SATA 6GM.2_1 slot (From CPU)• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)M.2_2 slot (From CPU)• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
Graphics
1x HDMISupport HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*2x Type-C DisplayPortUSB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz
Bluetooth
Supports Bluetooth 5.4**, MLO, 4KQAM
Form Factor
ATX243.84mmx304.8mm
PCI Card Slot
3x PCI-E x16 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)PCI_E1 slot• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
LED Indicators
4x EZ Debug LED1x EZ Digit Debug LED
Other Features
•Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices•Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Operating System
Support for Windows 11 64-bit
