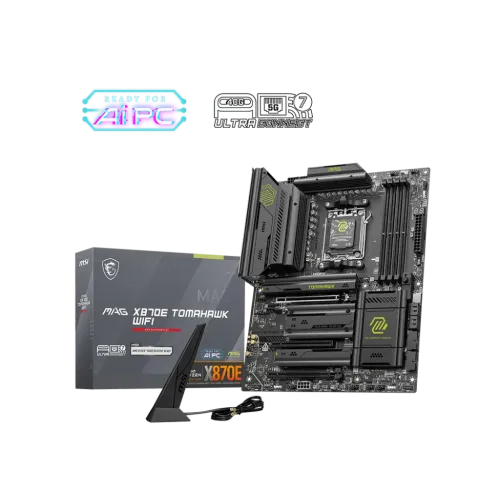

MSI MAG X870E TOMAHAWK WIFI AM5 ATX Motherboard

Status
In Stock
4 stores
Lowest 47,500 BDT
Price Range Single price listing
MSI MAG X870E TOMAHAWK WIFI AM5 ATX Motherboard

Product Description

Unleash Unparalleled Performance with the MSI MAG X870E TOMAHAWK WIFI AM5 ATX Motherboard

The MSI MAG X870E TOMAHAWK WIFI AM5 ATX Motherboard is engineered for gamers and power users who demand the best. This powerhouse platform delivers unmatched stability, thermal performance, and cutting-edge connectivity, ensuring a seamless gaming and productivity experience.

Key Features and Technical Specifications

  • Supports AMD Ryzen 9000/ 8000/ 7000 Series Processors Socket AM5
  • 4x DDR5 DIMM slots, supporting up to 256GB of memory with speeds up to DDR5 8400+ MT/s
  • Triple PCIe x16 slots, including one PCIe 5.0 x16 slot for next-gen GPUs
  • Four ultra-fast M.2 slots, supporting RAID 0/1/5/10 configurations and up to 5.8Gbps wireless throughput
  • Realtek 8126 5G LAN and Wi-Fi 7 module with Bluetooth 5.4 and HDMI 2.1 support
  • Audio powered by Realtek ALC4080, offering 7.1-channel high-resolution output with Audio Boost 5

Advanced Technologies and Features

Proprietary Technologies

The MSI MAG X870E TOMAHAWK WIFI AM5 ATX Motherboard features several cutting-edge technologies that enhance performance and user experience. The 14+2+1 Duet Rail Power System ensures stable power delivery, while the Frozr Guard, thermal pads, and extended heatsinks guarantee optimal cooling. Additionally, the motherboard includes EZ Debug LEDs, EZ M.2 Clip II, and EZ PCIe Release for simplified DIY building.

Design and Build Quality

The motherboard is built with an 8-layer PCB made with 2oz thickened copper, ensuring signal integrity and consistent performance. Double-latch DIMM slots boost installation reliability, while the extended heatsinks and thermal pads provide excellent heat dissipation.

Part ID: #CAN-01158 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Creatus Computer MSI MAG X870E TOMAHAWK WIFI AM5 ATX Motherboard
In Stock 46,999 5 hours ago
Buy Now
Star Tech MSI MAG X870E TOMAHAWK WIFI AM5 ATX Motherboard
In Stock 47,500 1 week ago
Buy Now
PCB Store MSI MAG X870E TOMAHAWK WIFI AM5 ATX Motherboard
In Stock 47,900 5 hours ago
Buy Now
Skyland BD MSI MAG X870E TOMAHAWK WIFI AM5 ATX Motherboard
In Stock 48,500 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset AMD X870E
Form Factor ATX 243.84mmx304.8mm
Audio Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-bit/384kHz playback on front panel Supports S/PDIF output

Expansion Slots

PCI 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
M.2 Socket 4x M.2

Memory

Type DDR5
Slots 4x DIMMs
Supported Memory Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
Maximum Memory 256GB

Graphics

Graphics 1x HDMI Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz 2x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz

Connector & Ports

HDMI 1x HDMI
Display Port (s) 2x Type-C DisplayPort
USB (s) 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear)
LAN Port (s) 1x Realtek 8126 5G LAN
Wireless Communication module Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4, MLO, 4KQAM
Supported Storage M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M.2_1 slot (From CPU) • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M.2_2 slot (From CPU) • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors)
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices *RAID 5 configuration is only supported by Ryzen 9000 series processors. *RAID 10 for M.2 NVMe storage devices is only supported by Ryzen 9000/7000 series processors.
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)

Others

Special Features 4x EZ Debug LED 1x EZ Digit Debug LED

Warranty Information

Manufacturing Warranty 3 Years

Key Features

Model MAG X870E TOMAHAWK WIFI
Supported CPU Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM 4x DDR5, up to 8400 (OC) MT/s
Graphics Output 1x HDMI, 2x Type-C DisplayPort
Features Realtek 8126 5G LAN, Wi-Fi 7, Bluetooth 5.4
Part ID: #CAN-01158 Last Updated: 1 month ago
