Product Description

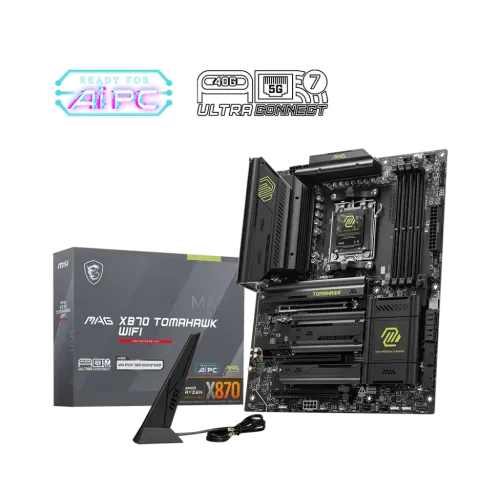

Engineered by MSI, this motherboard is designed for **AM5** socket processors, featuring a **ATX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **45,600 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01157
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Creatus Computer
MSI MAG X870 Tomahawk Wifi AM5 ATX motherboard
|
In Stock | 45,500 | 3 hours ago | |
|
Sell Tech
MSI MAG X870 TOMAHAWK WIFI AM5 Motherboard
|
In Stock | 45,500 | 3 hours ago | |
|
Star Tech
MSI MAG X870 TOMAHAWK WIFI AM5 Motherboard
|
In Stock | 45,600 | 3 hours ago | |
|
Skyland BD
MSI MAG X870 TOMAHAWK WIFI AM5 Motherboard
|
In Stock | 45,900 | 2 hours ago | |
|
Nexus Computer
MSI MAG X870 TOMAHAWK WIFI AM5 Motherboard
|
In Stock | 46,200 | 2 hours ago | |
|
PCB Store
MSI MAG X870 TOMAHAWK WIFI AM5 Motherboard
|
Check Stock | 45,800 | 3 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset
AMD X870
Form Factor
ATX 304.8mmx243.84mm
Audio
Realtek ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-bit/384kHz playback on the front panel Supports S/PDIF output
Expansion Slots
PCI
3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Memory
Type
DDR5
Slots
4x UDIMM
Supported Memory
Support DDR5 8400+(OC)/ 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
Maximum Memory
256GB
Graphics
Graphics
1x HDMI Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz 2x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz
Connector & Ports
HDMI
1x HDMI
Display Port (s)
2x Type-C DisplayPort
USB (s)
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear)
LAN Port (s)
Realtek 8126-CG 5G LAN
Wireless Communication module
Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage
4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices * The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors. ** USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports
RAID
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Internal I/O Ports
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED 1x EZ Digit Debug LED
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
MAG X870 TOMAHAWK WIFI
Supported CPU
Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
Supported RAM
4x DDR5 8400+(OC) MHz
Graphics Output
1x HDMI, 2x Type-C Display Port
Features
Realtek 8126-CG 5G LAN, Wi-Fi 7
Part ID: #CAN-01157
Last Updated: 2 days ago
The MSI MAG X870 TOMAHAWK WIFI AM5 Motherboard is a high-performance motherboard designed to support AMD Ryzen 9000, 8000, and 7000 series desktop processors, providing an exceptional foundation for gaming and professional use. It supports DDR5 memory with dual-channel DDR5 8400+ MT/s (overclocked), ensuring lightning-fast performance for even the most demanding applications. With an advanced 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, and MSI's Core and Memory Boost technologies, this motherboard offers powerful and stable performance. Its 8-layer PCB made of 2oz thickened copper and server-grade materials ensures reliability and durability. The Frozr Guard cooling solution, which includes an extended heatsink, MOSFET thermal pads rated for 7W/mK, and additional choke thermal pads, keeps your system running cool even under heavy loads. The EZ M.2 Shield Frozr II enhances thermal performance for M.2 SSDs. This motherboard also includes EZ DIY features such as the EZ M.2 Clip II, EZ PCIe Release, and EZ Antenna, making building your PC a breeze. For the ultimate gaming experience, the Lightning Fast Game Experience is delivered through a PCIe 5.0 slot and Lightning Gen 5 x4 M.2. Connectivity is enhanced with Ultra Connect, featuring USB4 and 5G LAN with Wi-Fi 7, offering secure, stable, and high-speed networking and data transmission capabilities, ideal for professional and multimedia use. Audio Boost 5 ensures studio-grade sound quality, providing an immersive audio experience for gaming enthusiasts.Buy MSI MAG X870 TOMAHAWK WIFI AM5 Motherboard from Star TechIn Bangladesh, you can get original MSI MAG X870 TOMAHAWK WIFI AM5 Motherboard From Star Tech. We have a large collection of latest MSI Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The MSI MAG X870 TOMAHAWK WIFI Motherboard comes with 3 years warranty.
