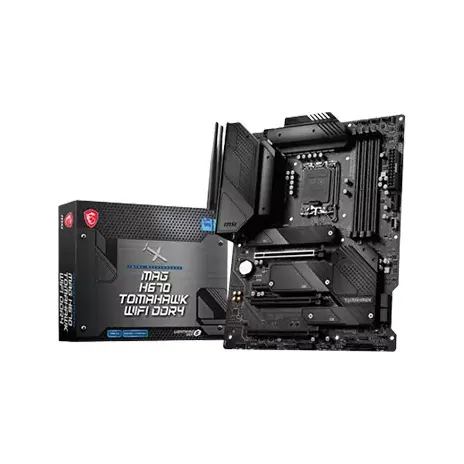

MSI MAG H670 TOMAHAWK WIFI DDR4 12th Gen ATX Motherboard

Status
In Stock
3 stores
Lowest 22,800 BDT
Price Range Single price listing
MSI MAG H670 TOMAHAWK WIFI DDR4 12th Gen ATX Motherboard

Product Description

Unlock Unparalleled Performance with the MSI MAG H670 TOMAHAWK WIFI DDR4 Motherboard

Designed for gaming enthusiasts and content creators who demand the best, the MSI MAG H670 TOMAHAWK WIFI DDR4 Motherboard offers a powerhouse of performance, cutting-edge features, and rock-solid reliability. With its robust build quality and advanced cooling solution, this motherboard is the perfect foundation for your next-generation gaming PC or content creation station.

Key Features and Benefits

  • Supports 12th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1700 socket
  • Up to 4800+(OC) MHz DDR4 memory support for lightning-fast data transfer
  • Premium Thermal Solution with Extended Heatsink Design and M.2 Shield Frozr for optimal cooling
  • 2.5G LAN and Intel Wi-Fi Solution for fast and reliable network connectivity
  • Lightning M.2 and USB 3.2 Gen 2x2 ports for maximum storage and data transfer speeds
  • Supports multi-GPU configurations with Steel armor PCIe slots

Advanced Cooling and Performance Technologies

The MSI MAG H670 TOMAHAWK WIFI DDR4 Motherboard boasts a range of innovative cooling and performance technologies, including:

  • Extended Heatsink Design - a premium thermal solution that keeps your system running smoothly even under intense loads.
  • M.2 Shield Frozr - a next-generation M.2 thermal solution that provides maximum protection for your SSD and ensures optimal performance.
  • Lightning Gen 5 PCI-E - a high-speed interface that delivers up to 128GB/s of bandwidth for lightning-fast data transfer.
Part ID: #CAN-01649 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Ultra Technology MSI MAG H670 TOMAHAWK WIFI DDR4 Motherboard
In Stock 22,800 5 hours ago
TechLand BD MSI MAG H670 TOMAHAWK WIFI DDR4 12th Gen ATX Motherboard
Check Stock 22,700 5 hours ago
UCC MSI MAG H670 TOMAHAWK WIFI DDR4 12th Gen ATX Motherboard
Check Stock 24,000 5 hours ago

Historical Pricing Trend

Product Specifications

General Specifications

LAN 1x Intel I225V 2.5Gbps LAN controller
USB 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel) 4x USB 3.2 Gen 1 5Gbps ports are available through the internal USB connectors) 6x USB 2.0 Type-A ports on the back panel USB Hub GL850G: 4x USB 2.0 ports are available through the internal USB connectors
WiFi Intel® Wi-Fi 6 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio
Slots 3x PCIe x16 slots PCI_E1 (From CPU): 1. Support up to PCIe 5.0 x16 PCI_E3 & PCI_E4 (From H670 chipset) 1. Support PCIe 3.0 x4 & 3.0 x1 1x PCIe 3.0 x1 slot (Fom H670 chipset)
Memory 4x DDR4 memory slots, support up to 128GB Supports 2133/ 2666/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz
Chipset Intel H670 Chipset
Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Warranty 03 Years
Bluetooth Supports Bluetooth® 5.2
Form Factor ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Supported CPU Supports 12th Gen Intel® Core™ Processors Processor socket LGA1700
Supported Storage 6x SATA 6Gb/s ports (From H670 chipset) 3x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (From H670 chipset) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_3 slot (From H670 chipset) Supports PCIe 4.0x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 and M2_3 support Intel® Optane™ Memory Support Intel® Smart Response Technology for Intel Core™ processors
External I/O Ports Keyboard / Mouse DisplayPort 1.4 USB 2.0 2.5G LAN Port Wi-Fi / Bluetooth Audio Connectors Flash BIOS Bottom USB 2.0 HDMI 2.1 Port USB 3.2 Gen 2x2 20Gbps Type-C USB 3.2 Gen 2 10Gbps Type-A
Internal I/O Ports 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x Tuning controller connector 1x TBT connector (Supports RTD3)
Part ID: #CAN-01649 Last Updated: 1 month ago
