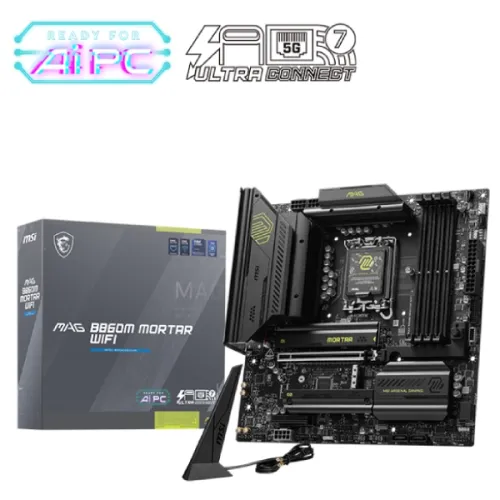

MSI MAG B860M MORTAR WIFI LGA 1851 mATX Motherboard

Status
In Stock
3 stores
Lowest 32,100 BDT
Price Range Single price listing
MSI MAG B860M MORTAR WIFI LGA 1851 mATX Motherboard

Product Description

MSI MAG B860M MORTAR WIFI LGA 1851 mATX Motherboard

The MSI MAG B860M MORTAR WIFI LGA 1851 mATX motherboard is the perfect choice for professionals, producers, and gamers seeking high-performance and multitasking capabilities. With its cutting-edge design and robust features, this motherboard is ideal for those who demand the best.

Key Features and Benefits

Technical Specifications:

  • Supports Intel Core Ultra Processors (Series 2) with LGA 1851 socket
  • DDR5 memory support with speeds up to 9200+ MT/s (overclocked) and a maximum capacity of 256GB
  • PCIe 5.0 x16 slot and support for Lightning Gen 5 x4 M.2 for lightning-fast gaming and storage performance
  • Intel Killer 5G LAN, Thunderbolt 4 port, and Wi-Fi 7 for dependable and quick networking
  • Onboard graphics options like HDMI 2.1, DisplayPort 1.4, and Thunderbolt-enabled Type-C DisplayPort

Advanced Technologies and Cooling

The MSI MAG B860M MORTAR WIFI motherboard boasts a range of advanced technologies and cooling features, including:

Frozr Guard:

  • High-quality MOSFET thermal pads for improved thermal management
  • Expanded heatsink for enhanced cooling
  • EZ M.2 Shield Frozr II for optimal M.2 cooling

Power Delivery:

This motherboard features a 12+1+1+1 Duet Rail Power System with 60A DrMOS, dual 8-pin CPU power connectors, Core Boost, and Memory Boost for reliable and efficient power delivery.

Connectivity and Storage:

The MSI MAG B860M MORTAR WIFI motherboard offers extensive connectivity options, including multiple USB ports, a Thunderbolt 4 port, and Wi-Fi 7 for seamless connectivity with modern devices. It also supports three M.2 slots, four SATA 6G connections, and RAID 0, 1, 5, and 10 for high-end storage and sound quality.

Part ID: #CAN-01099 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Ultra Technology MSI MAG B860M MORTAR WIFI LGA 1851 mATX Motherboard
In Stock 32,000 4 hours ago
Buy Now
Star Tech MSI MAG B860M MORTAR WIFI LGA 1851 mATX Motherboard
In Stock 32,100 1 week ago
Buy Now
Skyland BD MSI MAG B860M MORTAR WIFI LGA 1851 mATX Motherboard
In Stock 32,600 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Supports Intel Core Ultra Processors (Series 2) LGA 1851
Chipset INTEL B860
Form Factor mATX 243.84mmx243.84mm
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output

Expansion Slots

PCI 1x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
M.2 Socket 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

Memory

Type DDR5
Slots 4x UDIMM
Supported Memory Memory Support 9066 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Maximum Memory 256GB

Graphics

Graphics 1x HDMI Support HDMI 2.1 with FRL, maximum resolution of 8K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz 1x Type-C DisplayPort Thunderbolt 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz

Connector & Ports

HDMI 1x HDMI 2.1 with FRL
Display Port (s) 1x DisplayPort 1.4 1x Type-C DisplayPort Thunderbolt 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz
USB (s) 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front)
LAN Port (s) Intel Killer E5000 5Gbps LAN
Wireless Communication module Intel Killer BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports

Others

Special Features 4x EZ Debug LED 1x EZ Memory Detection LED

Warranty Information

Manufacturing Warranty 3 Year

Key Features

Model MAG B860M MORTAR WIFI
Supported CPU Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM 4x DDR5, Dual Channel 9200+ MT/s (OC), Max 256GB
Graphics Output 1x HDMI, 1x DisplayPort, 1x Type-C DisplayPort
Features 3x M.2 Slot, 1x 5Gbps LAN, Intel Killer Wi-Fi 7, Bluetooth 5.4
