Status
In Stock
2 listings tracked
Lowest Deal
31,999
Best Deal
Price Range
31,999 to 32,100
Save 0%
Product Description

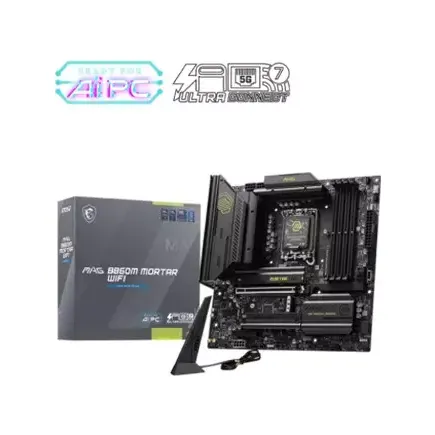

Engineered by MSI, this motherboard is supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. Currently, the lowest price in Bangladesh for this item is **31,999 ৳**, with active inventory listings tracked from TechLand BD, Creatus Computer.
Part ID: #CAN-01488
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
LAN
Intel Killer E5000 5Gbps LAN
USB
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front)
Audio
Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Brand
MSI
Model
MAG B860M MORTAR WIFI
Memory
Memory Support 9066 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Chipset
INTEL B860
Storage
3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2, supports 2280/2260 devices 4x SATA 6G Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
Graphics
1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
Warranty
3 years
Wireless
Module Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Bluetooth
Supports Bluetooth® 5.4**, MLO, 4KQAM
CPU Socket
Supports Intel Core Ultra Processors (Series 2) LGA 1851
Form Factor
mATX 243.84mmx304.8mm
Memory Slot
4
Memory Type
DDR5
Expansion Slots
1x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
Bundled Software
Support for Windows 11 64-bit
Max Memory Speed
256GB
Internal I/O Ports
1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
Part ID: #CAN-01488
Last Updated: 2 days ago
MSI MAG B860M MORTAR WIFI DDR5 mATX MotherboardMSI MAG B860M MORTAR WIFI DDR5 mATX Motherboard is a robust and high-performance motherboard designed to meet the demands of modern computing and gaming. With support for Intel Core Ultra Processors (Series 2) and the LGA 1851 socket, this motherboard provides unparalleled compatibility and performance. Its compact mATX form factor makes it ideal for building powerful yet space-efficient systems.This motherboard supports the latest DDR5 memory technology, accommodating up to 256GB of RAM with speeds reaching 9200 MT/s (OC). The four DIMM slots are designed for overclocking, ensuring seamless multitasking, gaming, and creative workflows.For storage, the MSI MAG B860M MORTAR offers three M.2 slots, including one PCIe 5.0 and two PCIe 4.0 slots, for lightning-fast data transfer speeds. It also features four SATA 6G ports and RAID support for added storage flexibility and reliability.Connectivity options are comprehensive, with Intel Killer BE1750x Wi-Fi 7 for blazing-fast wireless internet and Intel Killer E5000 5Gbps LAN for stable wired connections. A wide array of USB ports includes high-speed USB-C and USB 3.2 ports, ensuring compatibility with all your devices.Visual output is impressive, featuring HDMI 2.1, DisplayPort 1.4, and Thunderbolt 4 Type-C, supporting resolutions up to 8K at 60Hz. This makes it ideal for high-resolution gaming or professional content creation.The motherboard's design includes EZ Debug LEDs, EZ Memory Detection LED, and customizable RGB lighting connectors, offering a blend of functionality and aesthetics. Backed by a 3-year warranty, the MSI MAG B860M MORTAR WIFI DDR5 mATX Motherboard is an exceptional choice for gamers, professionals, and PC enthusiasts looking for performance and reliability in a compact form.FeaturesSupports Intel Core Ultra Processors (Series 2) with LGA 1851 socket.DDR5 memory support with up to 256GB capacity and 9200 MT/s (OC) speeds.3x M.2 slots, including PCIe 5.0 for ultra-fast storage.Intel Killer Wi-Fi 7 and 5Gbps LAN for premium networking performance.HDMI 2.1, DisplayPort 1.4, and Thunderbolt 4 for high-resolution video output.Compact mATX design with advanced RGB lighting options.Packed with EZ Debug LEDs and enhanced cooling solutions...
