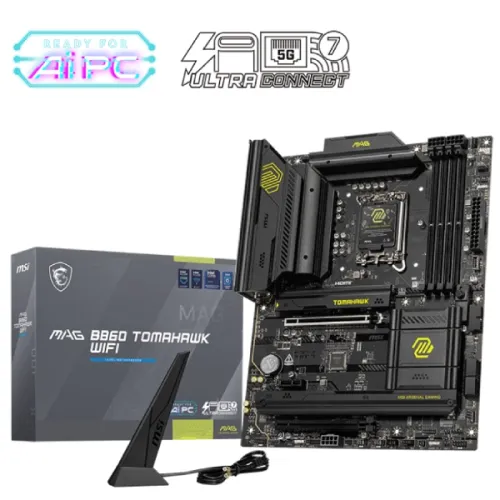

MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX Motherboard

Product Description

Unleash Unmatched Performance with the MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX Motherboard

The MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX motherboard is designed for gamers, content creators, and professionals who demand exceptional speed, reliability, and expandability. With its cutting-edge features and robust build quality, this motherboard delivers unparalleled performance for even the most demanding applications.

Key Features and Benefits

This powerful motherboard boasts the following key features and benefits:

  • Supports Intel Core Ultra Processors (Series 2) with LGA 1851 sockets
  • Up to 256GB DDR5 memory capacity with dual-channel speeds of up to 9200+ MT/s (overclocked)
  • PCIe 5.0 slot with compatibility for Lightning Gen 5 x4 M.2
  • Intel Killer 5G LAN and Wi-Fi 7 for unmatched networking and data transfer speed
  • Supports resolutions up to 8K at 60Hz or 4K at 120Hz through onboard graphics options
  • Three M.2 slots, four SATA 6G ports, and support for RAID 0, 1, 5, and 10

Proprietary Technologies for Enhanced Performance

The MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX motherboard incorporates several proprietary technologies to deliver exceptional performance and reliability:

**Frozr Guard System**: Ensures improved thermal performance with an expanded heatsink, premium thermal pads, and the EZ M.2 Shield Frozr II.

**Audio Boost Technology**: Provides immersive, studio-caliber sound quality with support for multiple onboard graphics options.

**EZ PCIe Release, EZ M.2 Clip II, and EZ Antenna**: Simplify DIY construction with user-friendly features for easy setup and customization.

Part ID: #CAN-01373 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX Motherboard
In Stock Call for Price 1 week ago
Ultra Technology MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX Motherboard
In Stock 33,000 4 hours ago
Creatus Computer MSI MAG B860 TOMAHAWK WIFI DDR5 ATX Motherboard
In Stock 33,399 5 hours ago
Skyland BD MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX Motherboard
In Stock 33,700 4 hours ago
UCC MSI MAG B860 TOMAHAWK Wi-Fi LGA1851 ATX Motherboard
In Stock 33,900 5 hours ago
TechLand BD MSI MAG B860 TOMAHAWK WIFI DDR5 LGA 1851 ATX Intel Motherboard
In Stock 34,000 5 hours ago
TechLand BD MSi MAG B860 TOMAHAWK WIFI INTEL B860 DDR5 ATX Motherboard
Check Stock 34,200 5 hours ago

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Supports Intel Core Ultra Processors (Series 2) LGA 1851
Chipset INTEL B860
Form Factor ATX 243.84mmx304.8mm
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output

Expansion Slots

PCI 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
M.2 Socket 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

Memory

Type DDR5
Slots 4x UDIMM
Supported Memory Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Maximum Memory 256GB

Graphics

Graphics 1x HDMI Support HDMI 2.1 with FRL, maximum resolution of 8K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz 1x Type-C DisplayPort Thunderbolt 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz

Connector & Ports

HDMI 1x HDMI 2.1 with FRL
Display Port (s) 1x DisplayPort 1.4 1x Type-C DisplayPort Thunderbolt 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz
USB (s) 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 4x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) 1x USB 40Gbps Type C (Rear)
LAN Port (s) Intel Killer E5000 5Gbps LAN
Wireless Communication module Intel Killer BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports

Others

Special Features 4x EZ Debug LED 1x EZ Memory Detection LED

Warranty Information

Manufacturing Warranty 3 Year

Key Features

Model MAG B860 TOMAHAWK WIFI
Supported CPU Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM 4x DDR5, Dual Channel 9200+ MT/s (OC), Max 256GB
Graphics Output 1x HDMI, 1x DisplayPort, 1x Type-C DisplayPort
Features 3x M.2 Slot, 1x 5Gbps LAN, Intel Killer Wi-Fi 7, Bluetooth 5.4
