Status
In Stock
7 stores
Lowest Deal
31,000 BDT
Best Deal
Price Range
Single price listing
Product Description

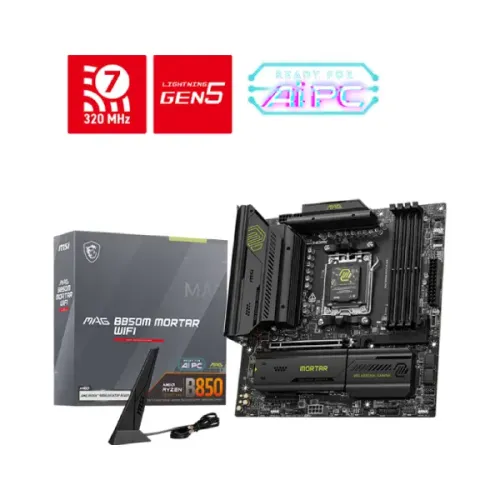

Unlock Unparalleled Performance with the MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
This powerful motherboard is designed for enthusiasts who demand the best from their gaming and content creation workstations. With its cutting-edge features and robust design, the MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard delivers unparalleled performance, overclocking headroom, and future-readiness.
Key Features and Performance HighlightsThe MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard boasts the following key features and performance highlights:
- Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors with the AM5 socket
- Up to 256GB of DDR5 memory over four dual-latch DIMM slots with speeds of up to 8200+ MT/s (OC)
- Robust 12+2+1 Duet Rail Power System with dual 8-pin CPU power connectors for seamless power delivery
- One PCIe 5.0 x16 slot, one PCIe 4.0 x4 slot, and three M.2 slots for high-speed storage and expansion
- Onboard Wi-Fi 7, Bluetooth 5.4, and Realtek 8126-VB 5G LAN for blazing-fast network speeds
The MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard incorporates several proprietary technologies and design features that enhance its performance and user experience, including:
Frozr Guard Thermal Design with extended heatsinks, high-performance thermal pads (7W/mK), choke cooling, and EZ M.2 Shield Frozr II for optimal M.2 SSD performance and installation ease.
Core Boost and Memory Boost Technologies for seamless power delivery and memory overclocking.
Audio Boost 5 for a studio-grade sound experience with the Realtek ALC4080 Codec supporting 7.1-channel HD audio, 32-bit/384kHz playback, and S/PDIF output.
Part ID: #CAN-01109
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
|
In Stock | 30,000 | 1 week ago | |
|
Creatus Computer
MSI MAG B850M MORTAR WIFI AM5 ATX Motherboard
|
In Stock | 30,500 | 5 hours ago | |
|
Sell Tech
MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
|
In Stock | 31,000 | 5 hours ago | |
|
Ultra Technology
MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
|
In Stock | 32,500 | 4 hours ago | |
|
Nexus Computer
MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
|
In Stock | 36,200 | 4 hours ago | |
|
PCB Store
MSI MAG B850M MORTAR WIFI AM5 m-ATX Motherboard
|
Check Stock | 31,000 | 5 hours ago | |
|
Skyland BD
MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
|
Check Stock | 32,999 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset
AMD B850
Form Factor
mATX 243.84mmx243.84mm
Audio
Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-bit/384kHz playback on front panel Supports S/PDIF output
Expansion Slots
PCI
1x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
M.2 Socket
3x M.2
Memory
Type
DDR5
Slots
4x DIMMs
Supported Memory
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
Maximum Memory
256GB
Graphics
Graphics
1x HDMI Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Connector & Ports
HDMI
1x HDMI
USB (s)
4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)
LAN Port (s)
Realtek 8126-VB 5G LAN
Wireless Communication module
Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage
3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) M2_3 slot • Supports up to PCIe 4.0 x2
RAID
• Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices • Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices *RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
Audio
1x Front Audio (JAUD)
Internal I/O Ports
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED 1x EZ Memory Detection LED
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
MAG B850M MORTAR WIFI
Supported CPU
Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM
4x DDR5, up to 8200 (OC) MT/s
Graphics Output
1x HDMI, Storage: 3x M.2
Features
Realtek 8126-VB 5G LAN, Wi-Fi 7, Bluetooth 5.4
Part ID: #CAN-01109
Last Updated: 1 month ago
