Status
In Stock
10 stores
Lowest Deal
25,500 BDT
Best Deal
Price Range
Single price listing
Product Description

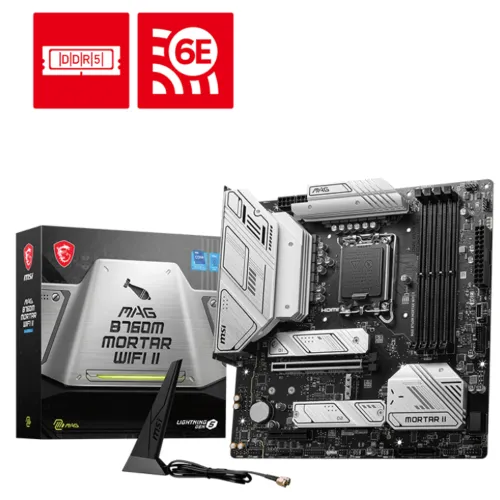

MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard
Unleash Your Gaming Potential
The MSI MAG B760M MORTAR WIFI II Motherboard is designed for gamers and content creators who demand top-notch performance and features. With its cutting-edge technology and robust design, this motherboard is the perfect choice for building a high-performance gaming or video production system.
Key Features and Benefits
- Supports Intel Core 14th, 13th, and 12th Gen Processors, as well as Intel Pentium Gold and Celeron Processors built for the LGA 1700 socket
- Up to 7800+(OC) MHz DDR5 memory for improved system responsiveness and multitasking
- PCIe 5.0 slot, Lightning Gen 4 x4 M.2, and USB 3.2 Gen 2 x2 for high data transfer speeds and compatibility with the newest gaming accessories
- Audio Boost technology for studio-grade sound quality
- Realtek 2.5Gbps LAN and Wi-Fi 6E for reliable and fast network connectivity
Advanced Technologies and Design
The MSI MAG B760M MORTAR WIFI II Motherboard boasts a range of proprietary technologies that enhance its performance and user experience. The motherboard features a premium thermal solution with an expanded heatsink design and M.2 Shield Frozr, ensuring optimal temperatures during demanding tasks. The 12+1+1 Duet Rail Power System, two 8-pin CPU power connections, Core Boost, and Memory Boost work together to create a stable and overclocking-friendly environment.
Part ID: #CAN-01067
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
TechLand BD
MSI MAG B760M MORTAR WIFI II DDR5 MOTHERBOARD
|
In Stock | 25,000 | 4 hours ago | |
|
Star Tech
MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard
|
In Stock | 25,500 | 1 week ago | |
|
Sell Tech
MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard
|
In Stock | 25,500 | 4 hours ago | |
|
Computer Village
MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard
|
In Stock | 25,500 | 4 hours ago | |
|
Ultra Technology
MSI MAG B760M MORTAR WIFI II DDR5 MATX Motherboard
|
In Stock | 25,500 | 4 hours ago | |
|
Nexus Computer
MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard
|
In Stock | 25,600 | 4 hours ago | |
|
PC House
MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard
|
In Stock | 25,690 | 4 hours ago | |
|
Skyland BD
MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard
|
In Stock | 25,800 | 3 hours ago | |
|
Creatus Computer
MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard
|
In Stock | 25,900 | 4 hours ago | |
|
UCC
MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard
|
In Stock | 26,300 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Chipset
INTEL B760
Form Factor
mATX 243.84mmx243.84mm
Audio
Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Expansion Slots
PCI
1x PCI-E x16 slot Supports x16/x4 PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
M.2 Socket
3x M.2 slots
Memory
Type
DDR5
Slots
4 x DIMM
Supported Memory
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile
Maximum Memory
192GB
Graphics
Graphics
Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 8K 60Hz*
Connector & Ports
HDMI
1x HDMI 2.1
Display Port (s)
1x DisplayPort 1.4
USB (s)
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)
Realtek 2.5Gbps LAN
Wireless Communication module
Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage
3x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices 4x SATA 6G
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Internal I/O Ports
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3)
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
LED FEATURE: 4x EZ Debug LED
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
MAG B760M MORTAR WIFI II
Supported CPU
14th/13th/12th Gen Core, Pentium Gold & Celeron Processor (LGA 1700)
Supported RAM
4x DDR5, 7800+MHz (OC), Max 192GB
Graphics Output
1x HDMI, 1x DisplayPort
Features
Realtek 2.5Gbps LAN, Wi-Fi 6E
Part ID: #CAN-01067
Last Updated: 1 month ago
