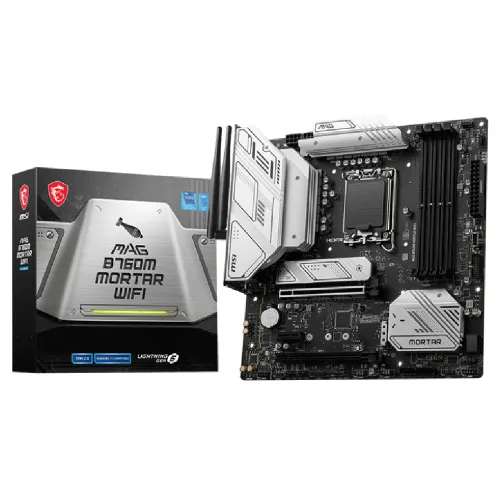

MSI MAG B760M MORTAR WIFI DDR5 mATX Motherboard

Status
In Stock
3 stores
Lowest 25,700 BDT
Price Range Single price listing
MSI MAG B760M MORTAR WIFI DDR5 mATX Motherboard

Product Description

Unlock Unbridled Performance with the MSI MAG B760M MORTAR WIFI DDR5 Motherboard

The MSI MAG B760M MORTAR WIFI DDR5 motherboard is the perfect choice for gamers and power users seeking unparalleled performance, seamless connectivity, and exceptional audio quality. With its robust feature set and sleek design, this motherboard is engineered to deliver a lightning-fast gaming experience and effortless multitasking.

Key Technical Features

  • Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold, and Celeron CPUs for LGA 1700 socket
  • DDR5 memory support with overclocking rates up to 7000+ MHz and a maximum capacity of 192GB
  • PCIe 5.0 slot, Lightning Gen 4 x4 M.2 slot, and USB 3.2 Gen 2x2 port for rapid data transmission and connection
  • Realtek ALC897 Codec 7.1-Channel High-Definition Audio and Intel Wi-Fi 6E for seamless wireless connectivity
  • Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices

Proprietary Technologies and Performance Benefits

The MSI MAG B760M MORTAR WIFI DDR5 motherboard boasts an upgraded power architecture with a 12+1+1 duet rail power system, two 8-pin CPU power connections, Core Boost, and Memory Boost. This design ensures effortless management of high-performance processing needs, guaranteeing a reliable and efficient system operation. Additionally, the motherboard features a premium thermal solution with an expanded heatsink design and M.2 Shield Frozr to prevent overheating.

Part ID: #CAN-01339 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech MSI MAG B760M MORTAR WIFI DDR5 mATX Motherboard
In Stock Call for Price 1 week ago
Buy Now
Binary Logic MSI MAG B760M MORTAR WIFI mATX Gaming Motherboard
In Stock 25,700 4 hours ago
Buy Now
UCC MSI MAG B760M MORTAR WIFI DDR5 mATX Motherboard
Check Stock 27,800 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Chipset INTEL B760
Form Factor mATX 243.84mmx243.84mm
Audio Realtek ALC897 Codec 7.1-Channel High-Definition Audio

Expansion Slots

PCI 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Memory

Type DDR5
Slots 4
Supported Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory 192GB

Graphics

Graphics Support HDMITM 2.1 with HDR, the maximum resolution of 4K 60Hz Support DP 1.4, the maximum resolution of 4K 60Hz

Connector & Ports

HDMI 1x HDMI
Display Port (s) 2x DisplayPort
USB (s) 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s) Realtek 2.5Gbps LAN
Wireless Communication module Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)

Others

Special Features 4x EZ Debug LED

Warranty Information

Manufacturing Warranty 3 years

Key Features

Model MAG B760M MORTAR WIFI
Supported CPU 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM 4x DDR5, Max 192GB 7000+(OC)
Graphics Output 1x HDMI, 1x DisplayPort
Features 2x M.2 slot, Intel Wi-Fi 6E
Part ID: #CAN-01339 Last Updated: 1 month ago
