Status
In Stock
2 stores
Lowest Deal
26,000 BDT
Best Deal
Price Range
26,000 to 27,000 BDT
Save 4%
Product Description

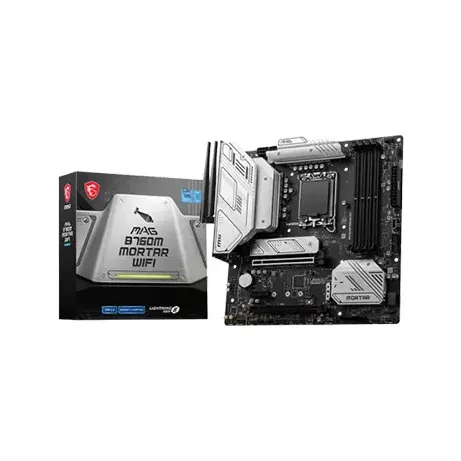

Unleash Unmatched Performance with the MSI MAG B760M MORTAR WIFI DDR5 Motherboard
The MSI MAG B760M MORTAR WIFI DDR5 motherboard is the perfect choice for gamers and content creators seeking a powerful platform for their 12th and 13th Gen Intel Core processors. This high-performance motherboard delivers exceptional speed, reliability, and features that unlock your PC's full potential.
Key Features and Benefits
- Support for 12th and 13th Gen Intel Core processors for exceptional CPU performance and efficiency
- Wi-Fi 6E and Gigabit LAN for fast and reliable networking
- Quad-Channel DDR5 memory support with speeds up to 5600MHz for unparalleled memory performance
- PCIe 5.0 and PCIe 4.0 slots for next-generation graphics and storage
- High-quality audio capacitors and audio shielding for immersive gaming and entertainment experiences
Advanced Technologies
MSI's Proprietary Features
The MSI MAG B760M MORTAR WIFI DDR5 motherboard incorporates several advanced technologies that enhance your PC's performance and user experience. These include:
- Heat-pipe thermal solution for efficient heat dissipation and reduced noise
- Steel Armor for reinforced PCIe slots and improved durability
- MSI's Dragon Center software for customizable lighting and system monitoring
Part ID: #CAN-01555
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek® 2.5Gbps LAN
USB
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
HDMI
1x HDMI™
WiFi
Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax
Audio
Realtek® ALC897 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output
Slots
2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Memory
4x DDR5, Maximum Memory Capacity 192GB Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile
Chipset
INTEL B760
Graphics
1x HDMI™ Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz
Warranty
3 Years
Bluetooth
Supports Bluetooth® 5.3, FIPS, FISMA
Dimension
mATX 243.84mmx243.84mm
Form Factor
mATX
Supported CPU
Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA1700
Other Features
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Support for Windows® 11 64-bit, Windows® 10 64-bit
Special Features
4x EZ Debug LED
Supported Storage
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
External I/O Ports
USB 2.0 DisplayPort 1.4 USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI™ 2.1 Port USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT
Internal I/O Ports
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
Part ID: #CAN-01555
Last Updated: 1 month ago
