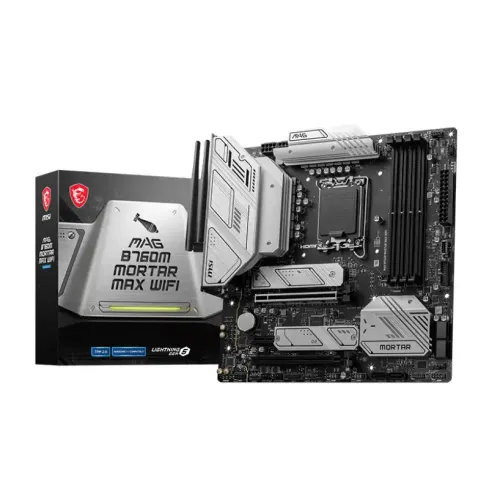

MSI MAG B760M MORTAR MAX WIFI mATX Motherboard

Status
In Stock
3 stores
Lowest Out of Stock
Price Range Single price listing
MSI MAG B760M MORTAR MAX WIFI mATX Motherboard

Product Description

Unlock Unparalleled Performance with the MSI MAG B760M MORTAR MAX WIFI

The MSI MAG B760M MORTAR MAX WIFI motherboard is specifically designed for enthusiasts and professionals seeking exceptional performance, reliability, and innovative features. With its cutting-edge design and robust capabilities, this motherboard is perfect for gamers, content creators, and anyone demanding the best from their PC.

Key Features and Performance Highlights

  • Supports 14th/13th/12th Gen Intel Core, Pentium Gold, and Celeron processors for the LGA 1700 socket
  • DDR5 memory support with speeds up to 7000+(OC) MHz for fast and efficient data processing
  • PCIe 5.0 slot and Lightning Gen 4 x4 M.2 for lightning-fast gaming experiences
  • 2.5G LAN with Intel Wi-Fi 6E for seamless online connectivity
  • 6-layer PCB with 2oz thickened copper and server-grade materials for durability and reliability

Advanced Technologies for Unmatched Performance

The MSI MAG B760M MORTAR MAX WIFI motherboard boasts an enhanced power design featuring a 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost, ensuring stable power delivery and optimal performance. The OC Engine technology maximizes the CPU's power potential, while the premium thermal solution with an extended heatsink design and M.2 Shield Frozr keeps temperatures in check during intensive workloads.

Part ID: #CAN-01330 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech MSI MAG B760M MORTAR MAX WIFI mATX Motherboard
In Stock Call for Price 1 week ago
Buy Now
Creatus Computer MSI MAG B760M MORTAR MAX WIFI 13th & 12th Gen mATX Motherboard
In Stock Call for Price 4 hours ago
Buy Now
Sell Tech MSI MAG B760M MORTAR MAX WIFI mATX Motherboard
Check Stock Call for Price 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA1700
Chipset INTEL B760
Form Factor mATX 220mmx243.84mm
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output

Expansion Slots

PCI 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Memory

Type DDR5
Slots 4
Supported Memory Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile
Maximum Memory 192GB

Graphics

Graphics 1x HDMI Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz

Connector & Ports

HDMI 1x HDMI
Display Port (s) 1x DisplayPort
USB (s) 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s) Realtek 2.5Gbps LAN
Wireless Communication module Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)

Others

Special Features 4x EZ Debug LED

Warranty Information

Manufacturing Warranty 3 years

Key Features

Model MAG B760M MORTAR MAX WIFI
Supported CPU 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM 4x DDR5, Max 192GB 7000+(OC) MHz
Graphics Output 1x HDMI, 1x DisplayPort
Features 2x M.2 slot, 2.5G LAN with Intel Wi-Fi 6E
Part ID: #CAN-01330 Last Updated: 1 month ago
