Product Description

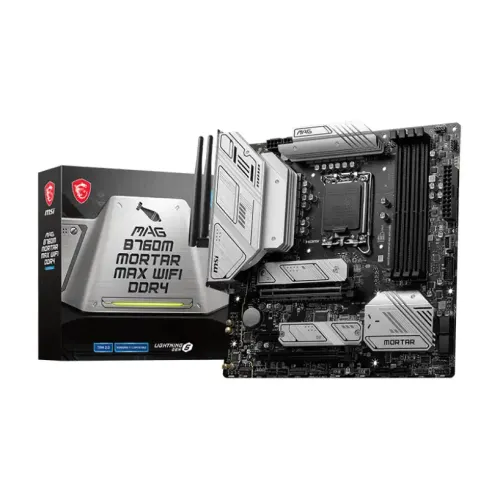

High-Performance Gaming and Power User Motherboard
The MSI MAG B760M MORTAR MAX WIFI DDR4 motherboard is designed for gamers and power users who demand the best performance and features. This motherboard delivers lightning-fast gaming experiences, high-speed data transfer, and excellent audio quality, making it an ideal choice for those who push their systems to the limit.
Key Features and Benefits
- Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold, and Celeron Processors LGA 1700
- DDR4 memory support with overclocking rates up to 5333 (OC) MHz
- Realtek 2.5Gbps LAN and Intel Wi-Fi 6E for fast networking and connectivity
- 2x M.2 slots for high-speed storage and PCIe 5.0 support
- USB 3.2 Gen 2x2 port for quick data transfer and connection
- High-quality audio with Realtek ALC897 Codec 7.1-Channel USB High Performance Audio
Advanced Technologies and Features
Upgraded Power Architecture and Cooling System
The MSI MAG B760M MORTAR MAX WIFI DDR4 motherboard features an upgraded power architecture with a 12+1+1 duet rail power system, two 8-pin CPU power connections, Core Boost, and Memory Boost. This ensures that the motherboard can handle high-performance processing needs with ease. Additionally, the motherboard's premium thermal solution incorporates an expanded heatsink design and M.2 Shield Frozr to prevent overheating, ensuring that the system can operate at peak performance for extended periods without failure.
Part ID: #CAN-01338
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
MSI MAG B760M MORTAR MAX WIFI DDR4 mATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
Creatus Computer
MSI MAG B760M MORTAR MAX WIFI DDR4 12th Gen & 13th Gen mATX Motherboard
|
In Stock | Call for Price | 5 hours ago | |
|
UCC
MSI MAG B760M MORTAR MAX WIFI DDR4 mATX Motherboard
|
Check Stock | 26,900 | 5 hours ago | |
|
PC House
MSI MAG B760M MORTAR MAX WIFI DDR4 mATX Motherboard
|
Check Stock | 26,900 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold, and Celeron Processors LGA 1700
Chipset
INTEL B760
Form Factor
mATX 243.84mmx243.84mm
Audio
Realtek ALC897 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output
Expansion Slots
PCI
2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Memory
Type
DDR4
Slots
4
Supported Memory
5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile
Maximum Memory
128GB
Graphics
Graphics
1x HDMI Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz*
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1x DisplayPort
USB (s)
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)
Realtek 2.5Gbps LAN
Wireless Communication module
Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Internal I/O Ports
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
MAG B760M MORTAR MAX WIFI DDR4
Supported CPU
14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM
4x DDR4, Max 128GB 5333(OC)
Graphics Output
1x HDMI, 1x DisplayPort
Features
2x M.2 slot, Realtek 2.5Gbps LAN, Intel Wi-Fi 6E
