Status
In Stock
2 listings tracked
Lowest Deal
26,000
Best Deal
Price Range
Single price listing
Product Description
Engineered by MSI, this motherboard is designed for **LGA1700** socket processors and supporting high-speed **DDR4** memory, providing a reliable foundation for custom desktop systems. You can buy this component starting from **26,000 ৳**, compared dynamically across 2 major computer shops.
Part ID: #CAN-01633
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek® 2.5Gbps LAN
USB
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
HDMI
1x HDMI™
WiFi
Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax
Audio
Realtek® ALC897 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output
Slots
2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Memory
4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile
Chipset
INTEL B760
Graphics
1x HDMI™ Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz*
Warranty
3 Years
Bluetooth
Supports Bluetooth® 5.3, FIPS, FISMA
Dimension
mATX 243.84mmx243.84mm
Form Factor
mATX
Supported CPU
Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA1700
Other Features
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Support for Windows® 11 64-bit, Windows® 10 64-bit
Special Features
4x EZ Debug LED
Supported Storage
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G
External I/O Ports
USB 2.0 DisplayPort 1.4 USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI™ 2.1 Port USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT
Internal I/O Ports
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
Part ID: #CAN-01633
Last Updated: 2 days ago

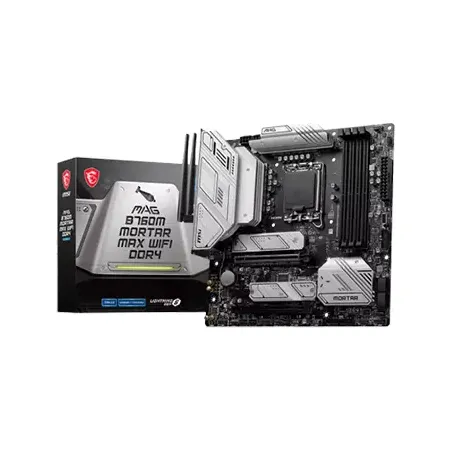

The MSI MAG B760M Mortar Max WiFi DDR4 is a Micro-ATX motherboard , which means that it has a smaller form factor than standard ATX motherboards. Micro-ATX motherboards typically measure 9.6 inches by 9.6 inches (24.4 cm by 24.4 cm), compared to the larger 12 inches by 9.6 inches (30.5 cm by 24.4 cm) size of ATX motherboards. Despite its smaller size, the MSI MAG B760M Mortar Max WiFi DDR4 offers a good balance of features and performance for gamers and power users looking for a reliable and customizable motherboard for their Intel-based system.Overall, The MSI MAG B760M Mortar Max WiFi DDR4 is a Micro-ATX is a high-performance motherboard designed for gaming and other demanding applications, with a range of advanced features and options to meet the needs of even the most demanding users.FeaturesThe MSI MAG B760M Mortar Max WiFi DDR4 is a Micro-ATX motherboard designed for 10th and 11th Gen Intel Core processors, but it may also support 12th and 13th Gen processors with a BIOS update. Here are some of its key features:Socket LGA1200 for 10th and 11th Gen Intel Core, Pentium Gold, and Celeron processors (may support 12th and 13th Gen with a BIOS update)Intel B760 chipset4 DIMM slots supporting dual-channel DDR4 memory, up to 128GB1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x16 slot, 2x PCIe 3.0 x1 slots6x SATA 6Gb/s ports, 1x M.2 slot (supports PCIe 4.0 x4 and SATA 6Gb/s)2x USB 3.2 Gen 2 Type-A ports (rear), 4x USB 3.2 Gen 1 ports (rear), 6x USB 2.0 ports (2 rear, 4 via headers)Realtek ALC892 codec for 7.1 channel HD audioRealtek 8111HN Gigabit LAN controllerBuilt-in Intel Dual Band Wireless-AC 3168 module for WiFi connectivityMystic Light RGB LED lighting with various effects and support for external RGB stripsClick BIOS 5 with advanced customization options and support for EZ modeMilitary Class 4 components for durability and stabilityNote that the compatibility with 12th and 13th Gen Intel Core processors is not guaranteed and may require a BIOS update from the manufacturer. Please check the MSI website or contact their customer support for more information on compatibility and updates...
