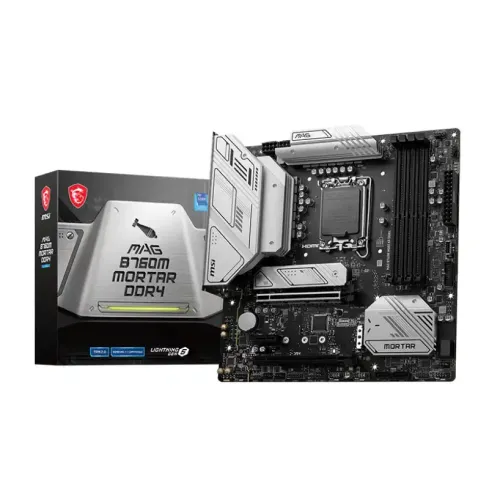

MSI MAG B760M MORTAR DDR4 mATX Motherboard

Status
In Stock
3 stores
Lowest Out of Stock
Price Range Single price listing
MSI MAG B760M MORTAR DDR4 mATX Motherboard

Product Description

MSI MAG B760M MORTAR DDR4 mATX Motherboard

Upgrade Your Gaming Experience

Designed for gamers and power users, the MSI MAG B760M MORTAR DDR4 mATX motherboard offers exceptional performance, versatility, and reliability. With support for the latest Intel Core processors and high-speed DDR4 memory, this motherboard is the perfect choice for building a high-performance gaming system.

Key Features and Benefits

  • Supports 14th/13th/12th Gen Intel Core Processors and Pentium Gold and Celeron CPUs for LGA 1700 socket
  • Supports DDR4 memory with overclocking up to 5333+(OC) MHz
  • 2x M.2 slots with PCIe 4.0 x4 support for lightning-fast storage and connectivity
  • Realtek 2.5Gbps LAN for fast and reliable network connectivity
  • 4x SATA 6G ports for storage expansion
  • Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices

Advanced Technologies and Features

The MSI MAG B760M MORTAR DDR4 motherboard boasts an advanced power architecture, featuring a 12+1+1 duet rail power system, two 8-pin CPU power connections, Core Boost, and Memory Boost.

The motherboard also includes a premium thermal solution, with an expanded heatsink design and M.2 Shield Frozr to prevent overheating, ensuring peak performance for extended periods.

Additionally, the motherboard features an audio boost for studio-quality sound and a high-quality PCB constructed with 2oz thicker copper and server-grade level material for durability and longevity.

Part ID: #CAN-01317 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech MSI MAG B760M MORTAR DDR4 mATX Motherboard
In Stock Call for Price 1 week ago
Buy Now
Creatus Computer MSI MAG B760M MORTAR DDR4 13th Gen mATX Motherboard
Check Stock 20,200 4 hours ago
Buy Now
UCC MSI MAG B760M MORTAR DDR4 mATX Motherboard
Check Stock 23,300 5 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Chipset INTEL B760
Form Factor mATX 243.84mmx243.84mm
Audio Realtek ALC897 Codec 7.1-Channel USB High-Performance Audio Supports S/PDIF output

Expansion Slots

PCI 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Memory

Type DDR4
Slots 4
Supported Memory Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile
Maximum Memory 128GB

Graphics

Graphics 1x HDMI Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz

Connector & Ports

HDMI 1x HDMI
Display Port (s) 2x DisplayPort
USB (s) 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s) Realtek 2.5Gbps LAN
Supported Storage 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio HD Audio Connectors
Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)

Others

Special Features 4x EZ Debug LED

Warranty Information

Manufacturing Warranty 3 years

Key Features

Model MAG B760M MORTAR DDR4
Supported CPU 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM 4x DDR4, up to 5333+(OC) MHz
Graphics Output 1x HDMI, 1x DisplayPort
Features 2x M.2 slot, Realtek 2.5Gbps LAN
Part ID: #CAN-01317 Last Updated: 1 month ago
