Product Description

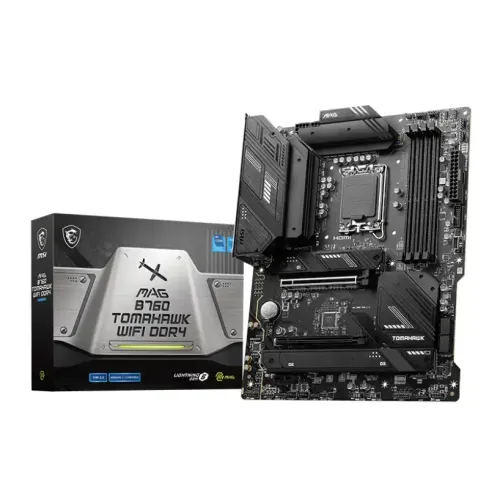

Unleash Your Gaming Potential with the MSI MAG B760 TOMAHAWK WIFI DDR4 ATX Motherboard
Designed for gamers and enthusiasts, the MSI MAG B760 TOMAHAWK WIFI DDR4 ATX Motherboard is the perfect foundation for your high-performance desktop PC. With its robust feature set and premium build quality, this motherboard delivers lightning-fast performance, seamless connectivity, and unparalleled gaming experiences.
Key Features and Benefits
Technical Specifications at a Glance:
- Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold, and Celeron Processors LGA1700
- Four dual-channel DDR4 RAM slots with a maximum capacity of 128GB
- Three M.2 slots for ultra-fast storage and connectivity
- Realtek ALC897 Codec with 7.1-Channel USB High-Performance Audio
- Intel Wi-Fi 6E and Bluetooth 5.3 for seamless wireless connectivity
- Supports up to 4x SATA 6G ports, 2x USB 3.2 Gen2 Type A, and 1x USB 3.2 Gen2x2 Type C
Enhanced Performance and Cooling
Unlock Your System's Full Potential:
The MSI MAG B760 TOMAHAWK WIFI DDR4 Motherboard features a range of proprietary technologies designed to enhance performance, reliability, and cooling. With its 12+1+1 dual rail power system, 8+8 pin power connectors, and Digital Power Design, this motherboard provides stable and efficient power delivery to your CPU and other components. Additionally, the motherboard's Extended Heatsink Design, M.2 Shield Frozr, and Frozr AI Cooling work together to keep your system running at optimal temperatures, even under intense loads.
Part ID: #CAN-01341
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
MSI MAG B760 TOMAHAWK WIFI DDR4 ATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
TechLand BD
MSI MAG B760 TOMAHAWK WIFI DDR4 13TH GEN & 12TH GEN ATX MOTHERBOARD
|
In Stock | 26,000 | 5 hours ago | |
|
Binary Logic
MSI MAG B760 TOMAHAWK WIFI DDR4 ATX Motherboard
|
In Stock | 28,000 | 5 hours ago | |
|
Creatus Computer
MSI MAG B760 TOMAHAWK WIFI DDR4 13th Gen & 12th Gen ATX Motherboard
|
Check Stock | 23,500 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA1700
Chipset
INTEL B760
Form Factor
ATX 243.84mmx304.8mm
Audio
Realtek ALC897 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output
Expansion Slots
PCI
2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x4 (From Chipset) PCI_E3 PCIe 4.0 supports up to x1 (From Chipset)
Memory
Type
DDR4
Slots
4
Supported Memory
Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile
Maximum Memory
128GB
Graphics
Graphics
1x HDMI 1x DisplayPort Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 8K 60Hz
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1x DisplayPort
USB (s)
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)
Realtek 2.5Gbps LAN
Wireless Communication module
Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage
3x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G port
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio
HD Audio Connectors
Internal I/O Ports
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
MAG B760 TOMAHAWK WIFI DDR4
Supported CPU
14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM
4x DDR4, Max 128GB 5333(OC)
Graphics Output
1x HDMI, 1x DisplayPort
Features
3x M.2 slot, Intel Wi-Fi 6E, Bluetooth 5.3
