Product Description

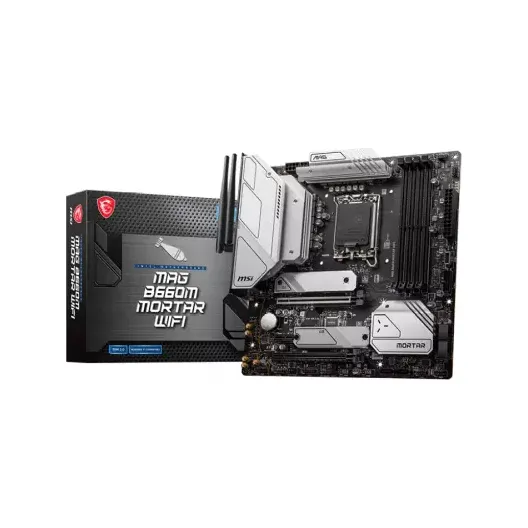

Unlock Unbeatable Gaming Performance with the MSI MAG B660M MORTAR WiFi DDR5
Designed for serious gamers, enthusiasts, and content creators, the MSI MAG B660M MORTAR WiFi DDR5 12th Gen Micro-ATX Motherboard delivers exceptional performance, reliability, and connectivity. This premium motherboard is built to handle demanding workloads and provide an immersive gaming experience.
Key Features and Benefits- Supports 12th Gen Intel Core Processors and DDR5 memory for unmatched performance and future-proofing
- Lightning Gen 4 M.2 for up to 64 Gb/S transfer speeds, ensuring lightning-fast storage and loading times
- Enhanced connectivity with Wi-Fi, USB 3.2 Gen 2, and high-quality audio for a seamless gaming experience
- MSI LAN Manager for optimized online gaming traffic and reduced latency
- Extended PWM Heatsink and enhanced circuit design for stable overclocking and high-end CPU performance
The MSI MAG B660M MORTAR WiFi DDR5 incorporates several cutting-edge technologies, including:
Thermal Solution for More Cores and Higher Performance
MSI's Extended PWM Heatsink and Enhanced Circuit Design ensure that even high-end Intel CPUs run at full speed, maintaining lower temperatures and stable performance under extreme conditions.
Part ID: #CAN-01671
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Computer Village
MSI MAG B660M Mortar WIFI DDR5 Motherboard
|
In Stock | 25,500 | 4 hours ago | |
|
Sell Tech
MSI MAG B660M MORTAR WIFI DDR5 12th Gen Micro-ATX Motherboard
|
Check Stock | Call for Price | 4 hours ago | |
|
TechLand BD
MSI MAG B660M MORTAR WiFi DDR5 12th Gen Micro-ATX Motherboard
|
Check Stock | 25,800 | 4 hours ago | |
|
PC House
MSI MAG B660M MORTAR WiFi DDR5 12th Gen Micro-ATX Motherboard
|
Check Stock | 28,200 | 1 month ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
1X Realtek 8125BG 2.5G LAN Port Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz1 (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.22, FIPS, FISMA
USB
Intel® B660 Chipset 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector 4x USB 2.0 ports on the back panel USB Hub-GL3590 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel USB Hub-GL850G 4x USB 2.0 ports available through internal connectors
Audio
Realtek® ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Slots
2x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIe 4.0 x16 PCI_E3 slot (From B660 Chipset) Supports PCIe 3.0 x4 1x PCIe 3.0 x1 slot
Memory
4x DDR5 memory slots, support up to 128GB1 Supports 1R 4800 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 6200+ MHz 1DPC 2R Max speed up to 5200+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Intel® XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Chipset
Intel B660 Chipset
Graphics
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
Warranty
3 years
Dimension
Micro-ATX Form Factor
Multi-GPU
Supports 2-Way AMD CrossFire Technology
Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Supported CPU
Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors Processor socket LGA1700
Supported Storage
4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset)1 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 Chipset)1 Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel® Optane™ Memory
External I/O Ports
USB 2.0 Port DisplayPort 1.4 USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port WiFi/Bluetooth Antenna HD Audio Connectors HDMI 2.1 Port USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT
Internal I/O Ports
1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connector
