Product Description

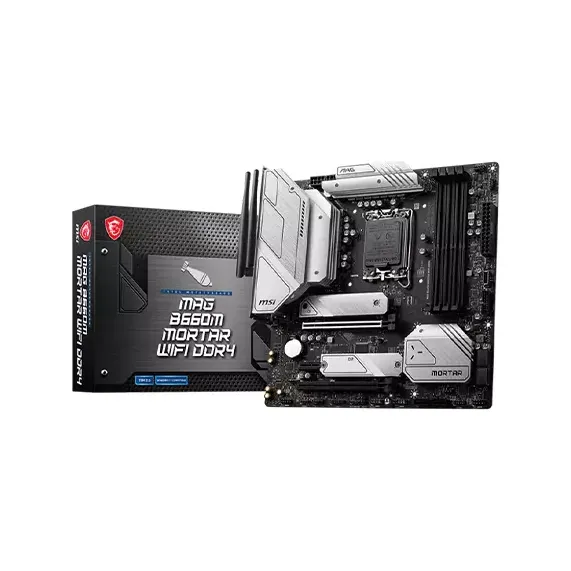

Unlock Unbridled Performance with the MSI MAG B660M MORTAR WIFI DDR4
This premium motherboard is designed for gamers, content creators, and enthusiasts seeking exceptional performance, reliability, and innovative features. Built on the Intel B660 chipset, the MSI MAG B660M MORTAR WIFI DDR4 motherboard is the perfect foundation for 12th Gen Intel Core, Pentium Gold, and Celeron processors, delivering unparalleled power and efficiency.
Key Features and Benefits- Supports 12th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1700 socket
- Up to 4800+(OC) MHz DDR4 memory support for seamless multitasking and gaming
- 2.5G LAN and Intel Wi-Fi Solution for upgraded network performance and connectivity
- Lightning Gen 4 M.2 for lightning-fast storage and PCIe Gen 4 compatibility
- Steel armor PCIe slots and built-in USB 3.2 Gen 2x2 port for enhanced durability and speed
The MSI MAG B660M MORTAR WIFI DDR4 motherboard features a range of cutting-edge technologies, including:
Premium Thermal Solution with Extended Heatsink Design and M.2 Shield Frozr for optimal cooling and performance
2.5G LAN for fast and reliable network connectivity
Intel Wi-Fi Solution for seamless wireless connectivity and MU-MIMO support
Lightning Gen 4 M.2 for blazing-fast storage and PCIe Gen 4 compatibility
Specifications and DimensionsFor detailed specifications and dimensions, please refer to the product details below:
Dimensions: Micro-ATX Form Factor, 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Warranty: 3 years
Part ID: #CAN-01683
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Computer Village
MSI MAG B660M Mortar WIFI DDR4 Motherboard
|
In Stock | 25,400 | 4 hours ago | |
|
Nexus Computer
MSI MAG B660M MORTAR WIFI DDR4 12th Gen Micro-ATX Motherboard
|
In Stock | 25,400 | 3 hours ago | |
|
Sell Tech
MSI MAG B660M MORTAR WIFI DDR4 12th Gen Micro-ATX Motherboard
|
Check Stock | Call for Price | 4 hours ago | |
|
Creatus Computer
MSI MAG B660M MORTAR WIFI DDR4 INTEL 12TH GEN MOTHERBOARD
|
Check Stock | 23,200 | 4 hours ago | |
|
TechLand BD
MSI MAG B660M MORTAR WIFI DDR4 INTEL 12TH GEN MOTHERBOARD
|
Check Stock | 25,100 | 4 hours ago | |
|
PC House
MSI MAG B660M MORTAR WIFI DDR4 12th Gen Micro-ATX Motherboard
|
Check Stock | 25,390 | 4 hours ago | |
|
PC House
MSI MAG B660M MORTAR WIFI DDR4 12th Gen Micro-ATX Motherboard (China Version)
|
Check Stock | 25,390 | 4 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
1x Realtek® 8125BG 2.5Gbps LAN controller
USB
1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector 4x USB 2.0 ports on the back panel USB Hub-GL3590 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel USB Hub-GL850G 4x USB 2.0 ports available through internal connectors
HDMI
HDMI 2.1 Port
WiFi
The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2
Audio
Realtek® ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Slots
2x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIe 4.0 x16 PCI_E3 slot (From B660 Chipset) Supports PCIe 3.0 x4 1x PCIe 3.0 x1 slot
Memory
4x DDR4 memory slots, support up to 128GB 1 Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Chipset
Intel B660 Chipset
Graphics
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
Warranty
3 years
Dimension
Micro-ATX Form Factor
Multi-GPU
Supports 2-Way AMD® CrossFire™ Technology
Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Supported CPU
Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors Processor socket LGA1700
Supported Storage
4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset) 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel® Optane™ Memory
External I/O Ports
USB 2.0 Port DisplayPort 1.4 USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI 2.1 Port USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT
Internal I/O Ports
1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connector
Part ID: #CAN-01683
Last Updated: 1 month ago
