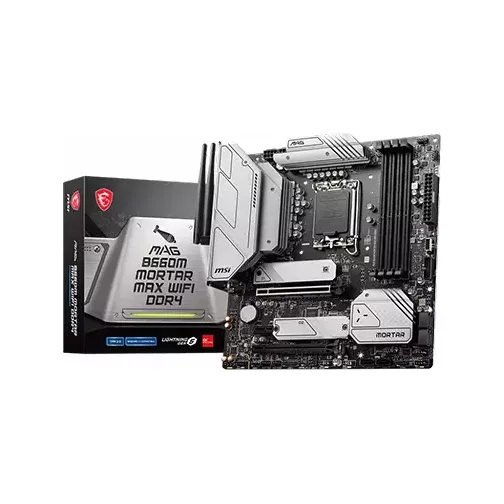

MSI MAG B660M MORTAR MAX WIFI DDR4 MOTHERBOARD

Status
Check Stores
2 stores
Lowest 25,500 BDT
Price Range Single price listing
MSI MAG B660M MORTAR MAX WIFI DDR4 MOTHERBOARD

Product Description

Unlock Unparalleled Performance with the MSI MAG B660M MORTAR MAX WIFI DDR4 Motherboard

Designed for gamers and PC enthusiasts, the MSI MAG B660M MORTAR MAX WIFI DDR4 Motherboard delivers exceptional performance and versatility, making it an ideal choice for building a powerful and compact system. With its Intel B660 chipset and support for 12th and 13th Gen Intel Core processors, this motherboard offers unparalleled processing capabilities and flexibility.

Key Features and Benefits

  • Supports up to 128GB of DDR4 memory for smooth multitasking and efficient data processing
  • Features Intel Wi-Fi 6 with MU-MIMO support for high-speed wireless connectivity
  • Includes 2.5G LAN port for fast and reliable wired networking
  • Equipped with HDMI 2.1 and DisplayPort 1.4 ports for high-quality video output
  • Offers extensive connectivity options, including USB 3.2 Gen2x2 Type-C, USB 3.2 Gen2 Type-A, and more

Advanced Cooling and Performance Technologies

The MSI MAG B660M MORTAR MAX WIFI DDR4 Motherboard boasts a premium thermal solution with an extended heatsink design and M.2 Shield Frozr, ensuring high-performance system operation and non-stop work. Additionally, the motherboard features Lightning M.2 for maximized performance on NVMe-based SSDs, and Lightning USB 20G for fast data transfer speeds.

Part ID: #CAN-01641 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
TechLand BD MSI MAG B660M MORTAR MAX WIFI DDR4 MOTHERBOARD
Check Stock 23,800 4 hours ago
Buy Now
PC House MSI MAG B660M MORTAR MAX WIFI DDR4 12th Gen Micro-ATX Motherboard
Check Stock 25,500 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

General Specifications

LAN 1x Realtek® 8125BG 2.5Gbps LAN controller
USB 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector 4x USB 2.0 ports on the back panel USB Hub-GL3590 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel USB Hub-GL850G 4x USB 2.0 ports available through internal connectors
HDMI HDMI 2.1 Port
WiFi The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz1 (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax
Audio Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Slots 2x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIe 5.0 x16 PCI_E3 slot (From B660 Chipset) Supports PCIe 3.0 x4 1x PCIe 3.0 x1 slot
Memory 4x DDR4 memory slots, support up to 128GB Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5333+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Chipset Intel B660 Chipset
Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
Warranty 3 years
Bluetooth Bluetooth 5.2
Dimension 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Multi-GPU Supports AMD CrossFire Technology
Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Supported CPU Supports 12th Gen Intel® Core, Pentium Gold and Celeron® processors Processor socket LGA1700
Supported Storage 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset) 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel® Optane Memory
External I/O Ports 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connector
Internal I/O Ports USB 2.0 Port DisplayPort 1.4 USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI 2.1 Port USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT
Part ID: #CAN-01641 Last Updated: 1 month ago
