Status
Check Stores
4 listings tracked
Lowest Deal
16,000
Best Deal
Price Range
16,000 to 21,500
Save 34%
Product Description
Engineered by MSI, this motherboard is featuring a **MICRO-ATX** form factor and supporting high-speed **DDR4** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **16,000 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01658
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Sell Tech

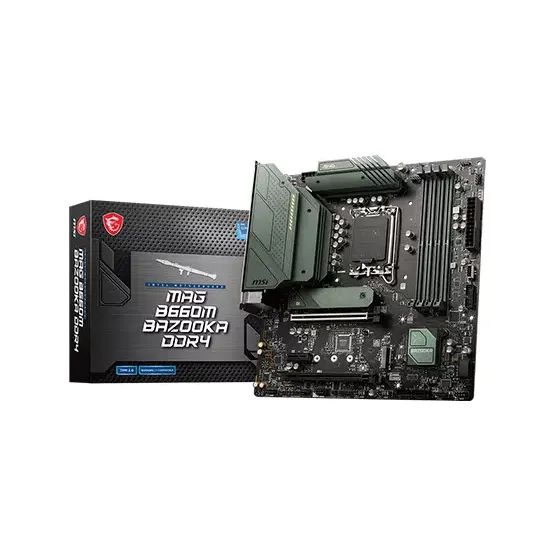

MSI MAG B660M BAZOOKA DDR4 12th Gen Micro-ATX Motherboard
|
Check Stock | Call for Price | 2 hours ago | |
|
Creatus Computer
MSI MAG B660M BAZOOKA DDR4 12th Gen Micro-ATX Motherboard
|
Check Stock | 16,000 | 2 hours ago | |
|
TechLand BD
MSI MAG B660M BAZOOKA DDR4 MICRO-ATX 12th Gen Intel MOTHERBOARD
|
Check Stock | 18,000 | 2 hours ago | |
|
PC House
MSI MAG B660M BAZOOKA DDR4 MICRO-ATX 12th Gen Intel MOTHERBOARD
|
Check Stock | 21,500 | 2 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
1x Realtek® 8125BG 2.5Gbps LAN controller
USB
Intel® B660 Chipset 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel 3x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 1 Type-C available through the internal connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors) Asmedia ASM1074 2x USB 3.2 Gen 1 5Gbps Type-A ports through the internal connector
Audio
Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Slots
2x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIe 4.0 x16 PCI_E3 slot (From B660 Chipset) Supports PCIe 3.0 x4 1x PCIe 3.0 x1 slot (From B660 chipset)
Memory
4x DDR4 memory slots, support up to 128GB Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Chipset
Intel B660 Chipset
Graphics
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
Warranty
3 years
Dimension
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Multi-GPU
Supports 2-Way AMD® CrossFire™ Technology
Form Factor
Micro-ATX Form Factor
Supported CPU
Supports 12th Gen Intel® Core™ Processors Processor socket LGA1700
Supported Storage
4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel® Optane™ Memory Supports Intel® Smart Response Technology for Intel Core™ processors
External I/O Ports
Keyboard / Mouse DisplayPort 2.5G LAN Audio Connectors USB 2.0 HDMI USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2 10Gbps Type-A
Internal I/O Ports
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Serial port 1x Tuning Controller connector
Part ID: #CAN-01658
Last Updated: 2 days ago
MSI MAG B660M BAZOOKA DDR4 12th Gen Micro-ATX Motherboard The MSI MAG B660M BAZOOKA DDR4 Motherboard (China Version) is compatible with LGA 1700 sockets and 12th generation Intel Core, Pentium Gold, and Celeron CPUs. Up to 4800+(OC), MHz DDR4 Memory is supported. The Premium Thermal Solution is included with this motherboard. For high-performance systems and continuous operation, it is outfitted with an expanded cooling design and an M.2 Shield Frozr. Additionally, this motherboard includes a 2.5G LAN, which supports upgraded network solutions for business and multimedia applications. provides a quick, reliable, and secure network connection. The MSI MAG B660M BAZOOKA DDR4 motherboard uses 12th Gen Intel CPUs and has the newest Lightning Gen 4 M.2, the industry's fastest onboard storage solution with up to 64 Gb/s transfer speed. This motherboard's Lightning M.2 technology enables PCIe Gen 4 operation and optimizes performance for NVMe-based SSDs. Additionally, it includes Steel armor PCIe slots and an integrated USB 3.2 Gen 2x2 connector with a 20Gbps transfer speed, which is 4X faster than USB 3.2 Gen 1. Has AMD Crossfire support. The 2.5Gbps LAN offers amazing data transfer speed in this case, outpacing a standard Gigabit LAN. This is a top-notch gaming solution. The latest MSI MAG B660M BAZOOKA DDR4 motherboard comes with 03 years of warranty.
