Product Description
Upgrade Your Gaming Experience

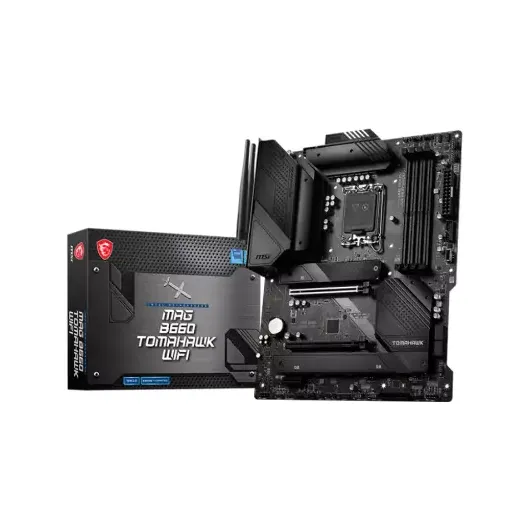

Designed for enthusiasts and gamers, the MSI MAG B660 TOMAHAWK WIFI DDR5 ATX Intel 12th Gen Motherboard is the perfect foundation for your next build. With its powerful features and sleek design, this motherboard delivers unparalleled performance and stability for demanding applications.
Key Features & Benefits
- Supports 12th Gen Intel Core processors and B660 chipset for exceptional performance and efficiency
- Four dual-channel RAM slots and three M.2 slots for maximum storage and expansion options
- Wireless connectivity via Wi-Fi 6E and Bluetooth 5.2, plus 2.5 Gigabit Ethernet for fast and reliable networking
- Load line calibration and overvoltage protection for stable CPU performance and safety
- Lightning Gen 4 M.2 storage solution with speeds up to 64 Gb/s
- Supports DDR5 memory with MSI Memory Boost technology for enhanced performance
Advanced Technologies
The MSI MAG B660 TOMAHAWK WIFI DDR5 ATX Intel 12th Gen Motherboard features several innovative technologies designed to enhance performance and user experience. With its fully digital power design, the motherboard delivers fast and undistorted current to the CPU, creating the perfect conditions for CPU overclocking. Additionally, the motherboard's advanced SMT (Surface Mount Technology) DDR5 memory slot welding process reduces defects and improves electromagnetism and interference.
Part ID: #CAN-01561
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Computer Village
MSI MAG B660 TOMAHAWK WIFI 12th Gen DDR5 ATX Motherboard
|
In Stock | 26,700 | 4 hours ago | |
|
TechLand BD
MSI MAG B660 TOMAHAWK WIFI DDR5 ATX INTEL 12TH GEN MOTHERBOARD
|
In Stock | 33,700 | 4 hours ago | |
|
Sell Tech
MSI MAG B660 TOMAHAWK WIFI DDR5 12th Gen ATX Motherboard
|
Check Stock | Call for Price | 4 hours ago | |
|
PC House
MSI MAG B660 TOMAHAWK WIFI DDR5 ATX INTEL 12TH GEN MOTHERBOARD
|
Check Stock | 29,400 | 4 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
1x Realtek® RTL8125B-CG 2.5Gbps LAN
USB
1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel) 5x USB 3.2 Gen 2 10Gbps ports (4 Type-A ports on the back panel, 1 Type-C available through the internal connector) 2x USB 3.2 Gen 1 5Gbps Type-A ports available through the internal connector 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors)
WiFi
The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2 2, FIPS, FISMA
Audio
Realtek® ALC1220P Codec 8 Channel (7.1) High Definition Audio Supports optical S/PDIF output
Slots
2x PCIe x16 slots PCI_E1 (From CPU) Support up to PCIe 4.0 PCI_E2 (From B660 chipset) Support up to PCIe 3.0 x4 1x PCIe 3.0 x1 slot (From B660 chipset)
Memory
DDR5- Supports 6200(OC)/ 6133(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(JEDEC) MHz Dual Channel, 4-DIMM Slots, Max Memory-128GB
Chipset
Intel B660 Chipset
Graphics
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
Warranty
3 years
Dimension
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Multi-GPU
Supports AMD® CrossFire Technology
Form Factor
ATX Form Factor
Supported CPU
Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
Supported Storage
6x SATA 6Gb/s ports SATA5~8 (From B660 chipset) SATAA~B (From ASM1061) 3x M.2 slots (Key M) M2_1 slot (From CPU) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 & M2_3 slots (From B660 chipset) M2_2 supports up to PCIe 4.0 x4 M2_3 supports up to PCIe 4.0 x2 1 Supports SATA up to 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel® Optane Memory Supports Intel® Smart Response Technology for Intel Core™ processors
External I/O Ports
USB 2.0 Port DisplayPort 1.4 2.5G LAN Por Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI 2.1 Port USB 3.2 Gen 2 10Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT
Internal I/O Ports
1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 5x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connector
Part ID: #CAN-01561
Last Updated: 1 month ago
