Status
In Stock
4 listings tracked
Lowest Deal
24,790
Best Deal
Price Range
24,790 to 24,800
Save 0%
Product Description

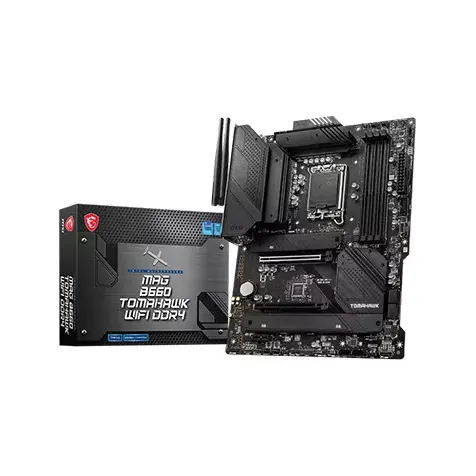

Engineered by MSI, this motherboard is built on the **B660** chipset, featuring a **ATX** form factor, and supporting high-speed **DDR4** memory, providing a reliable foundation for custom desktop systems. You can buy this component starting from **24,790 ৳**, compared dynamically across 4 major computer shops.
Part ID: #CAN-01684
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
PC House
MSI MAG B660 TOMAHAWK WIFI DDR4 ATX INTEL 12TH GEN MOTHERBOARD
|
In Stock | 24,790 | 2 hours ago | |
|
Computer Village
MSI MAG B660 Tomahawk WIFI DDR4 Motherboard
|
In Stock | 24,800 | 2 hours ago | |
|
Nexus Computer
MSI MAG B660 TOMAHAWK WIFI DDR4 12th Gen ATX Motherboard
|
In Stock | 24,800 | 2 hours ago | |
|
TechLand BD
MSI MAG B660 TOMAHAWK WIFI DDR4 ATX INTEL 12TH GEN MOTHERBOARD
|
Check Stock | 24,800 | 3 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
1x Realtek® RTL8125B-CG 2.5Gbps LAN controller
USB
1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel) 5x USB 3.2 Gen 2 10Gbps ports (4 Type-A ports on the back panel, 1 Type-C available through the internal connector) 2x USB 3.2 Gen 1 5Gbps Type-A ports available through the internal connector 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors)
HDMI
HDMI 2.1 Port
WiFi
The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2
Audio
Realtek® ALC1220P Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Slots
2x PCIe x16 slots PCI_E1 (From CPU) Support up to PCIe 4.0 PCI_E2 (From B660 chipset) Support up to PCIe 3.0 x4 1x PCIe 3.0 x1 slot (From B660 chipset)
Memory
4x DDR4 memory slots, support up to 128GB 1 Supports 1R 2133 / 2666 / 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Chipset
Intel B660 Chipset
Graphics
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
Warranty
3 years
Dimension
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Multi-GPU
Supports AMD® CrossFire™ Technology
Form Factor
ATX Form Factor
Supported CPU
Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors 1 Processor socket LGA1700
Supported Storage
6x SATA 6Gb/s ports SATA5~8 (From B660 chipset) SATAA~B (From ASM1061) 3x M.2 slots (Key M) M2_1 slot (From CPU) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 & M2_3 slots (From B660 chipset) M2_2 supports up to PCIe 4.0 x4 M2_3 supports up to PCIe 4.0 x2 1 Supports SATA up to 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Supports Intel® Smart Response Technology for Intel Core™ processors
External I/O Ports
USB 2.0 Port DisplayPort 1.4 2.5G LAN Por Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI 2.1 Port USB 3.2 Gen 2 10Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT
Internal I/O Ports
1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 5x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connector
Part ID: #CAN-01684
Last Updated: 2 days ago
MSI MAG B660 TOMAHAWK WIFI DDR4 ATX INTEL 12TH GEN MOTHERBOARDMSI MAG B660 TOMAHAWK WIFI DDR4 12th Gen ATX Motherboard Supports with 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket, DDR4 Memory, up to 4800+(OC) MHz. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards. Here, Utilizing 12th Gen Intel processors. This MSI MAG B660 TOMAHAWK WIFI DDR4 motherboard has Premium Thermal Solution, so that Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works. With the 2.5G LAN and Intel Wi-Fi Solution, it helps to Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. This MSI MAG B660 TOMAHAWK WIFI DDR4 motherboard also comes with Running at PCIe Gen 4 maximizes performance for NVMe based SSDs. Here, Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.Supports Intel Core 12th Gen ProcessorsThe MAG B660 TOMAHAWK WIFI DDR4 motherboard supports 12th Gen Intel Core, Pentium Gold, and Celeron processors.VRM CoolingFeatures an extended heatsink and 7W/mK thermal pads.SSD CoolingM.2 Shield Frozr prevents thermal throttling.SYSTEM CoolingConnect and synchronise cooling with strategically placed pin-headers – including a dedicated pump-fan header.Fortified PCI-E 4.0 X16MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimised by steel armor design and server grade PCB, you can enjoy next-gen devices without any compromise.Gen4 M.2 ConnectorMSI B660 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.4 X DDR4 DUAL-Channel MemoryA fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB tested and can be easily enabled with auto power settings for optimised memory speed and stability.Features:Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socketSupports DDR4 Memory, up to 4800+(OC) MHzPremium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connectionLightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDsLightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experienceMulti-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™MSI MAG B660 TOMAHAWK WIFI DDR4 ATX INTEL 12TH GEN MOTHERBOARD Review:
