Product Description

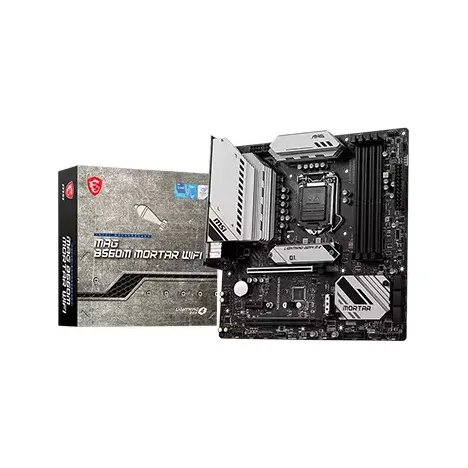

Upgrade Your Build with the MSI MAG B560M MORTAR WIFI
Powerful performance and seamless connectivity are within your reach with the MSI MAG B560M MORTAR WIFI motherboard. Designed to meet the demands of serious gamers, content creators, and PC enthusiasts, this Micro ATX motherboard is engineered to deliver exceptional speed, reliability, and versatility.
Key Features and Benefits
- Supports 10th and 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors (socket LGA1200)
- MSI Lightning Gen 4 PCI-E for faster data transfer speeds up to 64GB/s
- 2.5G LAN and Intel Wi-Fi 6E Solution for secure, stable, and fast network connections
- 2x PCIe x16 slots and support for up to PCIe 4.0
- Supports DDR4 memory with speeds up to 5066+ MHz
- 2x M.2 slots for high-speed storage and Intel Optane Memory Ready
The MSI MAG B560M MORTAR WIFI motherboard features several proprietary technologies that enhance its performance and reliability. These include MSI AI ENGINE, which detects CPU and GPU temperatures and automatically adjusts fan duty to optimal values. Additionally, the motherboard's 2.5G LAN provides faster data transfer speeds than general Gigabit LAN, while the Intel Wi-Fi 6E Solution supports 6GHz spectrum, Bluetooth 5.2, and two-way MU-MIMO for fast and reliable wireless connectivity.
Part ID: #CAN-01723
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Computer Village
MSI MAG B560M MORTAR WIFI 10th and 11th Gen Micro ATX Motherboard
|
In Stock | 17,400 | 5 hours ago | |
|
Sell Tech
MSI MAG B560M MORTAR WIFI 10th and 11th Gen Micro ATX Motherboard
|
Check Stock | Call for Price | 5 hours ago | |
|
Creatus Computer
MSI MAG B560M MORTAR WIFI 10th and 11th Gen Micro ATX Motherboard
|
Check Stock | 15,600 | 5 hours ago | |
|
PC House
MSI MAG B560M MORTAR WIFI 10th and 11th Gen Micro ATX Motherboard
|
Check Stock | 17,100 | 4 hours ago | |
|
TechLand BD
MSI MAG B560M MORTAR WIFI 10th and 11th Gen Micro ATX Motherboard
|
Check Stock | 20,000 | 5 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
1x Realtek RTL8125B 2.5Gbps LAN controller
USB
Intel® B560 Chipset 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel) 1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector) 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 connector 4x USB 2.0 ports on the back panel USB Hubs ASM1074 3x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel Hub-GL850G 4x USB 2.0 ports are available through the internal USB 2.0 connectors
HDMI
1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
WiFi
Intel WiFi 6E AX210 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.21/2, FIPS, FISMA
Audio
Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Slots
2x PCIe x16 slots Support x16/ x4 PCI_E1 (from CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPU PCI_E3 (From B560 chipset)1 Support up to PCIe 3.0 1x PCIe 3.0 x1 slot PCI_E2 (From B560 chipset)
Memory
4 x DDR4 memory slots, support up to 128GB 1 Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066+ MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Chipset
Intel B560 Chipset
Warranty
03 Years Warranty
Multi-GPU
Supports 2-way AMD CrossFire Technology
Form Factor
M-ATX
Supported CPU
Supports 10th, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors for LGA1200 socket
Supported Storage
6x SATA 6Gb/s ports (from B560 chipset) 2x M.2 slots (Key M) M2_1 slot Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU (From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset)1 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B560 chipset) Supports up to PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors
External I/O Ports
USB 2.0 DisplayPort USB 3.2 Gen 1 5Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI USB 3.2 Gen 2x2 20Gbps Type-C USB 3.2 Gen 1 5Gbps Type-A Optical S/PDIF OUT
Internal I/O Ports
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x Tuning Controller Connector 1x TBT connector (Supports RTD3)
Part ID: #CAN-01723
Last Updated: 1 month ago
