Product Description

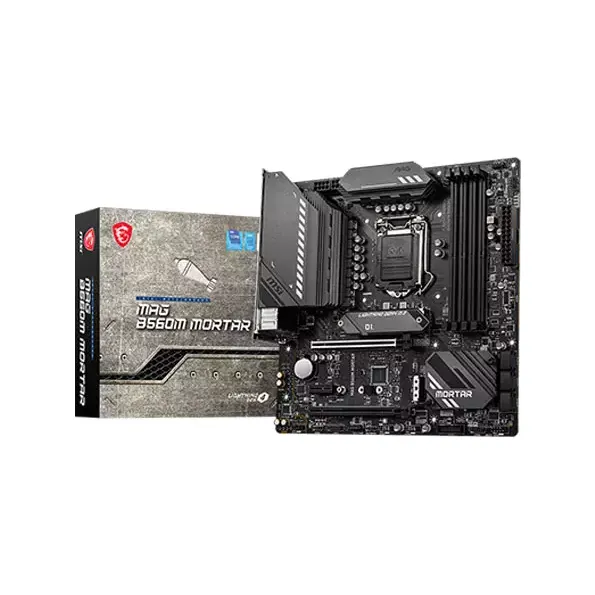

Unleash Your Gaming Potential with the MSI MAG B560M MORTAR
The MSI MAG B560M MORTAR is designed for ambitious gamers and PC enthusiasts who demand exceptional performance, reliability, and innovative features. This cutting-edge motherboard is built to deliver unparalleled speed, power, and customization options for 10th and 11th Gen Intel Core Processors.
Key Features and Benefits
- Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors (LGA1200 socket)
- PCIe 4.0 support for blistering data transfer speeds and backward compatibility with older specifications
- 4 x DIMM slots supporting up to 128GB of DDR4 memory with speeds up to 5066+ MHz
- 2 x M.2 slots supporting PCIe 4.0 and PCIe 3.0 for next-gen storage devices and SSDs
- Realtek RTL8125B 2.5Gbps LAN controller and Intel B560 Chipset for seamless connectivity
- 7.1-Channel High Definition Audio with S/PDIF output and Realtek ALC897 Codec
MSI's Innovative Technologies
The MSI MAG B560M MORTAR boasts several proprietary technologies that enhance performance, cooling, and customization. The motherboard features an enhanced PCB design with 2oz thickened copper, increasing conductivity and heat dissipation for improved performance reliability during overclocking. Additionally, the motherboard supports MSI's unique features, including a 3-year manufacturing warranty for peace of mind.
Part ID: #CAN-01744
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Nexus Computer
MSI MAG B560M MORTAR Motherboard
|
In Stock | 16,300 | 3 hours ago | |
|
Computer Village
MSI MAG B560M MORTAR 10th and 11th Gen Micro ATX Motherboard
|
In Stock | 17,400 | 4 hours ago | |
|
Sell Tech
MSI MAG B560M MORTAR 10th and 11th Gen Micro ATX Motherboard
|
Check Stock | Call for Price | 4 hours ago | |
|
Creatus Computer
MSI MAG B560M MORTAR 10th and 11th Gen Micro ATX Motherboard
|
Check Stock | 10,800 | 4 hours ago | |
|
TechLand BD
MSI MAG B560M MORTAR 10th and 11th Gen Micro ATX Motherboard
|
Check Stock | 12,800 | 4 hours ago | |
|
PC House
MSI MAG B560M MORTAR 10th and 11th Gen Micro ATX Motherboard
|
Check Stock | 16,400 | 4 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
1x Realtek RTL8125B 2.5Gbps LAN controller
USB
Intel B560 Chipset: 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel) 1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector) 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 connector 4x USB 2.0 ports on the back panel USB Hubs ASM1074: 3x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel Hub-GL850G: 4x USB 2.0 ports are available through the internal USB 2.0 connectors
HDMI
1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
Audio
7.1-Channel High Definition Audio
Slots
2x PCIe x16 slots Support x16/ x4 -PCI E1 (from CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU -PCI E3 (From B560 chipset) Support up to PCIe 3.0 1x PCIe 3.0 x1 slot PCI E2 (From B560 chipset) PCI E3 will be unavailable when installing M.2 SSD in M2 2 slot. However, if you want to use both of them simultaneously, you can set x1 for PCI E3 and set x2 for M2 2 in BIOS. M.2 Socket 2x M.2 slots (Key M)
Memory
Type DDR4 Slots 4 x DIMM slots Supported Memory Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066+ MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) Maximum Mamory Up to 128GB
Chipset
Intel B560 Chipset
Warranty
03 Years Warranty
Form Factor
M-ATX
Supported CPU
Supports 10th, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors for LGA1200 socket
Supported Storage
6x SATA 6Gb/s ports (from B560 chipset) 2x M.2 slots (Key M) -M2 slot 1: Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU (From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset) Supports 2242/ 2260/ 2280 storage devices -M2 slot 2 (From B560 chipset): Supports up to PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
Internal I/O Ports
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x Tuning Controller Connector 1x TBT connector (Supports RTD3)
