Status
Check Stores
4 listings tracked
Lowest Deal
15,300
Best Deal
Price Range
15,300 to 16,000
Save 5%
Product Description

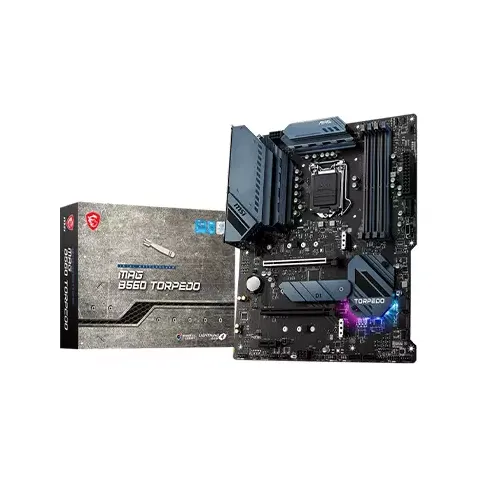

Engineered by MSI, this motherboard is designed for **LGA1200** socket processors, featuring a **ATX** form factor, and supporting high-speed **DDR4** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **15,300 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01721
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Sell Tech
MSI MAG B560 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard
|
Check Stock | Call for Price | 3 hours ago | |
|
Nexus Computer
MSI MAG B560 TORPEDO 10th Gen and 11th Gen ATX Motherboard
|
Check Stock | Call for Price | 2 hours ago | |
|
TechLand BD
MSI MAG B560 TORPEDO 10th and 11th Gen ATX Motherboard
|
Check Stock | 15,300 | 3 hours ago | |
|
PC House
MSI MAG B560 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard
|
Check Stock | 16,000 | 2 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek RTL8125B 2.5Gbps LAN controller Intel I219V 1Gbps LAN controller
USB
Intel® B560 Chipset 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel) 1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 Type-A ports available through the internal connector) 4x USB 2.0 ports on the back panelG Hub-GL850G 4x USB 2.0 ports available through the internal connectors
HDMI
1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
Audio
Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Slots
2x PCIe x16 slots PCI_E1 (from CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPU PCI_E2 (from B560 chipset) Support up to PCIe 3.0 x4 1x PCIe 3.0 x1 slot (from B560 chipset)
Memory
4x DDR4 memory slots, support up to 128GB 1 Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066 MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Chipset
Intel B560 Chipset
Warranty
03 Years Warranty
Form Factor
ATX
Supported CPU
Supports 10th, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors for LGA1200 socket
Supported Storage
6x SATA 6Gb/s ports (from B560 chipset) 3x M.2 slots (Key M) M2_1 slot (from CPU) Available only on 11th Gen Intel CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_21 slot (from B560 chipset) Supports up to PCIe 3.0 x4 Supports SATA up to 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_3 slot (from B560 chipset) Supports up to PCIe 3.0 x4 Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors
External I/O Ports
USB 2.0 DisplayPort 2.5G LAN Port Gigabit LAN Port HD Audio Connectors HDMI USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT
Internal I/O Ports
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 5x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connector
Part ID: #CAN-01721
Last Updated: 2 days ago
MSI MAG B560 TORPEDO Intel 10th Gen and 11th Gen ATX MotherboardMSI MAG B560 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard features high-bandwidth and low-latency 2.5G plus Gigabit LAN for power users. This Motherboard has Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency. It is Utilizing 11th Gen Intel processors, MSI B560 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. MSI MAG B560 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket, DDR4 Memory, up to 5066(OC) MHz. This Motherboard has Premium Thermal Solution, that Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works and also it's Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs. This Motherboard has Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag and also Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C. It's Audio Boost, Reward your ears with studio grade sound quality with Multi-GPU With Steel armor PCIe slots. Supports 2-Way AMD Crossfire. The latest MSI MAG B560 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard has 03 years warranty.
