Product Description

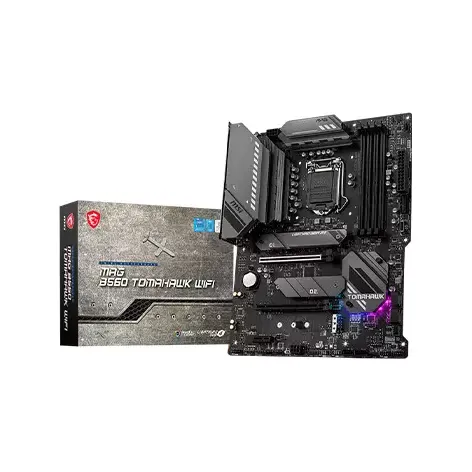

Unlock Unmatched Performance with the MSI MAG B560 TOMAHAWK WIFI Motherboard
Designed for enthusiasts and professionals, the MSI MAG B560 TOMAHAWK WIFI motherboard is engineered to deliver exceptional performance, cutting-edge features, and seamless connectivity. With its robust design and high-quality components, this motherboard is the perfect choice for building a powerful gaming PC, content creation station, or high-performance workstation.
Technical Specifications and Features
- Supports 10th Gen and 11th Gen Intel Core processors, Pentium Gold, and Celeron processors for LGA 1200 socket
- Up to 128GB of DDR4 memory with speeds of up to 5066 MHz (overclocked)
- Lightning M.2: PCIe Gen4 x4 for maximum performance with NVMe-based SSDs
- 2.5G LAN and Intel Wi-Fi 6E solution for upgraded network connectivity
- 7.1-channel high-definition audio and S/PDIF output for immersive audio experiences
- 3x M.2 slots with PCIe 4.0 and SATA 6Gb/s for flexible storage options
Exclusive MSI Technologies
The MSI MAG B560 TOMAHAWK WIFI motherboard features exclusive technologies that enhance performance, cooling, and user experience. The motherboard's premium thermal solution includes an extended heatsink design and M.2 Shield Frozr for optimal heat dissipation. Additionally, the motherboard's 2.5G LAN and Intel Wi-Fi 6E solution provide lightning-fast networking speeds and reliable connectivity for professional and multimedia use.
Part ID: #CAN-01724
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Computer Village
MSI MAG B560 Tomahawk WiFi Intel 10th Gen and 11th Gen ATX Motherboard
|
In Stock | 19,500 | 5 hours ago | |
|
Creatus Computer
MSI MAG B560 Tomahawk WiFi Intel 10th Gen and 11th Gen ATX Motherboard
|
Check Stock | Call for Price | 5 hours ago | |
|
Nexus Computer
MSI MAG B560 Tomahawk WiFi Motherboard
|
Check Stock | Call for Price | 4 hours ago | |
|
TechLand BD
MSI MAG B560 TOMAHAWK WIFI 10th and 11th Gen ATX Motherboard
|
Check Stock | 15,800 | 5 hours ago | |
|
PC House
MSI MAG B560 Tomahawk WiFi Intel 10th Gen and 11th Gen ATX Motherboard
|
Check Stock | 19,900 | 4 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
1x Realtek RTL8125B 2.5Gbps LAN controller
USB
Intel B560 Chipset 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel) 1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 Type-A ports available through the internal connector) 4x USB 2.0 ports on the back panel Hub-GL850G 4x USB 2.0 ports available through the internal connectors
HDMI
1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
WiFi
Intel Wi-Fi 6E AX210 The Wireless module is pre-installed in the M.2 [Key-E] slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1(160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.22, FIPS, FISMA
Audio
7.1-Channel Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output definition Audio
Slots
2x PCIe x16 slots PCI_E1 (from CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel ® CPU PCI_E2 (from B560 chipset) Support up to PCIe 3.0 x4 1x PCIe 3.0 x1 slot (from B560 chipset)
Memory
4 x DDR4 memory slots, support up to 128GB 1 Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066 MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Chipset
Intel B560 Chipset
Warranty
03 Years Warranty
Form Factor
ATX
Supported CPU
Supports 10th, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors for LGA1200 socket
Supported Storage
6x SATA 6Gb/s ports (from B560 chipset) 3x M.2 slots (Key M) M2_1 slot (from CPU) Available only on 11th Gen Intel CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_21 slot (from B560 chipset) Supports up to PCIe 3.0 x4 Supports SATA up to 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_3 slot (from B560 chipset) Supports up to PCIe 3.0 x4 Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors
External I/O Ports
USB 2.0 DisplayPort 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT
Internal I/O Ports
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 1x 6-pin PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 5x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connector
Part ID: #CAN-01724
Last Updated: 1 month ago
