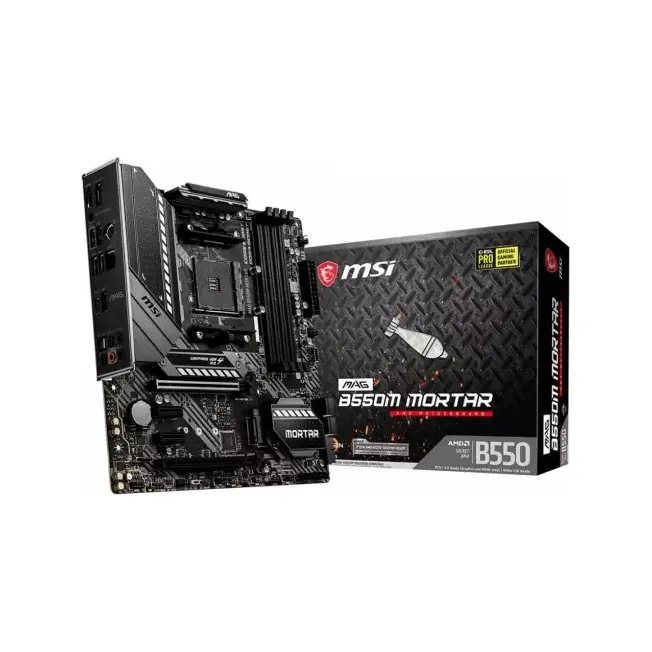

prose p { text-align: justify; } MSI MAG B550M MORTAR MOTHERBOARDCPUSupports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS updateCHIPSETAMD B550 ChipsetMEMORY4x DDR4 memory slots, support up to 128GB 1Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDECSupports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE1DPC 1R max speed 4400 MHZ1DPC 2R max speed 3733 MHZ2DPC 1R max speed 3866 MHZ2DPC 2R max speed 3466 MHZDual channel memory architectureSupports non-ECC UDIMM memorySupports ECC UDIMM memory (non-ECC mode)Supports un-buffered memoryEXPANSION SLOT1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) 11x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode 22x PCIe 3.0 x1 slotsONBOARD GRAPHICSSupports 2-Way AMD CrossFire™ Technology1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 11x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1Maximum shared memory of 16GBSTORAGEAMD B550 Chipset6x SATA 6Gb/s ports2x M.2 slots (Key M)M2_1 slot (from AMD processor)Supports PCIe 4.0/ 3.0 x4 1Supports SATA 6Gb/sSupports 2242/ 2260/ 2280 storage devicesM2_2 slot (from AMD B550 chipset)Supports PCIe 3.0x4Supports 2242/ 2260/ 2280 storage devicesUSBAMD B550 Chipset3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)AMD Processor2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panelAUDIO and LAN7.1-Channel High Definition AudioSupports S/PDIF output1x Realtek® RTL8125B 2.5Gbps LAN controllerINTERNAL CONNECTORS1x 24-pin ATX main power connector1x 8-pin ATX 12V power connector6x SATA 6Gb/s connectors2x M.2 slots (M-Key)1x USB 3.2 Gen 1 5Gbps Type-C port1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)1x 4-pin CPU fan connector1x 4-pin water-pump fan connector3x 4-pin system fan connectors1x Front panel audio connector2x System panel connectors1x Chassis Intrusion connector1x 4-pin RGB LED connector2x 3-pin RAINBOW LED connectors1xTPM module connector1x Clear CMOS jumperBACK PANEL PORTSDisplayPortPS/2 Combo Port2.5G LAN PortUSB 3.2 Gen 2 10Gbps (Type-A)HD Audio ConnectorsHDMI PortFlash BIOS ButtonUSB 2.0 portUSB 3.2 Gen 1 5Gbps (Type-A)USB 3.2 Gen 2 10Gbps (Type-C)Optical S/PDIF OUTMSI MAG B550M MORTAR MOTHERBOARD Comes with 03 years warrantyMSI MAG B550M MORTAR MOTHERBOARD Overview:The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.MSI MAG B550M MORTAR MOTHERBOARD Features:Support for 3rd Gen AMD Ryzen™ Processors and future AMD Ryzen™ processors with BIOS updateSupports DDR4 Memory, up to 4400+(OC) MHzLightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.Enhanced Power Design: 8+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.2.5G LAN with LAN Manager: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.Pre-installed I/O Shielding: Better EMI protection and more convenience for installation.Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.Multi-GPU: With Steel Armor PCI-E slots. Supports 2-Way AMD Crossfire™[product_table id="34" limit="10" type="filter" filter_category="7271"]
