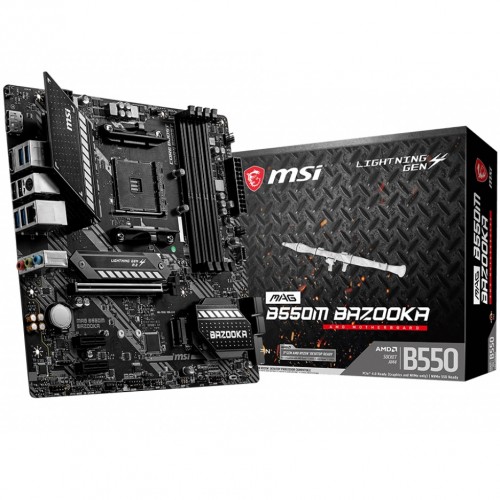

MSI MAG B550M BAZOOKA AM4 Micro ATX AMD Motherboard

Status
In Stock
2 stores
Lowest 13,500 BDT
Price Range Single price listing
MSI MAG B550M BAZOOKA AM4 Micro ATX AMD Motherboard

Product Description

Unleash the Power of Your AMD System with the MSI MAG B550M BAZOOKA Motherboard

Designed for entry-level gamers and enthusiasts, the MSI MAG B550M BAZOOKA motherboard offers a perfect blend of performance, quality, and value, making it an ideal choice for those looking to upgrade or build their AMD system. With its robust feature set and reliable performance, this motherboard ensures seamless gaming and productivity experiences.

Key Features:

  • Supports AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
  • 4 x DDR4 memory slots with support for up to 4400 MHz
  • 2x M.2 slots, including one from the AMD processor and one from the AMD B550 chipset
  • Realtek ALC892 Codec 7.1-Channel High Definition Audio
  • 1x HDMI port with a maximum resolution of 4096x2160 @24Hz, and 1x DisplayPort with a maximum resolution of 4096x2160 @60Hz
  • Realtek RTL8111HN 1Gbps LAN controller

Advanced Technologies:

MSI's Innovative Cooling and Performance Solutions

The MSI MAG B550M BAZOOKA motherboard boasts advanced cooling and performance features, including the M.2 Shield Frozr, which provides thermal protection for your SSDs and ensures maximum performance. Additionally, the motherboard features Total Fan Control, allowing you to manage fan speeds and temperatures for a seamless gaming experience. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed.

Part ID: #CAN-09501 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Computer Village MSI MAG B550M BAZOOKA AM4 Micro ATX AMD Motherboard
In Stock 13,500 4 hours ago
PC House MSI MAG B550M BAZOOKA AM4 Micro ATX AMD Motherboard
In Stock 13,500 4 hours ago

Historical Pricing Trend

Product Specifications

BASIC INFORMATION

Supported CPU AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Form Factor Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

Basic Information

Chipset AMD B550 Chipset
Audio Realtek ALC892 Codec 7.1-Channel High Definition Audio

Memory

Slots 4 x DDR4 memory slots
Memory Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZ Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory

Graphics

Graphics 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz

Connector & Ports

HDMI 1x HDMI port, maximum resolution of 4096x2160 @24Hz
LAN 1x Realtek RTL8111HN 1Gbps LAN controller
Supported Storage AMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
Internal I/O Ports 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper

WARRANTY INFORMATION

Warranty 03 Years Warranty
Part ID: #CAN-09501 Last Updated: 1 month ago
